72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) LIFT LEVER AND HEIGHT OF CUT Parts Diagram

Lawn & Garden Tractor

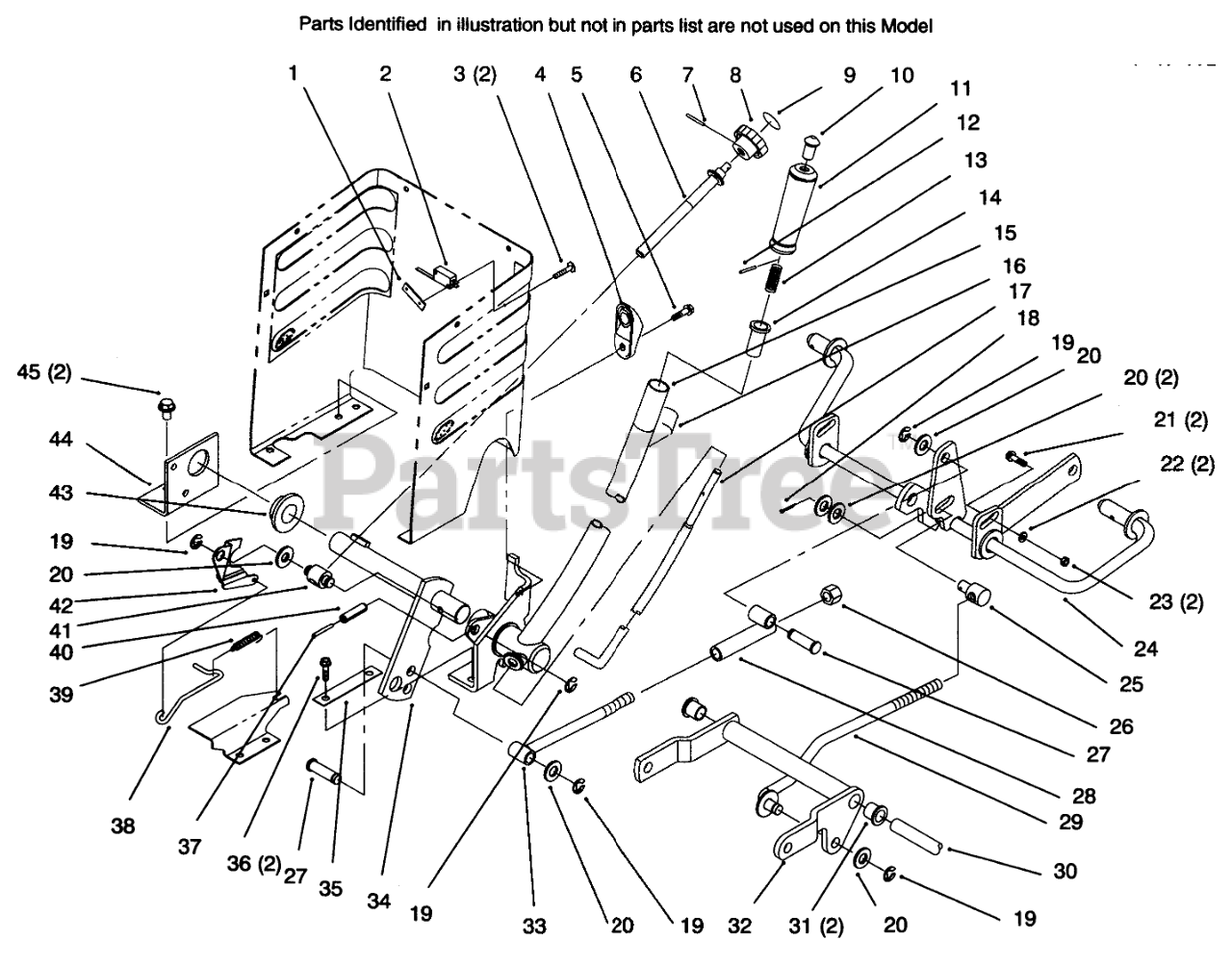

LIFT LEVER AND HEIGHT OF CUT Parts Diagram

  • Title
1

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

2

Toro 88-9930

SWITCH-MICRO

$35.99

$

In Stock, only 1 left!

0

3

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

4

Toro 92-6794

WEDGE - HOC

$

$

Not available

5

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 92-6965

ROD - HOC

$

$

Not available

7

Toro 933141

PIN-SPIROL

$1.99

$

Usually ships in 3-6 days

0

8

$10.99

$

Usually ships in 3-6 days

0

9

Toro 78-9740

DECAL-HEIGHT KNOB

$

$

Not available

10

Toro 92-6711

TIP-ROD

$

$

Not available

11

Toro 92-6710

GRIP-HANDLE

$11.99

$

Usually ships in 3-6 days

0

12

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 3 left!

0

13

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

14

Toro 8130

RETAINER-SPRING

$19.99

$

Usually ships in 3-6 days

0

15

Toro 94-3761-03

LEVER-LIFT

$

$

Not available

16

Toro 112168

DECAL-LIFT

$9.49

$

Usually ships in 3-6 days

0

17

Toro 92-6977-03

ROD-LEVER, LIFT

$131.99

$

Usually ships in 3-6 days

0

18

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

19

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

20

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 79-3401-03

SHAFT-GAGE

$310.99

$

Usually ships in 3-6 days

0

25

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

26

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

27

$17.99

$

Usually ships in 3-6 days

0

28

$

$

Not available

29

$100.99

$

Usually ships in 3-6 days

0

30

Toro 94-4944

SHAFT-PIVOT, PEDAL

$

$

Not available

31

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 3 left!

0

32

Toro 92-6855-03

ARM-PIVOT

$163.99

$

Usually ships in 3-6 days

0

33

$

$

Not available

34

Toro 94-3552-03

SHAFT-LIFT

$

$

Not available

35

$

$

Not available

36

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

37

Toro 32121-103

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

38

Toro 92-6978

ROD - HOC INDICATOR

$

$

Not available

39

Toro 92-7007

SPRING - EXTENSION

$10.99

$

Usually ships in 3-6 days

0

40

Toro 32121-25

PIN-ROLL

$4.49

$

Usually ships in 3-6 days

0

41

Toro 78-2140

TRUNNION

$

$

Not available

42

Toro 92-6979

PLATE - HOC GAGE

$

$

Not available

43

Toro 106269

BEARING-FLANGE

$8.99

$

Usually ships in 3-6 days

0

44

Toro 93-0523-03

BRACKET-PIVOT, LINKAGE

$

$

Not available

45

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
