72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) IGNITION/ELECTRICAL Parts Diagram

Lawn & Garden Tractor

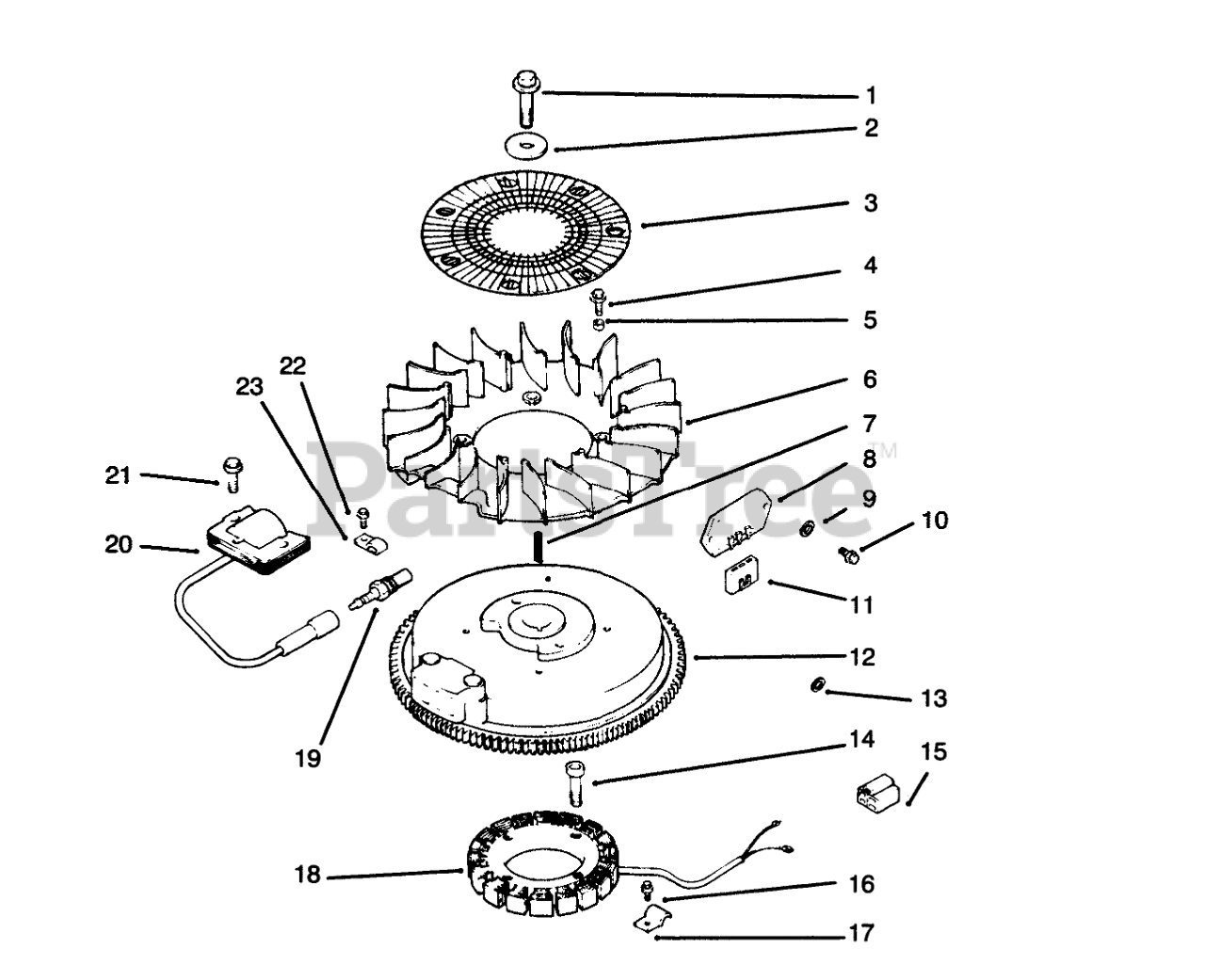

IGNITION/ELECTRICAL Parts Diagram

  • Title

1

12_086_14

Screw

$

$

Not available

2

Toro 12_468_03

Washer

$

$

Currently unavailable

3

24_162_03

Screen-Grass

$

$

Not available

4

Kohler M-0639016

Screw
(Superseded to M-639016)

$2.49

$

Usually ships in 2-5 days

0

5

12_112_01

Spacer-Fan

$

$

Not available

6

12_157_02

Fan

$

$

Not available

7

Kohler X-42-15

Key
(Superseded to X-42-15-S)

$2.99

$

In Stock, Qty 9

0

8

Toro 41_403_09

Rectifier-Regulator

$

$

Currently unavailable

9

Kohler X-22-11

Washer
(Superseded to X-22-11-S)

$2.49

$

In Stock, only 3 left!

0

10

Kohler M-0639016

Screw
(Superseded to M-639016)

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 236602

Connector
(Superseded to 236602-S)

$7.99

$

In Stock, only 1 left!

0

12

12_025_16

Flywheel ASM

$

$

Not available

13

Kohler X-25-5

Washer
(Superseded to X-25-5-S)

$2.49

$

Usually ships in 2-5 days

0

14

Kohler M-0548025

Screw
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

15

48_155_01

Connector

$

$

Not available

16

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

17

12_154_02

Clip

$

$

Not available

18

Toro 24_085_01

Stator-15 amp

$

$

Currently unavailable

19

12_132_02

Spark Plug

$

$

Not available

20

Toro 12_584_01

Module-Ignition

$

$

Currently unavailable

21

Kohler SM-0545020

Screw
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

22

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

23

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

Toro 12_518_01

Lead-White

Note: Not illustrated

$

$

Currently unavailable

Toro 25_518_05

Lead-Black

Note: Not illustrated

$

$

Currently unavailable

25_518_29

Lead-Black

Note: Not illustrated

$

$

Not available
