72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) FUEL SYSTEM Parts Diagram

Lawn & Garden Tractor

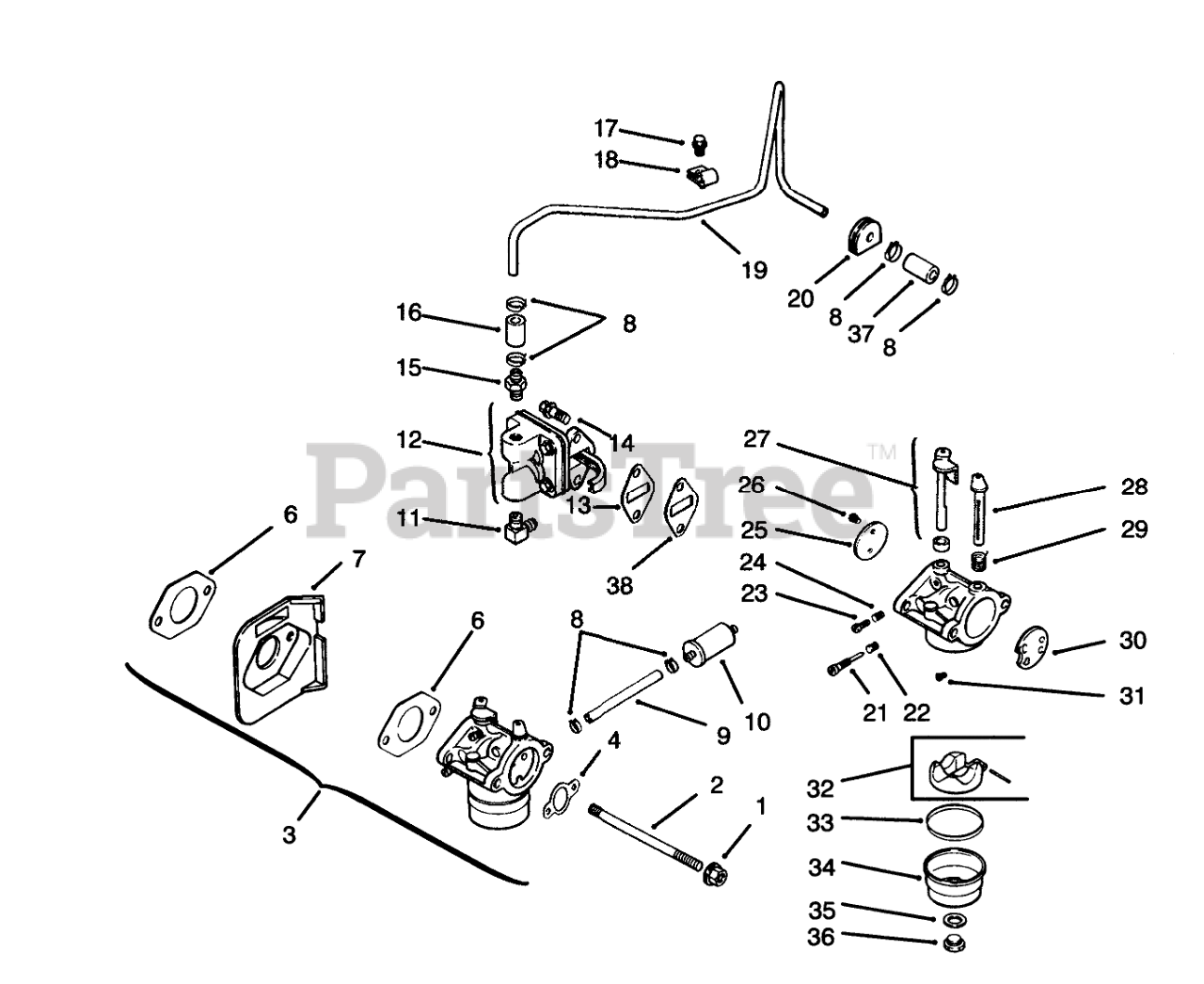

FUEL SYSTEM Parts Diagram

  • Title

1

Kohler SM-0641060

Nut

$

$

Not available

2

Kohler M-0629122

Stud
(Superseded to M-629122)

$5.99

$

Usually ships in 2-5 days

0

3

Kit-Carburator W/Gasket Incl 4-6

$

$

Not available

4

12_041_02

Gasket

Note: Included in a service kit or in an assembly

$

$

Not available

5

12_053_57

Carurator ASM Incl 21-36

Note: Included in a service kit or in an assembly

$

$

Not available

6

12_041_01

Gasket

Note: Included in a service kit or in an assembly

$

$

Not available

7

12_265_04

Deflector-Heat

$

$

Not available

8

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

9

12_353_10

Line-Fuel

$

$

Not available

10

Toro 25_050_02

Filter-Fuel

$

$

Currently unavailable

11

25_155_02

Connector-90deg.

$

$

Not available

12

Toro 12_559_01

Kit-Pump INC 13-14

$

$

Currently unavailable

13

Toro 25_041_09

Gasket-Fuel Pump

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

14

Kohler M-0645020

Screw
(Superseded to M-645020)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, only 1 left!

0

15

Kohler X-380-1

Connector
(Superseded to X-380-1-S)

$3.99

$

In Stock, only 1 left!

0

16

Toro 12_353_01

Line-Fuel 1.25 Inch

$

$

Currently unavailable

17

Kohler SM-0545010

Screw

$

$

Not available

18

12_154_01

Clamp-Fuel Line

$

$

Not available

19

12_123_19

Line-Fuel

$

$

Not available

20

12_313_01

Grommet

$

$

Not available

21

Toro 12_368_05

Needle-Idle Fuel Adjust

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

22

12_089_09

Spring-Idle

Note: Included in a service kit or in an assembly

$

$

Not available

23

12_086_04

Screw-Idle

Note: Included in a service kit or in an assembly

$

$

Not available

24

12_089_09

Spring-Idle

Note: Included in a service kit or in an assembly

$

$

Not available

25

12_146_03

Plate-Throttle

Note: Included in a service kit or in an assembly

$

$

Not available

26

Toro 25_086_27

Screw-Throttle Plate

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

27

12_144_09

Shaft-Throttle

Note: Included in a service kit or in an assembly

$

$

Not available

28

12_144_08

Shaft-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

29

12_089_10

Spring

Note: Included in a service kit or in an assembly

$

$

Not available

30

12_146_02

Plate-Choke

Note: Included in a service kit or in an assembly

$

$

Not available

31

Toro 12_337_03

Jet-Main

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

32

Toro 12_757_02

Kit-Float

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

33

12_041_05

Gasket-Bowl

Note: Included in a service kit or in an assembly

$

$

Not available

34

12_104_01

Bowl

Note: Included in a service kit or in an assembly

$

$

Not available

35

12_041_06

Gasket

Note: Included in a service kit or in an assembly

$

$

Not available

36

12_086_05

Screw-Bowl

Note: Included in a service kit or in an assembly

$

$

Not available

37

25_353_02

Line-Fuel

$

$

Not available

38

12_112_05

Spacer-Fuel Pump

$

$

Not available

12_041_01

Gasket

Note: Not illustrated

$

$

Not available

Toro 12_757_01

Kit-Carburetor Repair

Note: Not illustrated

$

$

Currently unavailable
