72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) FRAME Parts Diagram

Lawn & Garden Tractor

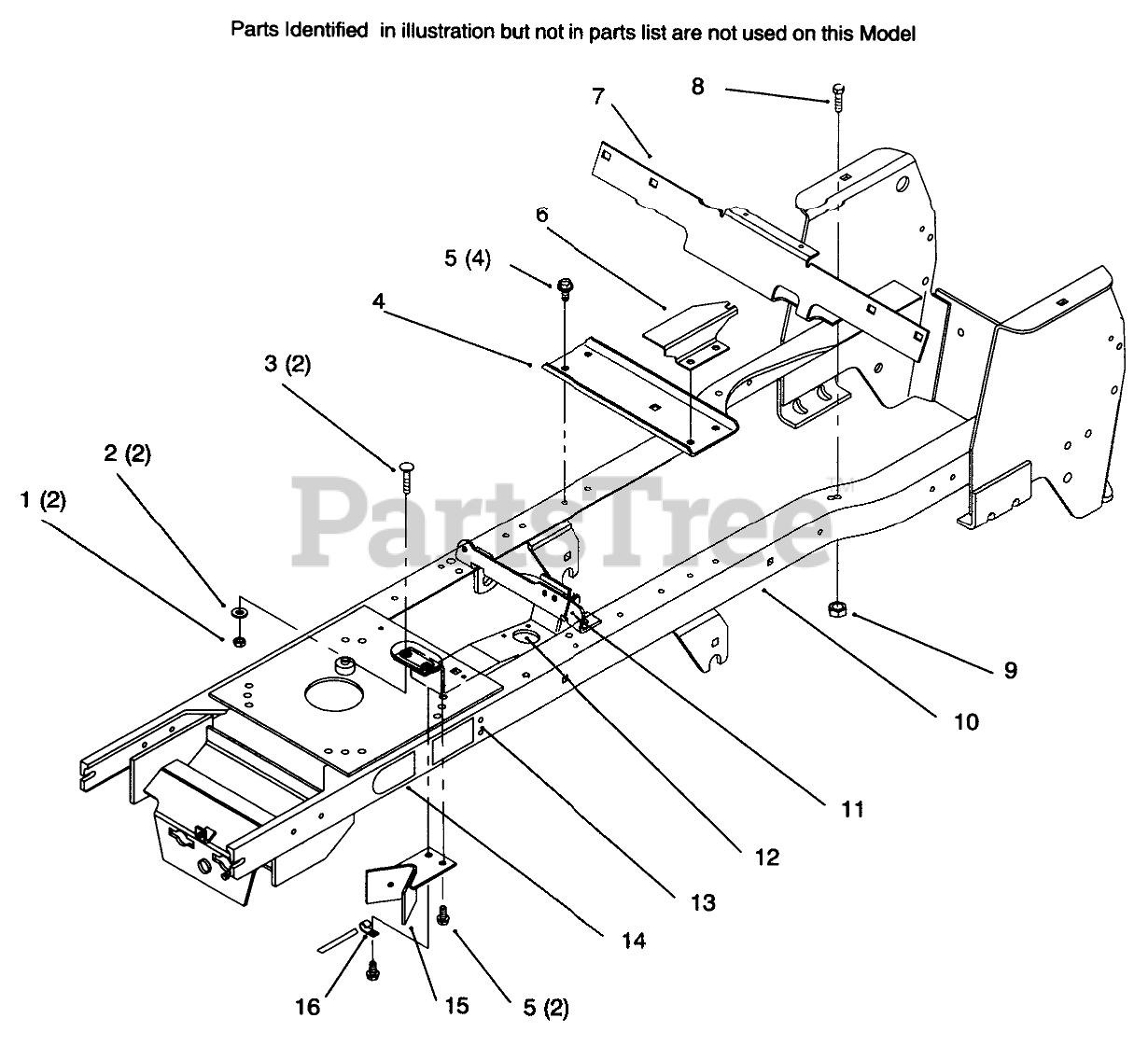

FRAME Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

4

Toro 92-6868-03

BRACKET-IDLER PLATE

$38.99

$

Usually ships in 3-6 days

0

5

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

6

Toro 92-6964-03

BRACKET-HOC GAGE

$

$

Not available

7

Toro 92-6674-03

SUPPORT - FENDER
(Superseded to 100-1341-03)

$

$

Not available

10

Toro 94-2668

Frame
(Superseded to 99-6772-03)

$1496.99

$

Usually ships in 3-6 days

0

11

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

12

Toro 92-6992-03

STEERING BRKT WA

$

$

Not available

14

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0

15

Toro 78-2491-03

WLDMT-PTO STOP

$46.99

$

Usually ships in 3-6 days

0

16

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0
