72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) CYLINDER HEAD/VALVE/BREATHER Parts Diagram

Lawn & Garden Tractor

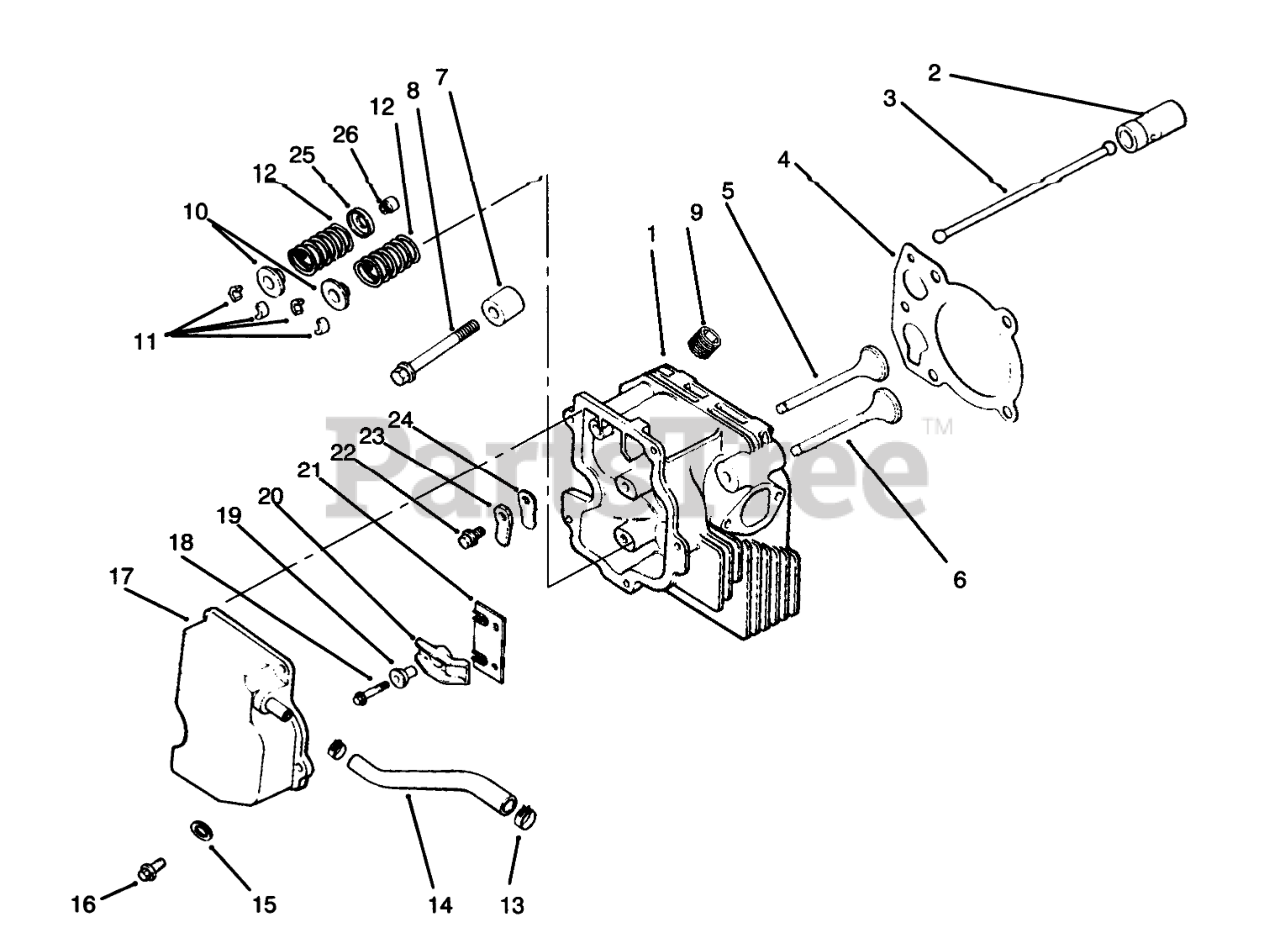

CYLINDER HEAD/VALVE/BREATHER Parts Diagram

  • Title

1

12_318_09

Cylinder Head

$

$

Not available

2

Toro 12_351_01

Lifter-Valve

$

$

Currently unavailable

3

Toro 12_411_01

Rod-Push

$

$

Currently unavailable

4

12_041_08

Gasket-Cylinder Head

$

$

Not available

5

12_017_01

Valve-Intake STD

$

$

Not available

5

12_017_02

Valve-Intake .25

$

$

Not available

6

12_016_01

Valve-Exhaust STD

$

$

Not available

6

12_016_02

Valve-Exhaust .25

$

$

Not available

7

12_112_13

Spacer

$

$

Not available

8

12_086_15

Screw

$

$

Not available

9

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

10

Toro 12_173_01

Cap-Valve Spring

$

$

Currently unavailable

11

Toro 12_755_03

Kit-Retainer

$

$

Currently unavailable

12

12_089_01

Pulley

$

$

Not available

13

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 2 left!

0

14

12_326_03

Hose-Breather

$

$

Not available

15

12_468_05

Washer

$

$

Not available

16

Kohler SM-0645020

Screw
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

17

12_096_07

Cover-Valve

$

$

Not available

18

Kohler M-0640034

Screw

$

$

Not available

19

Toro 24_194_01

Ball-Rocker Pivot

$

$

Currently unavailable

20

Toro 24_186_01

Arm-Rocker

$

$

Currently unavailable

21

12_146_13

Plate-Guide

$

$

Not available

22

Kohler M-0545010

Screw
(Superseded to M-545010)

$4.49

$

In Stock, only 3 left!

0

23

12_018_01

Retainer-Reed

$

$

Not available

24

24_402_02

Reed-Breather

$

$

Not available

25

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, only 2 left!

0

26

Toro 24_032_05

Seal-Valve Stem

$

$

Currently unavailable

Toro 12_755_60

Kit-Cylinder Head Incl 1-6 & 18-21

Note: Not illustrated

$

$

Currently unavailable
