72045 (265-6) - Toro Lawn & Garden Tractor (SN: 069000001 - 069999999) (1996) AIR INTAKE/FILTRATION Parts Diagram

Lawn & Garden Tractor

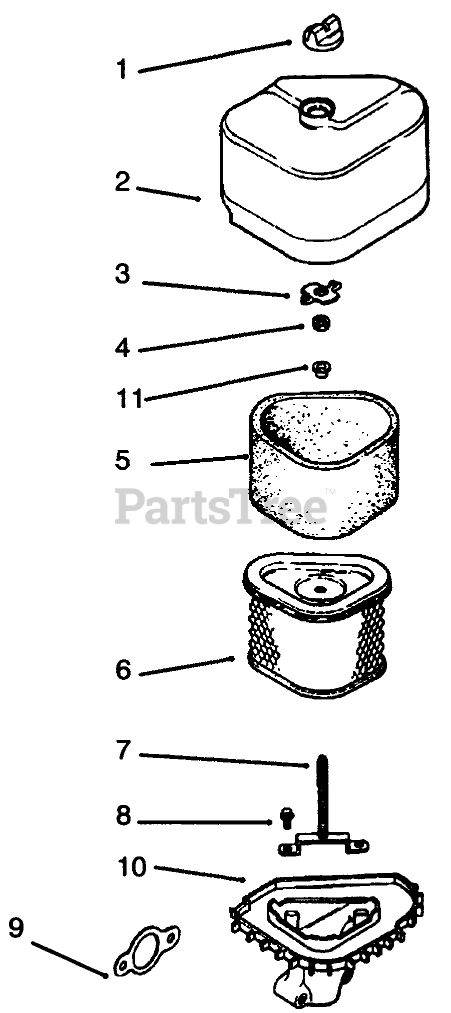

AIR INTAKE/FILTRATION Parts Diagram

  • Title
1

Toro 12_341_02

Knob-Air Cleaner Cover

$

$

Currently unavailable

2

12_096_24

Cover-Air Cleaner

$

$

Not available

3

12_100_01

Nut-Wing

$

$

Not available

4

Toro X-25-63

Washer

$

$

Currently unavailable

5

12_083_05

Element-Air Cleaner

$

$

Not available

6

12_083_08

Element-Precleaner

$

$

Not available

7

12_072_05

Stud-Mounting Plate

$

$

Not available

8

12_086-01

Screw-Mounting Plate

$

$

Not available

9

12_041_02

Gasket

$

$

Not available

10

12_094_05

Base-Air Cleaner Incl 7

$

$

Not available

11

12_313_04

Grommet

$

$

Not available

12_113_04

Decal

Note: Not illustrated

$

$

Not available

12_743_04

Kit-Air Cleaner Incl 1-11

Note: Not illustrated

$

$

Not available
