72043 (264-H) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) HYDRO DRIVE COMPONENTS Parts Diagram

Yard Tractor

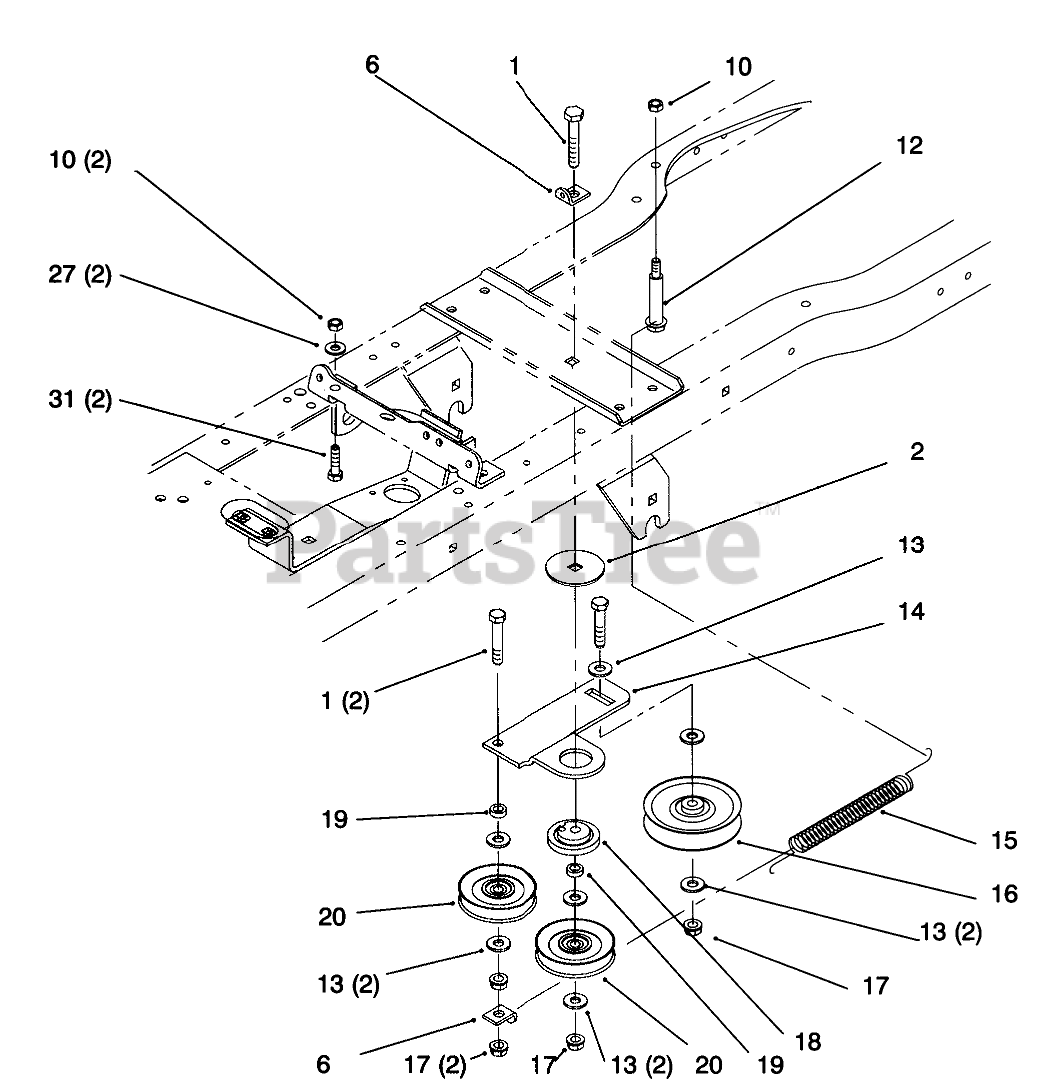

HYDRO DRIVE COMPONENTS Parts Diagram

  • Title

1

Toro 323-10

Screw-HH (Only On: 72043, 72063, 72103)

$0.99

$

In Stock, Qty 20+

0

2

Toro 111419

Washer-Bearing (Only On: 72043, 72063, 72103)

$

$

Not available

6

Toro 2534

Clip-Spring (Only On: 72043, 72063, 72103)

$4.99

$

In Stock, only 2 left!

0

10

Toro 3296-29

Nut-Lock (Only On: 72043, 72063, 72103)

$2.49

$

In Stock, Qty 20+

0

12

Toro 88-4590

Bolt-Shoulder (Only On: 72043, 72063, 72103)

$11.99

$

In Stock, only 1 left!

0

13

Toro 3256-24

Washer-Flat (Only On: 72043, 72063, 72103)

$0.99

$

In Stock, Qty 20+

0

14

Toro 92-6900

Arm-Idler (Only On: 72043, 72063, 72103)

$

$

Not available

15

Toro 79-7530

Spring-Extension (Only On: 72043, 72063, 72103)

$37.99

$

Usually ships in 3-6 days

0

16

Toro 92-7101

Pulley-Flat (Only On: 72043, 72063, 72103)

$34.99

$

Usually ships in 3-6 days

0

17

Toro 3296-59

Nut-Lock (Only On: 72043, 72063, 72103)
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

18

Toro 111418

Bushing (Only On: 72043, 72063, 72103)

$32.99

$

Usually ships in 3-6 days

0

19

Toro 93-3658

Spacer (Only On: 72043, 72063, 72103)

$9.99

$

Usually ships in 3-6 days

0

20

Toro 92-7102

Pulley-Idler (Only On: 72043, 72063, 72103)

$71.99

$

In Stock, only 1 left!

0

27

Toro 3256-23

Washer-Flat (Only On: 72043, 72063, 72103)

$2.49

$

In Stock, Qty 20+

0

31

Toro 322-5

Screw-HH (Only On: 72043, 72063, 72103)

$0.99

$

In Stock, Qty 20+

0
