72043 (264-H) - Toro Yard Tractor (SN: 059001476 - 059999999) (1995) DASH Parts Diagram

Yard Tractor

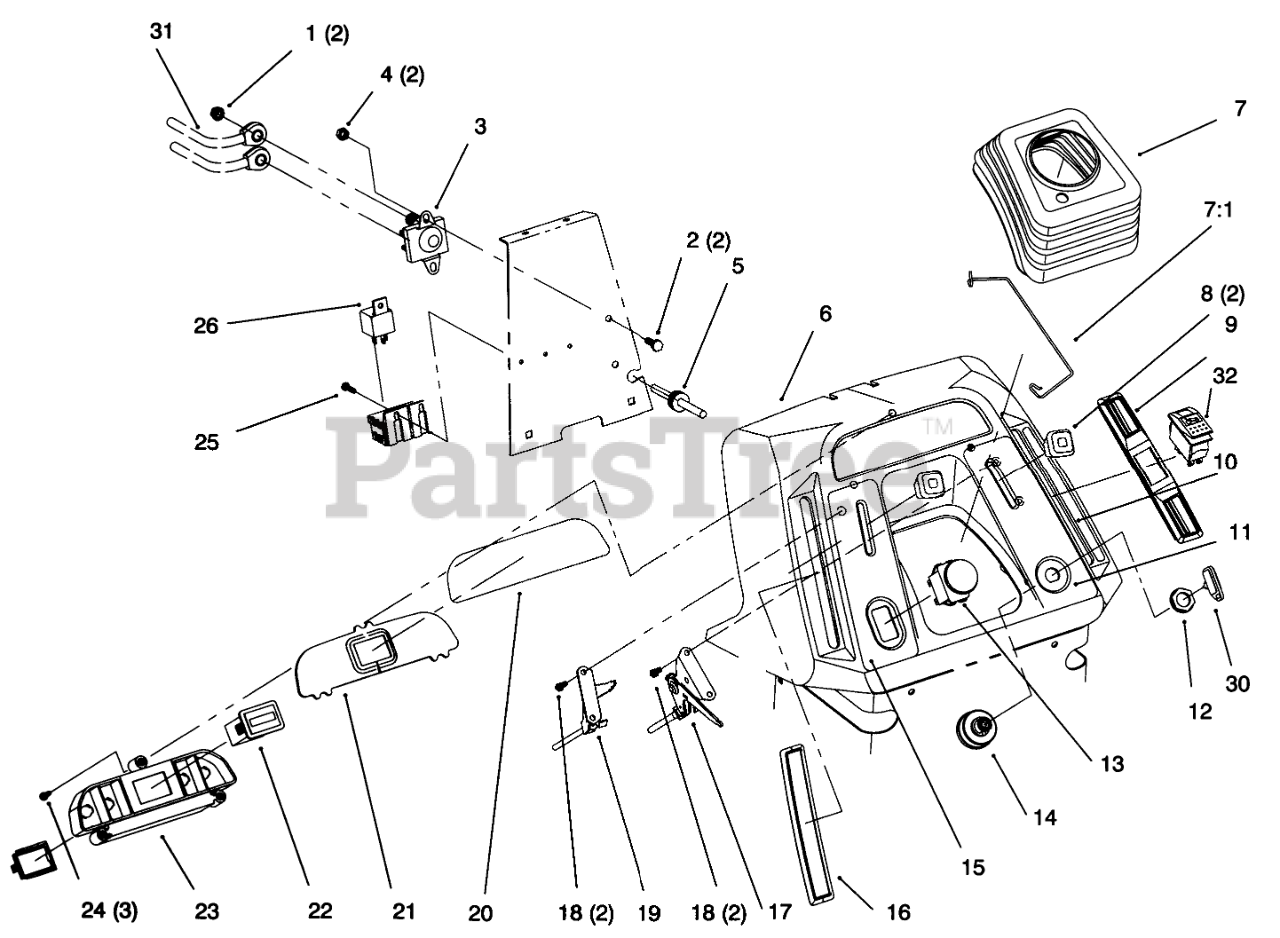

DASH Parts Diagram

  • Title

1

Toro 32149-2

Nut-Hex Lock (Only On: 72042, 72043, 72062, 72063)

$2.99

$

In Stock, Qty 20+

0

2

Toro 321-4

Screw-HH (Only On: 72042, 72043, 72062, 72063)

$1.49

$

In Stock, Qty 20+

0

3

Toro 92-9845

Solenoid (Only On: 72042, 72043, 72062, 72063)
(Superseded to 740207)

$34.99

$

In Stock, only 4 left!

0

4

Toro 3296-42

Nut-Lock (Only On: 72042, 72043, 72062, 72063)

$0.99

$

In Stock, Qty 20+

0

5

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 14

0

6

Toro 92-6510

Dash (Only On: 72042, 72062)
(Superseded to 94-1895)

$

$

Not available

6

Toro 93-0519

Dash (Only On: 72043, 72063, 72103)

$

$

Not available

7

Toro 92-6680

BOOT-STEERING

$

$

Not available

7:1

Toro 94-2966

CLIP-BOOT

$

$

Not available

8

Toro 66-0120

KNOB

$5.99

$

In Stock, only 2 left!

0

9

Toro 92-6796

Cover-Slot RH (Only On: 72043, 72063)

$

$

Not available

9

Toro 93-0533

Cover-Cruise (Only On: 72103)

$

$

Not available

10

Toro 92-6722

Decal-Shift (Only On: 72042, 72062)

$

$

Not available

11

Toro 92-6721

Decal-Throttle/Ignition (Only On: 72042, 72043)

$12.99

$

Usually ships in 3-6 days

0

11

Toro 92-7087

Decal-Throttle/Ignition (Only On: 72062, 72063, 72103)
(Superseded to 93-7255)

$28.99

$

Usually ships in 3-6 days

0

12

Toro 700919

NUT

$5.99

$

In Stock, only 2 left!

0

13

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 1 left!

0

14

Toro 92-6785

SWITCH-IGNITION

$86.99

$

In Stock, only 1 left!

0

15

Toro 92-6720

Decal-Choke/PTO (Only On: 72042, 72043)
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

15

Toro 92-7086

Decal-PTO/Choke (Only On: 72062, 72063, 72103)

$

$

Not available

16

Toro 92-6797

COVER-SLOT, LH

$

$

Not available

17

Toro 92-6782

Control-Throttle (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

17

Toro 92-6784

Control-Throttle (Only On: 72103)

$125.99

$

Usually ships in 3-6 days

0

18

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

19

Toro 92-6781

Control-Choke (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

19

Toro 92-6783

Control-Choke (Only On: 72103)

$

$

Not available

20

Toro 92-6973

Decal-Dash Lens (Only On: 72043, 72103)
(Superseded to 94-1248)

$

$

Not available

20

Toro 92-6975

Decal-Dash Lens (Only On: 72042, 72062, 72063)

$

$

Not available

21

Toro 92-6705

LENS-DASH

$

$

Not available

22

Toro 92-6715

Hourmeter
(Superseded to 94-4208)

$69.99

$

In Stock, only 1 left!

0

23

Toro 92-6709

Light-Indicator (Only On: 72043, 72103)

$

$

Not available

23

Toro 92-6732

Housing-lndicator Light (Only On: 72042, 72062, 72063)

$29.99

$

Usually ships in 3-6 days

0

24

Toro 32104-118

SCREW-PPH

$

$

Not available

25

Toro 32144-8

Screw-PPH (Only On: 72103)

$6.99

$

Usually ships in 3-6 days

0

26

Toro 116397

Relay (Only On: 72103)

$40.99

$

In Stock, only 1 left!

0

30

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

31

Toro 92-6989

Cable-Battery Red (Only On: 72042, 72043, 72062, 72063)

$27.99

$

Usually ships in 3-6 days

0

32

Toro 93-0527

Switch-Cruise (Only On: 72103)

$139.99

$

Usually ships in 3-6 days

0
