72043 (264-H) - Toro Yard Tractor (SN: 059000001 - 059001475) (1995) CRANKCASE (KOHLER ENGINE CV14S-PS1472) Parts Diagram

Yard Tractor

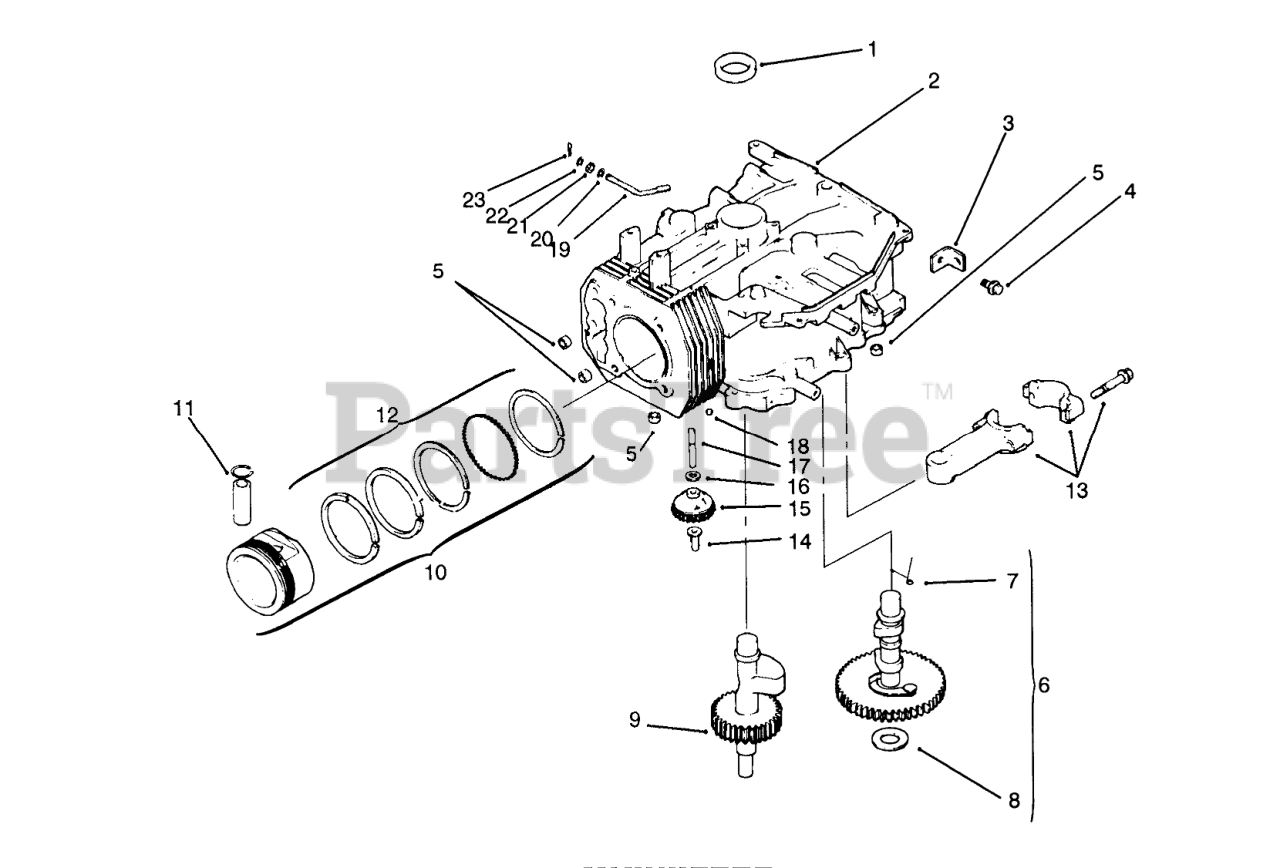

CRANKCASE (KOHLER ENGINE CV14S-PS1472) Parts Diagram

  • Title

1

12_032_03

Seal-Crankshaft (Only On: 72042,72043,72062,72063)

$

$

Not available

2

Toro 12_522_01

Block-Short (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable

3

Toro 12_445_02

Strap-Lifting (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

4

Kohler M-0839025

Screw M8x1.25x22 (Only On: 72042,72043,72062,72063)
(Superseded to M-839025)

$2.49

$

Usually ships in 2-5 days

0

5

Toro 12_380_03

Dowel-Locating (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

6

12_755_49

Kit-Camshaft INCL 7-8 (Only On: 72042,72043,72062,72063)

$

$

Not available

7

12_089_18

Spring-Actuating (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

Toro 12_422_07

Shim-Camshaft A/R (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

8

Toro 12_422_08

Shim-Camshaft A/R (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_09

Shim-Camshaft A/R (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_10

Shim-Camshaft A/R (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_11

Shim-Camshaft A/R (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_12

Shim-Camshaft A/R (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

8

Toro 12_422_13

Shim-Camshaft A/R (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

9

12_144_19

Shaft-Balance (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

10

12_874_01

Piston ASM STD INCL 11-12 (Only On: 72042,72043,72062, 72063)

$

$

Not available

10

Toro 12_874_02

Piston ASM .25 INCL 11-12 (Only On: 72042,72043,72062, 72063)

$

$

Currently unavailable

10

12_874_03

Piston ASM .50 INCL 11-12 (Only On: 72042,72043,72062, 72063)

$

$

Not available

11

12_018_02

Retainer-Piston Pin (Only On: 72042, 72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Not available

12

12_108_01

Ring Set STD (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Not available

12

12_108_02

Ring Set .25 (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Not available

12

12_108_03

Ring Set .50 (Only On: 72042,72043,72062,72063)

Note: Included in a service kit or in an assembly

$

$

Not available

13

12_067_01

Connecting Rod STD (Only On: 72042,72043,72062,72063)

$

$

Not available

13

12_067_02

Connecting Rod .25 (Only On: 72042,72043,72062,72063)

$

$

Not available

14

Toro 12_380_01

Pin-Governor Regulating (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

15

12_043_05

Gear-Governor ASM (Only On: 72042,72043,72062,72063)

$

$

Not available

16

Kohler SM-0631005

Washer-Governor (Only On: 72042,72043,72062,72063)

$

$

Not available

17

12_144_02

Shaft-Governor Gear (Only On: 72042,72043,72062,72063)

$

$

Not available

18

Toro 52_139_09

Plug-Cup (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

19

12_144_01

Shaft-Governor Cross (Only On: 72042,72043,72062,72063)

$

$

Not available

20

Kohler SM-0631015

Washer-Governor Shaft (Only On: 72042,72043,72062,72063)

$

$

Not available

21

12_032_01

Seal-Governor Shaft (Only On: 72042,72043,72062,72063)

$

$

Not available

22

Kohler X-25-102

Washer-Flat (Only On: 72042,72043,72062,72063)
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0

23

Toro 12_380_04

Pin-Governor Hitch (Only On: 72042,72043,72062,72063)

$

$

Currently unavailable

12_722_01

Gasket Set (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Not available
