72043 (264-H) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) RANGE SHIFT Parts Diagram

Yard Tractor

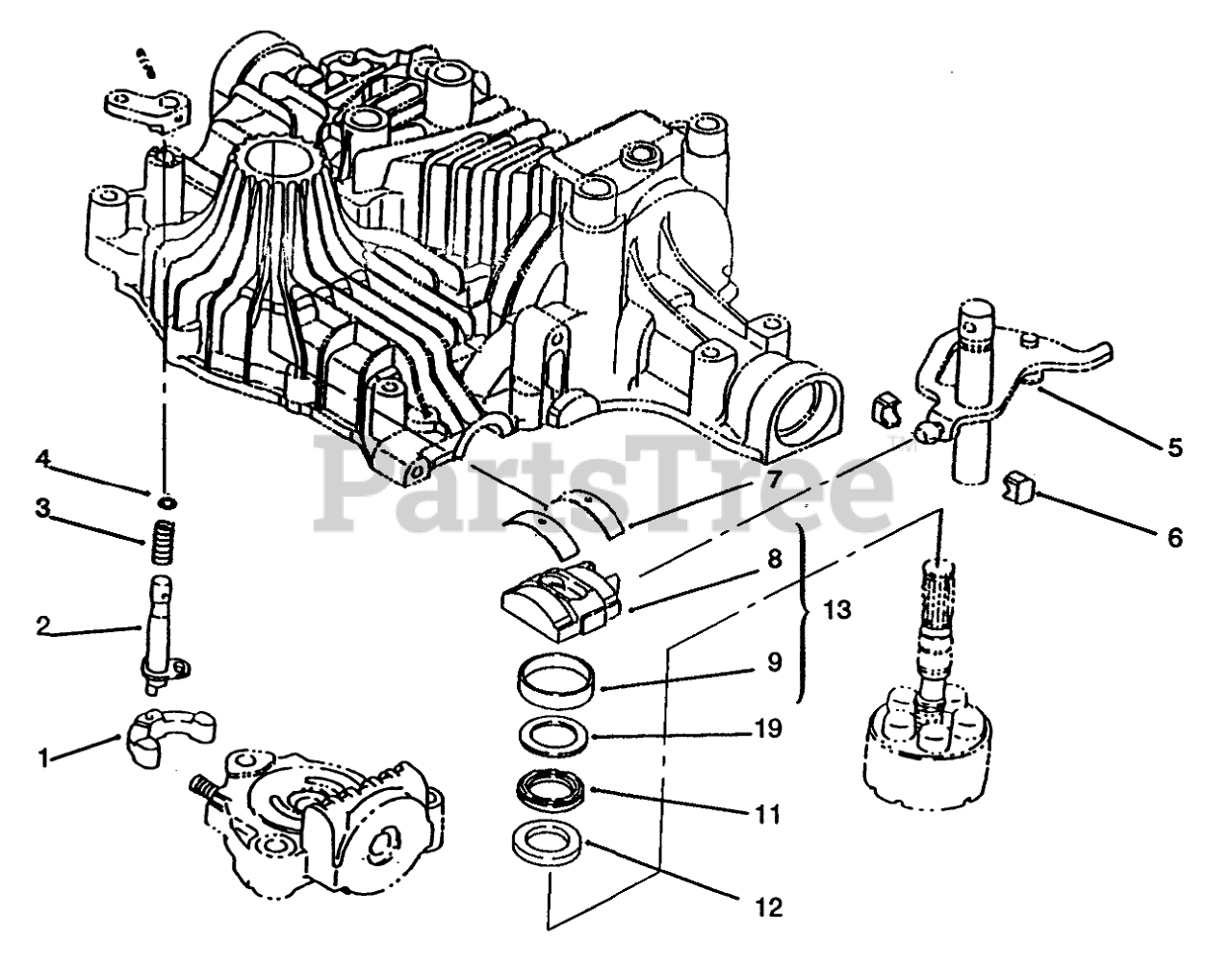

RANGE SHIFT Parts Diagram

  • Title
1

Toro 93-0395

Arm (Only On: 72083, 72043, 72103, 72063)

$68.99

$

Usually ships in 3-6 days

0

2

Toro 93-0397

Shaft-Bypass (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

3

Toro 93-0396

Spring (Only On: 72083, 72043, 72103, 72063)

$11.99

$

Usually ships in 3-6 days

0

4

Toro 93-0400

Packing (Only On: 72083, 72043, 72103, 72063)

$6.99

$

In Stock, only 1 left!

0

5

Toro 93-0398

Block Set INC 6 (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

6

Block-Shift (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

7

Toro 93-0388

Thrust Metal (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

8

Plate-Swash (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

9

Bushing-Swashplate (Only On: 72083, 72043, 72103, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

10

Toro 93-0394

Plate-Thrust (Only On: 72083, 72043, 72103, 72063)

$121.99

$

Usually ships in 3-6 days

0

11

Toro 93-0392

Bearing (Only On: 72083, 72043, 72103, 72063)

$

$

Not available

12

Toro 93-0393

Plate-Thrust (Only On: 72083, 72043, 72103, 72063)

$151.99

$

Usually ships in 3-6 days

0

13

Toro 93-0389

Swash Plate INC 8-9 (Only On: 72083, 72043, 72103, 72063)

$

$

Not available
