72042 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) HOODSTAND AND FIREWALL Parts Diagram

Yard Tractor

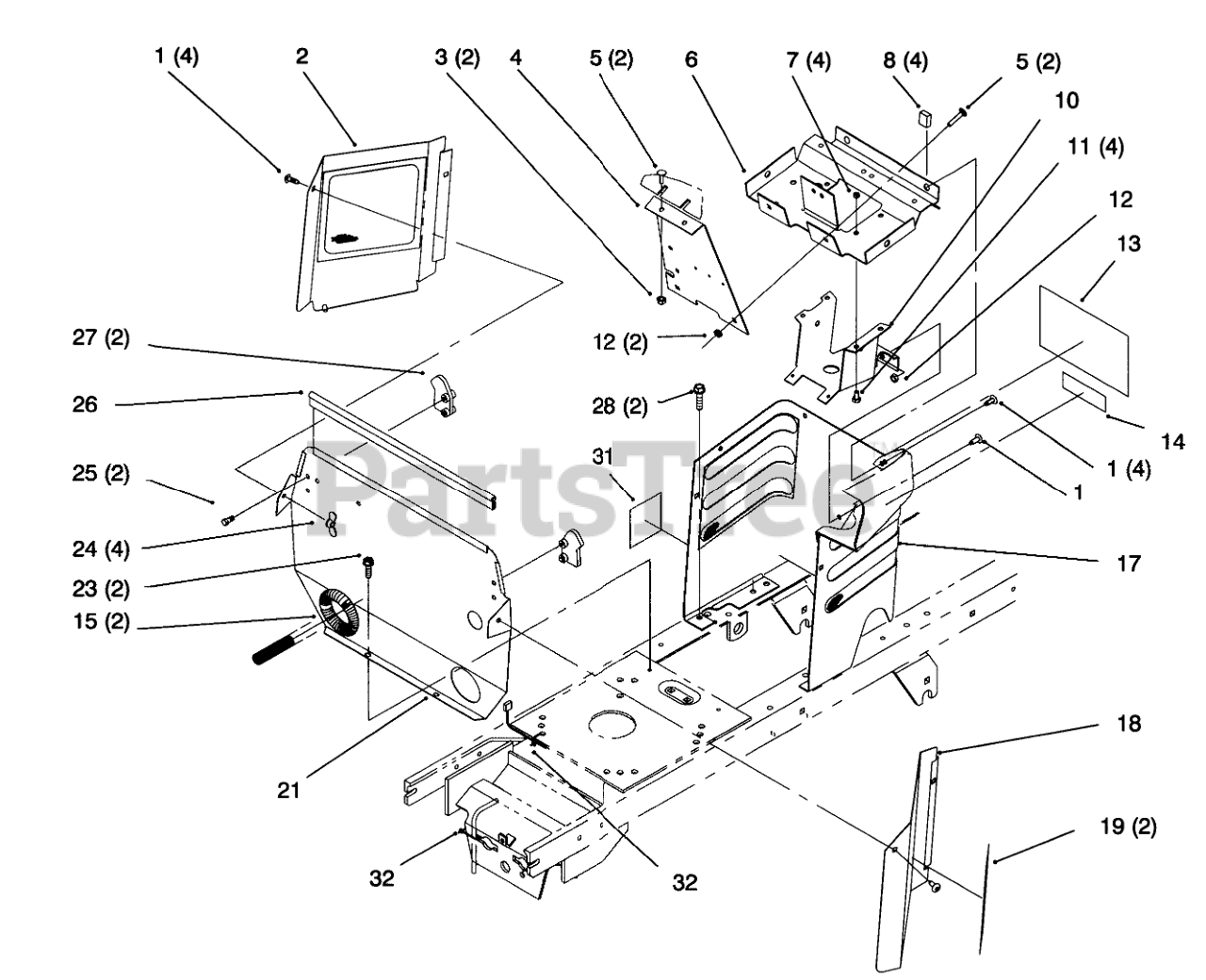

HOODSTAND AND FIREWALL Parts Diagram

  • Title
1

Toro 92-7020

SCREW-HH

$

$

Not available

2

Toro 92-6937-03

RH SIDE COVER ASM

$

$

Not available

3

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

4

Toro 94-1712

Panel-Support Dash
(Superseded to 94-1712-03)

$

$

Not available

5

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 92-6859-03

SUPPORT-DASH

$

$

Not available

7

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

8

Toro 92-6860

NUT RETAINER - J TYPE

$5.49

$

Usually ships in 3-6 days

0

10

Toro 92-6778-03

BRACKET-COLUMN, LOWER

$

$

Not available

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

13

Toro 92-7089

Decal-Slope/Park Brake (Only On: 72062)

$

$

Not available

13

Toro 92-7091

Decal-Slope/Park Brake (Only On: 72063, 72103)
(Superseded to 93-7313)

$

$

Not available

13

Toro 93-0301

Decal-Slope/Park Brake (Only On: 72042)

$

$

Not available

13

Toro 93-0302

Decal-Slope/Park Brake (Only On: 72043)

$

$

Not available

14

Toro 83-6620

DECAL-INSTRUCTION

$

$

Not available

15

Toro 24-7924

COVER-SHAFT, DRIVE

$

$

Not available

17

Toro 93-0485-03

Hoodstand W/Decals (Only On: 72042)

$

$

Not available

17

Toro 93-0486-03

Hoodstand W/Decals (Only On: 72043)

$

$

Not available

17

Toro 93-0487-03

Hoodstand W/Decals (Only On: 72062)

$

$

Not available

17

Toro 93-0488-03

Hoodstand W/Decals (Only On: 72063, 72103)

$

$

Not available

18

Toro 92-6936-03

LH COVER ASM

$

$

Not available

19

Toro 92-6733

Decal-264-6 (Only On: 72042, 72062)

$

$

Not available

19

Toro 92-6734

Decal-264-H (Only On: 72043, 72063)

$

$

Not available

19

Toro 92-6736

Decal-268-H (Only On: 72103)

$

$

Currently unavailable

21

Toro 92-6771-03

FIREWALL (BLACK)

$129.99

$

Usually ships in 3-6 days

0

23

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

24

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

25

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

26

Toro 93-1131

TRIM-SEAL, FIREWALL

$

$

Not available

27

Toro 92-6960

LATCH-HOOD

$

$

Not available

28

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

31

Toro 114621

Decal-Noise (Only On: 72062, 72063, 72103)
(Superseded to 105-2699)

$33.99

$

Usually ships in 3-6 days

0

32

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
