72042 (264-6) - Toro Yard Tractor (SN: 059000797 - 059999999) (1995) STARTING SYSTEM Parts Diagram

Yard Tractor

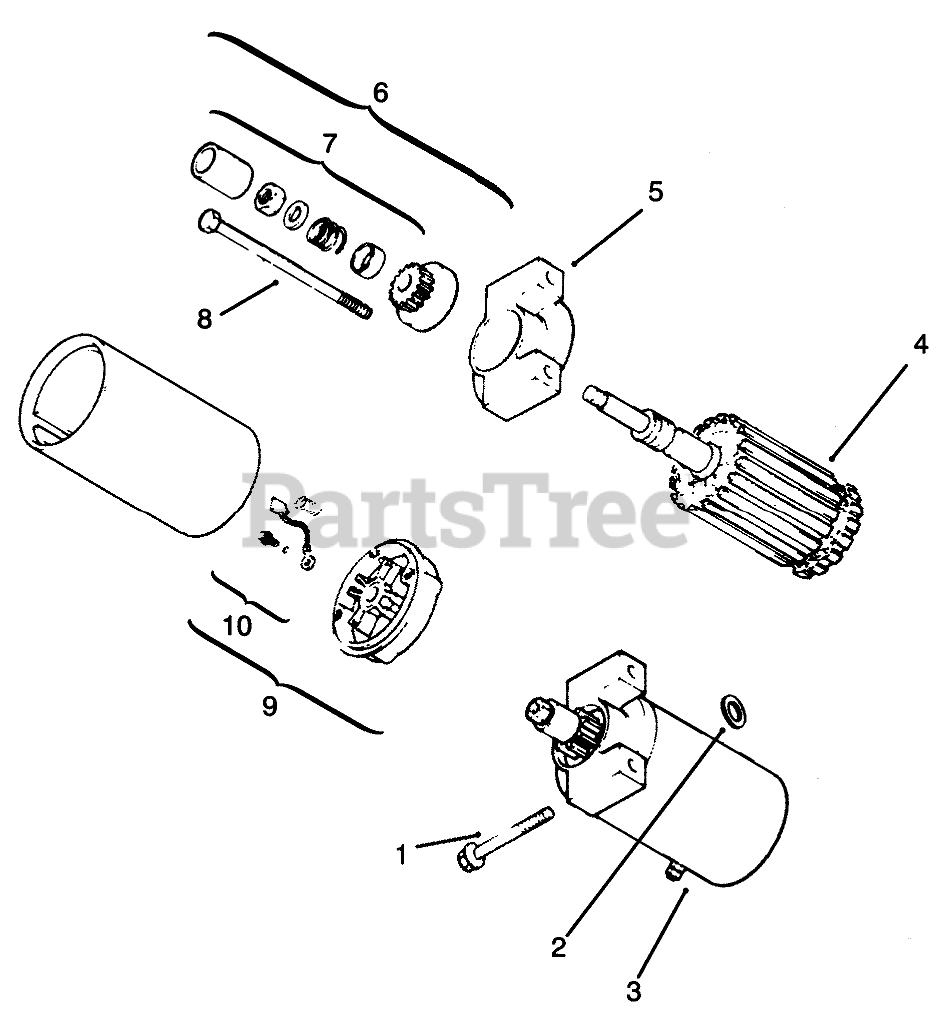

STARTING SYSTEM Parts Diagram

  • Title
1

Toro M0839070

Screw M8x1.25x70 (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

2

1246801

Washer (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

3

1209805

Starter ASM INCL 4-10 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

4

1217002

Armature (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

5

1222701

Cap-Drive End (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

6

1275512

Kit-Drive INCL 7 (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

7

1275506

Kit-Drive Parts (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

1208602

Screw-HF (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

9

1224301

Cap-Commutator INCL 10 (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

10

Toro 82 755 28

Kit-Brush And Spring (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5235701

Lubricant-Starter (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available
