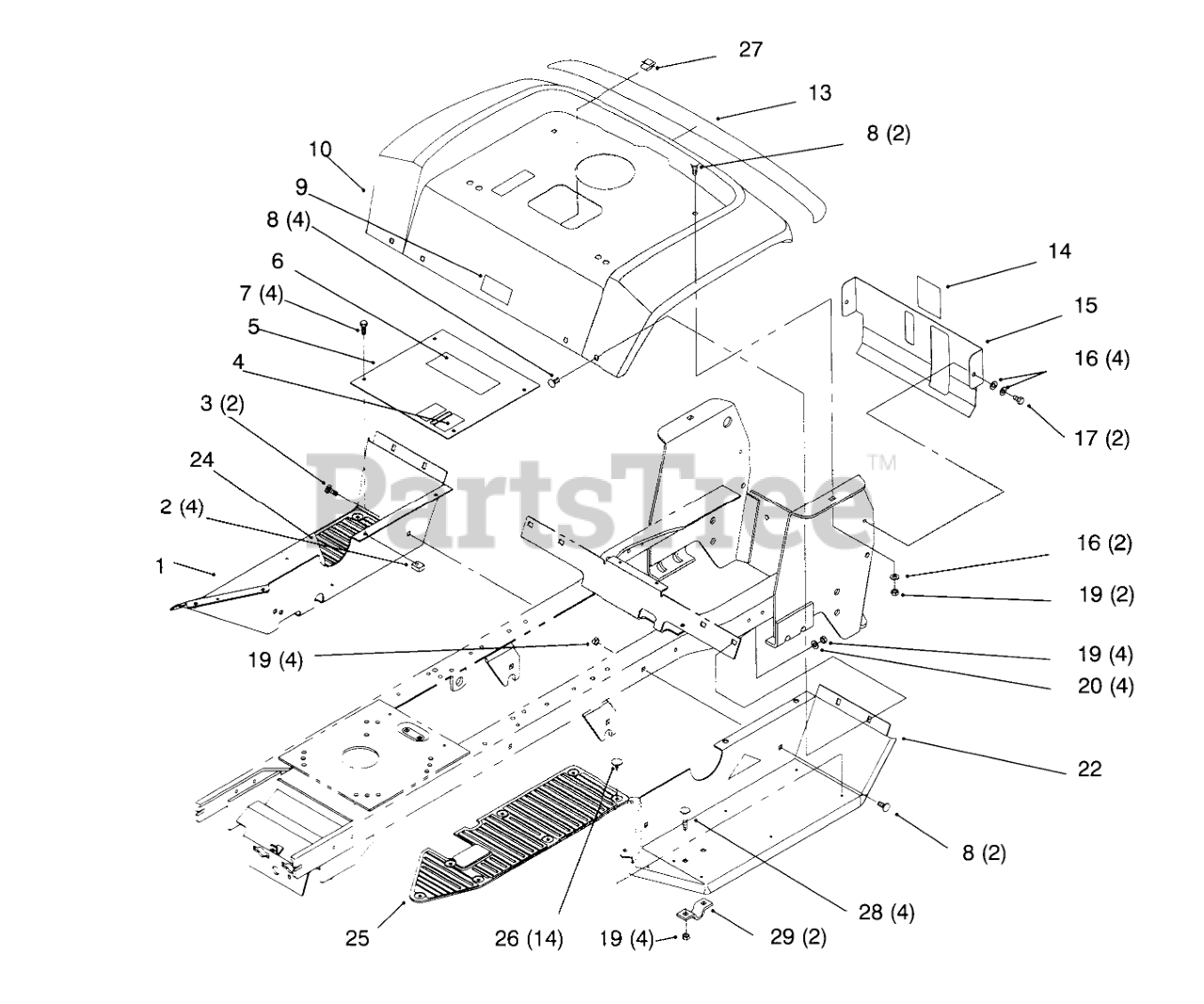

72042 (264-6) - Toro Yard Tractor (SN: 059000001 - 059000796) (1995) FENDER AND FOOTREST Parts Diagram

Yard Tractor

FENDER AND FOOTREST Parts Diagram

  • Title
1

Toro 92-6744

Footrest-RH (Only On: 72042,72062)
(Superseded to 92-6744-01)

$349.99

$

Usually ships in 3-6 days

0

1

Toro 92-6747-01

Footrest-RH (Only On: 72043,72063,72103)

$

$

Not available

2

Toro 92-6876

Nut-Retainer
(Superseded to 107069)

$2.99

$

In Stock, Qty 20+

0

3

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 92-6725

Decal-HOC (Only On: 72042,72043)

$15.99

$

Usually ships in 3-6 days

0

4

Toro 92-7092

Decal-HOC (Only On: 72062,72063,72103)

$

$

Not available

5

Toro 93-0489-01

PLT - FTREST W/DECAL

$

$

Not available

6

Toro 92-8946

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

7

Toro 92-7020

SCREW-HH

$

$

Not available

8

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

9

Toro 76-1340

Decal-USA (Only On: 72042,72043)

$16.99

$

In Stock, only 1 left!

0

10

$

$

Not available

13

Toro 92-6730

DECAL - REAR FENDER

$

$

Not available

14

Toro 92-6727

DECAL-LEVEL, FUEL

$

$

Not available

15

Toro 92-6713-03

COVER-REAR

$

$

Not available

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 5

0

22

Toro 92-6745-01

Footrest-LH (Only On: 72042,72062)

$349.99

$

Usually ships in 3-6 days

0

22

Toro 92-6746-01

Footrest-LH (Only On: 72043,72063,72103)

$

$

Not available

24

Toro 92-6687

Mat-Foot RH (Only On: 72043,72063,72103)

$

$

Not available

24

Toro 92-6689

Mat-Foot RH (Only On: 72042,72062)

$

$

Not available

25

Toro 92-6688

Mat-Foot LH (Only On: 72043,72063,72103)

$

$

Not available

25

Toro 92-6690

Mat-Foot LH (Only On: 72042,72062)

$

$

Not available

26

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

27

Toro 702366

CLIP-RETAINER, WIRE

$

$

Not available

28

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

29

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0
