72042 (264-6) - Toro Yard Tractor (SN: 059000001 - 059000796) (1995) CRANKCASE (KOHLER ENGINE CV14S-PS1472) Parts Diagram

Yard Tractor

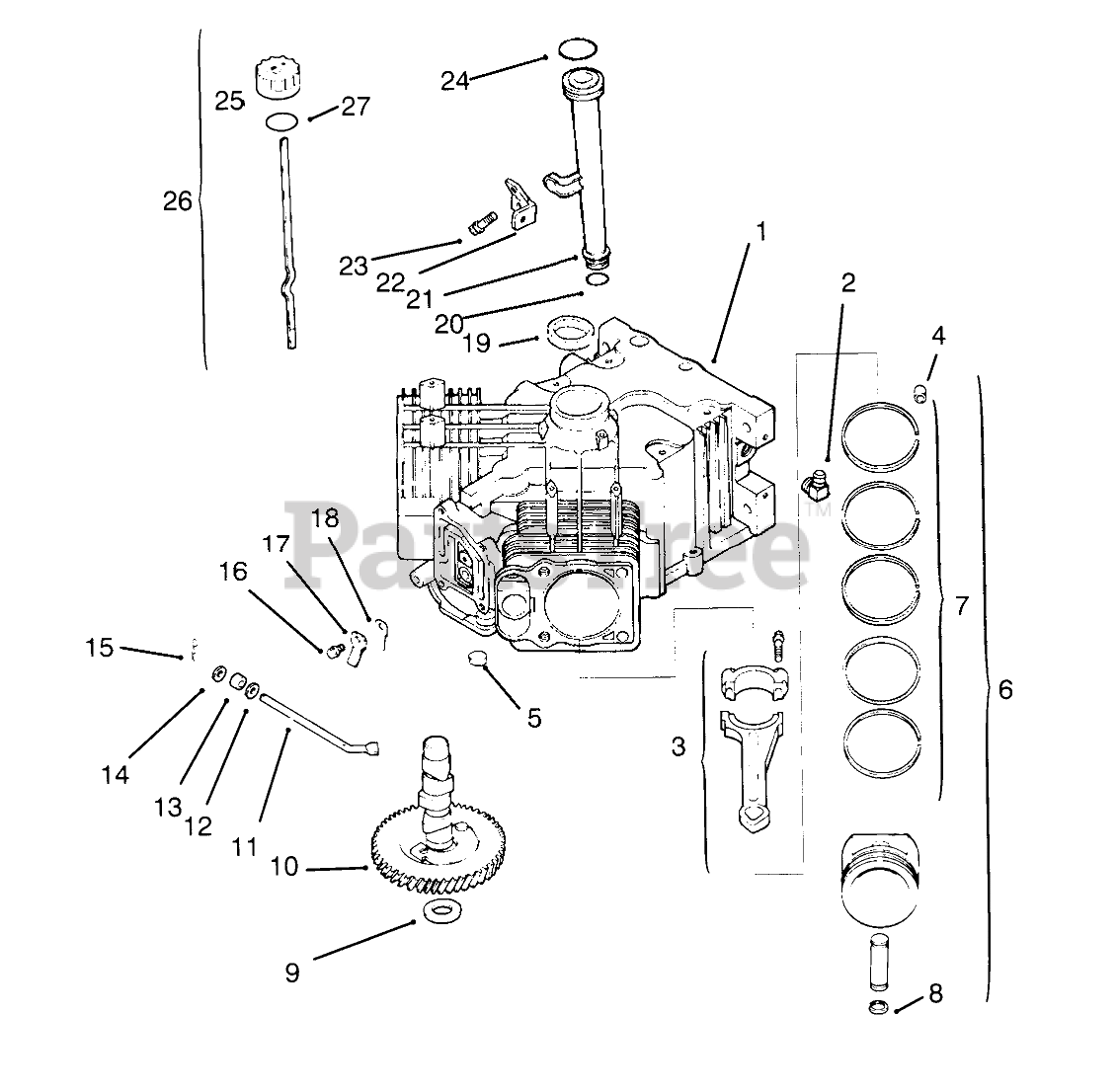

CRANKCASE (KOHLER ENGINE CV14S-PS1472) Parts Diagram

  • Title

1

Toro 24_522_09

Short Block (Only On: 72103)

$

$

Currently unavailable

2

25_155_02

Connector-90 DEG (Only On: 72103)

$

$

Not available

3

Toro 24_067_01

Connecting Rod STD (Only On: 72103)

$

$

Currently unavailable

3

Toro 24_067_02

Connecting Rod .25 (Only On: 72103)

$

$

Currently unavailable

4

Toro 12_380_03

Dowel-Locating (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

5

Toro 52_139_09

Plug-Cup (Only On: 72103)

$

$

Currently unavailable

6

Toro 24_874_01

Piston ASM STD INCL 4/7/8 (Only On: 72103)

$

$

Currently unavailable

6

Toro 24_874_02

Piston ASM .25 INCL 4/7/8 (Only On: 72103)

$

$

Currently unavailable

6

Toro 24_874_03

Piston ASM .50 INCL 4/7/8 (Only On: 72103)

$

$

Currently unavailable

7

Toro 24_108_01

Ring Set STD INCL 4/8 (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

7

Toro 24_108_02

Ring Set .25 INCL 4/8 (Only On: 72103)

$

$

Currently unavailable

7

Toro 24_108_03

Ring Set .50 INCL 4/8 (Only On: 72103)

$

$

Currently unavailable

8

Toro 24_018_01

Retainer-Piston Pin (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

9

Toro 12_422_07

Shim-Camshaft A/R (Only On: 72103)

$

$

Currently unavailable

9

Toro 12_422_08

Shim-Camshaft A/R (Only On: 72103)

$

$

Currently unavailable

9

Toro 12_422_09

Shim-Camshaft A/R (Only On: 72103)

$

$

Currently unavailable

9

Toro 12_422_10

Shim-Camshaft A/R (Only On: 72103)

$

$

Currently unavailable

9

Toro 12_422_11

Shim-Camshaft A/R (Only On: 72103)

$

$

Currently unavailable

9

Toro 12_422_12

Shim-Camshaft A/R (Only On: 72103)

$

$

Currently unavailable

9

Toro 12_422_13

Shim-Camshaft A/R (Only On: 72103)

$

$

Currently unavailable

10

Toro 24_012_05

Camshaft (Only On: 72103)

$

$

Currently unavailable

11

Toro 24_144_01

Shaft-Governor Cross (Only On: 72103)

$

$

Currently unavailable

12

Kohler X-25-63

Washer-Flat (Only On: 72103)
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

13

12_032_01

Seal-Governor Shaft (Only On: 72103)

$

$

Not available

14

Kohler X-25-102

Washer-Flat (Only On: 72103)
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 5

0

15

Toro 12_380_04

Pin-Governor Hitch (Only On: 72103)

$

$

Currently unavailable

16

Kohler M-0545010

Screw M5x0.8x10 (Only On: 72103)
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

17

24_018_04

Retainer-Reed (Only On: 72103)

$

$

Not available

18

24_402_01

Beed-Breather (Only On: 72103)

$

$

Not available

19

Toro 24_032_01

Seal-Oil (Only On: 72103)

$

$

Currently unavailable

20

12_153_01

O Ring-Lower Fill Tube (Only On: 72103)

$

$

Not available

21

12_123_04

Tube-Oil Fill (Only On: 72103)

$

$

Not available

22

Toro 24_126_19

Bracket-Oil Fill Tube (Only On: 72103)

$

$

Currently unavailable

23

Kohler M-0549016

Screw M5X0.8X16 (Only On: 72103)

$

$

Not available

24

12_153_02

O Ring-Upper Fill Tube (Only On: 72103)

$

$

Not available

25

24_038_04

Dipstick INCL 26-27 (Only On: 72103)

$

$

Not available

26

Toro 25_755_13

Kit-Oil Cap INCL 3 (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Currently unavailable

27

12_153_03

O Ring-Fill Cap (Only On: 72103)

Note: Included in a service kit or in an assembly

$

$

Not available

Toro 24_755_03

Gasket Set (Only On: 72103)

Note: Not illustrated

$

$

Currently unavailable
