72042 (264-6) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) REAR WHEEL Parts Diagram

Yard Tractor

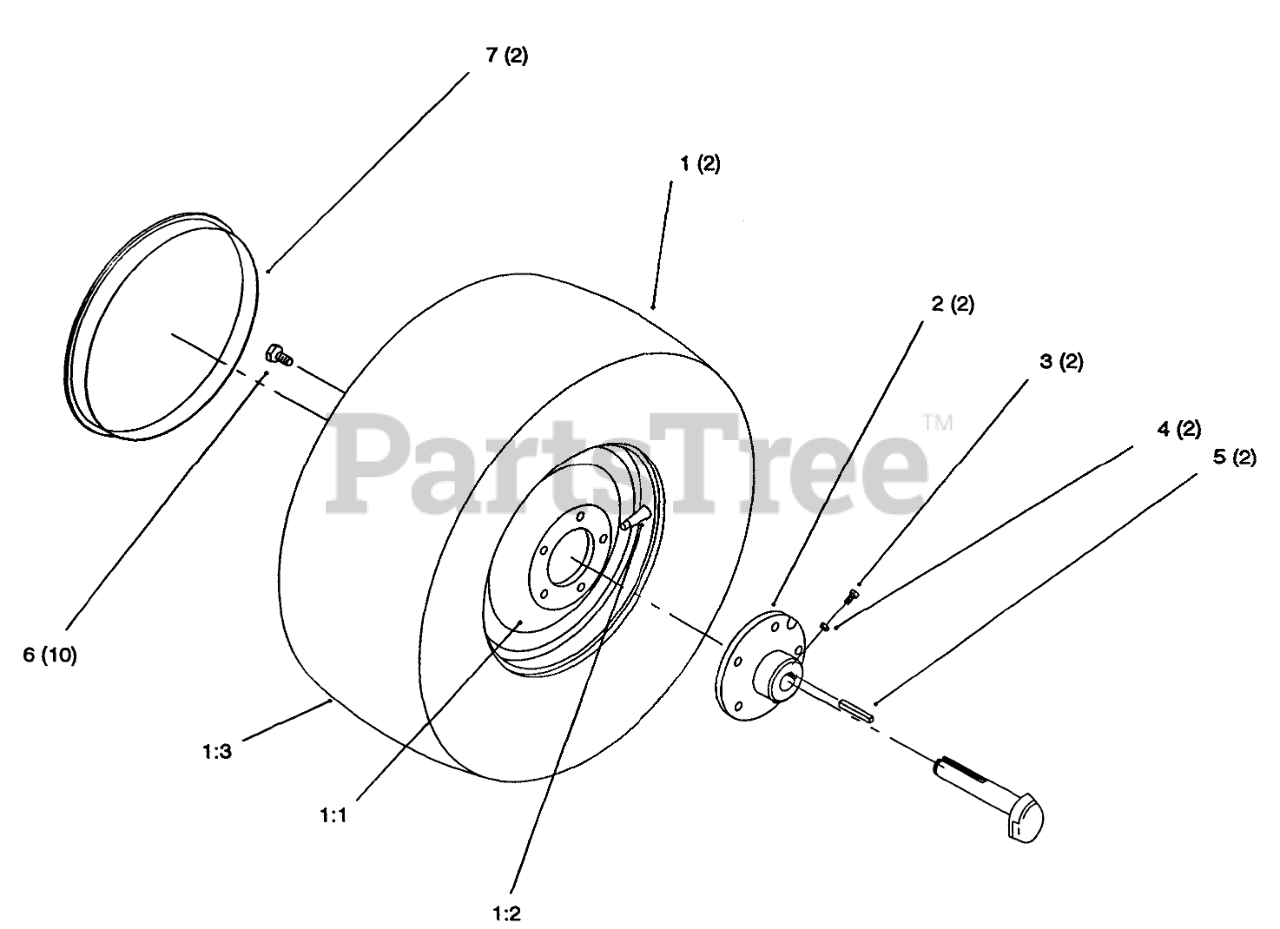

REAR WHEEL Parts Diagram

  • Title
1

Wheel & Tire ASM (Only On: 72042, 72062, 72043, 72063)

Note: Not serviced

$

$

Not available

1

Wheel & Tire ASM Rear (Only On: 72083, 72103)

Note: Not serviced

$

$

Not available

1:1

Toro 78-1221

WHEEL

$

$

Not available

1:2

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

1:3

Toro 116744

Tire (Only On: 72042, 72063, 72062, 72043)
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

1:3

Toro 116971

Tire (Only On: 72083, 72103)

$

$

Not available

2

Toro 93-3659-03

HUB-WHEEL

$171.99

$

Usually ships in 3-6 days

0

3

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

4

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

5

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

6

Toro 83-2720

BOLT-LUG

$4.99

$

In Stock, only 4 left!

0

7

Toro 114428

Hubcap (Only On: 72083)

$

$

Not available
