72042 (264-6) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) OIL PAN/LUBRICATION Parts Diagram

Yard Tractor

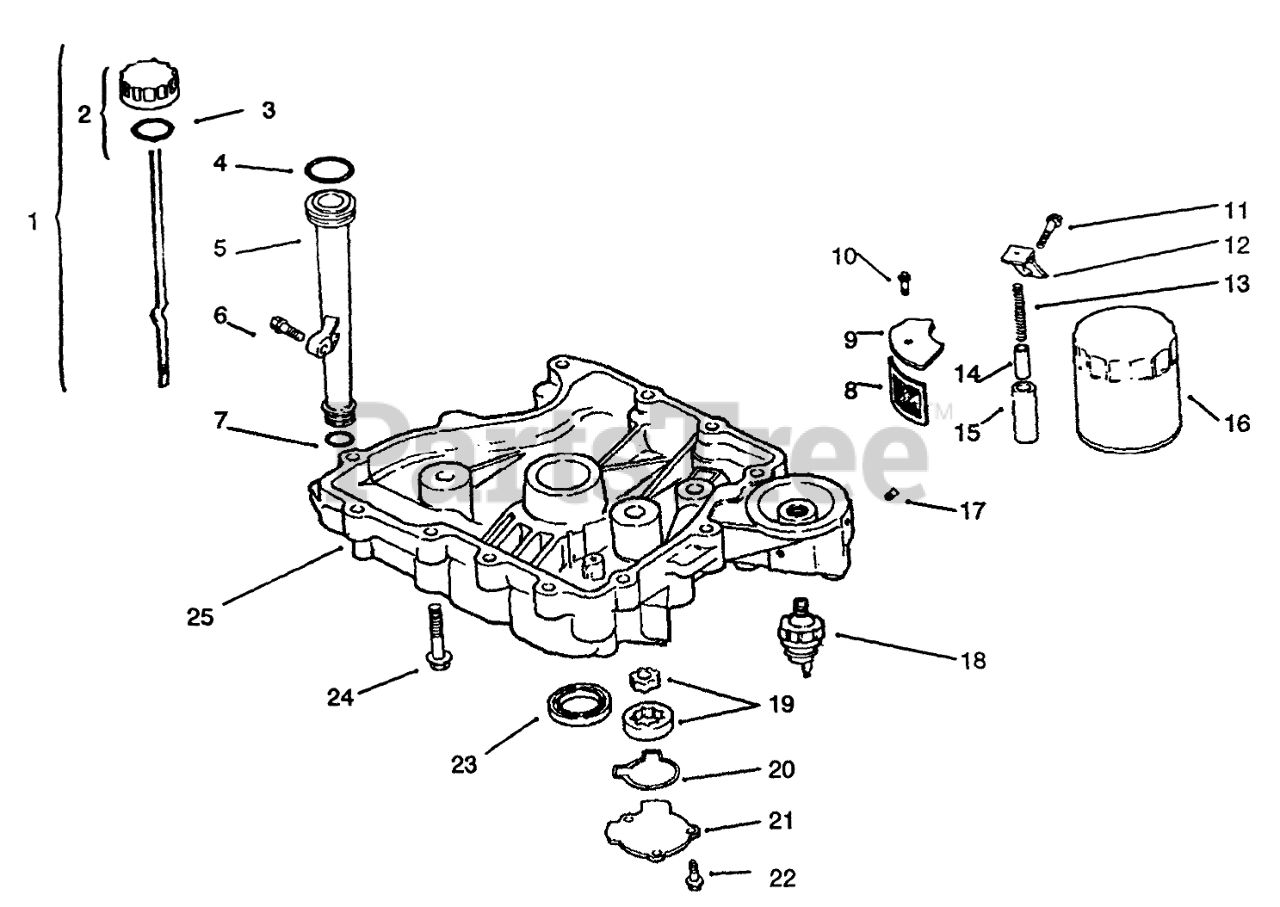

OIL PAN/LUBRICATION Parts Diagram

  • Title
1

1203801

Dipstick INC 2-3 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

2

2575513

Kit-Oil Cap INC 3 (Only On: 72042 72063, 72062, 72043)

Note: Included in a service kit or in an assembly

$

$

Not available

3

1215303

O-Ring-Fill Cap (Only On: 72042, 72063, 72062, 72043)

Note: Included in a service kit or in an assembly

$

$

Not available

4

1215302

O-Ring-Upper Fill Tube (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

5

1212304

Tube-Oil Fill (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

6

Toro SM-0545020

Screw M5x0.8x20 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

7

1215301

O-Ring-Lower Fill Tube (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

8

1216202

Screen-Oil Pickup (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

9

1209603

Cover-Oil Pickup Screen (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

10

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

11

Toro M-1039025

Screw M10x1.5x25 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

12

1212602

Bracket-Oil Pump Relief (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

13

1208903

Spring-Oil Relief Valve (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

14

1246201

Piston-Oil Relief Valve (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

15

1220801

Body-Oil Relief Valve (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

16

12 050 01

Filter-Oil (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

17

Toro X-75-10

Plug-SH 3/8 NPTF (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

18

5209906

Switch-Oil Pressure (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

19

1239301

Pump-Oil (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

20

1203204

O-Ring-Oil Pump Cover (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

21

1209602

Cover-Oil Pump (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

22

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

23

1203203

Seal-Crankshaft (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

24

Toro Sm-0838045

Screw M8x1.25x45 (Only On: 72042, 72063, 72062, 72043)

$

$

Currently unavailable

25

1219921

Pan-Oil (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

5251821

Lead-Oil Switch W/Tabs (Only On: 72042, 72063, 72062, 72043)

Note: Not illustrated

$

$

Not available
