72042 (264-6) - Toro Yard Tractor (SN: 049000001 - 049999999) (1994) CYLINDER HEAD/VALVE/BREATHER Parts Diagram

Yard Tractor

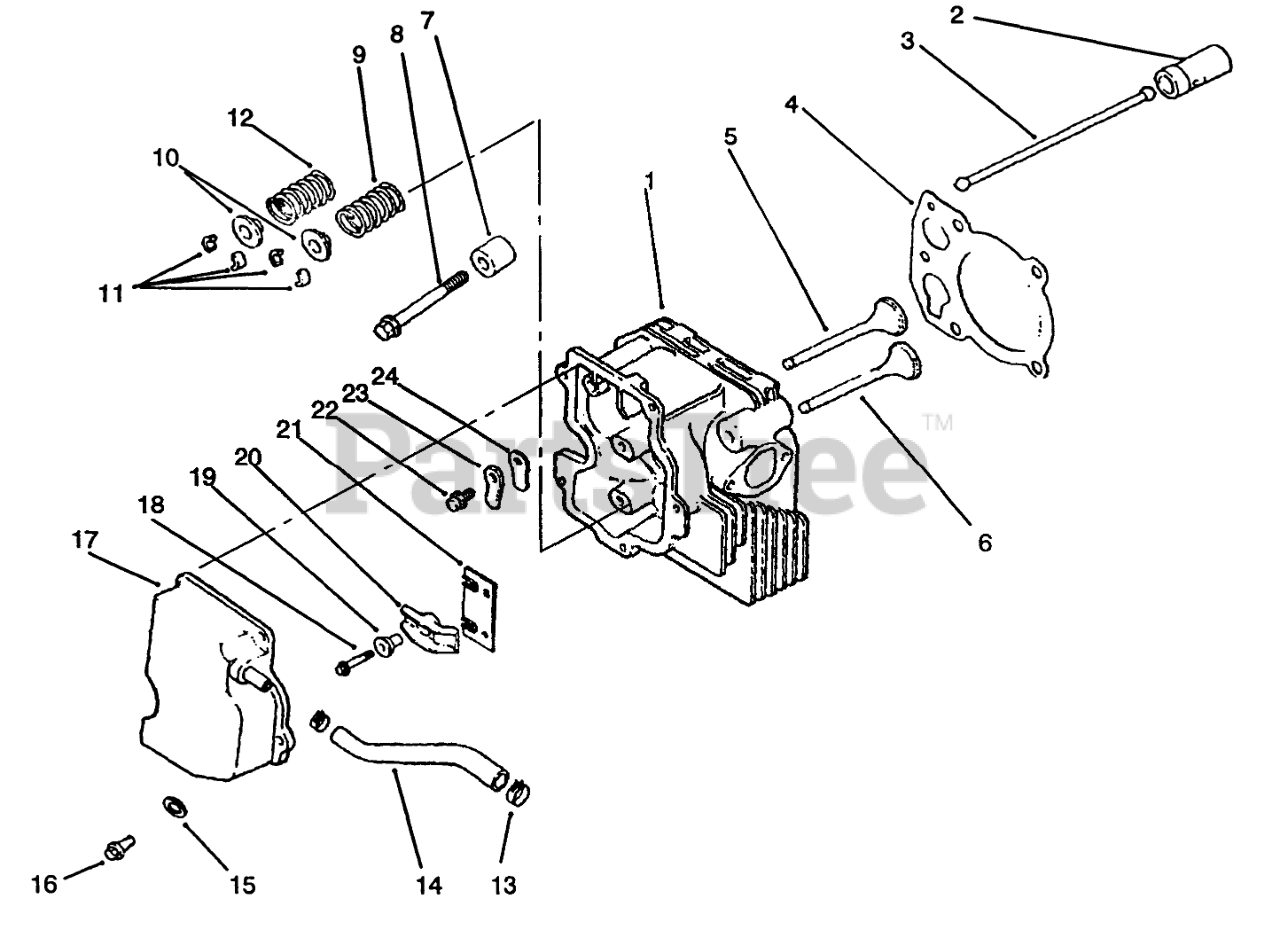

CYLINDER HEAD/VALVE/BREATHER Parts Diagram

  • Title

1

1231802

Cylinder Head (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

2

1235101

Lifter-Valve (Only On: 7 2042, 72063, 72062, 72043)

$

$

Not available

3

1241101

Rod-Push (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

4

1204108

Gasket-Cylinder Head (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

5

1201701

Valve-Intake STD (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

5

1201702

Valve-Intake .25 (Only On: 72043, 72042, 72063, 72062)

$

$

Not available

6

1201601

Valve-Exhaust STD (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

6

1201602

Valve-Exhaust .25 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

7

1211213

Spacer-Head Bolt Exhaust (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

8

1208615

Screw M10x1.5x80 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

9

Kohler 12 089 15

Spring-Valve Exhaust (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 089 15-S)

$

$

Not available

10

Kohler 12 173 01

Cap-Valve Spring (Only On: 72042, 72063, 72062, 72043)
(Superseded to 25 173 28-S)

$8.49

$

In Stock, only 3 left!

0

11

Kohler 12 755 03

Kit-Retainer (Only On: 72042, 72063, 72062, 72043)
(Superseded to 12 755 03-S)

$5.99

$

In Stock, Qty 7

0

12

1208901

Spring-Valve Intake (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

13

Kohler X-426-9

Clamp-Hose (Only On: 72042, 72063, 72062, 72043)
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

14

1232603

Hose-Breather (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

15

1246805

Washer-Flat (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

16

Kohler SM-0645020

Screw M6x1.0x20 (Only On: 72042, 72063, 72062, 72043)
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

17

1209607

Cover-Valve W/Nipple (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

18

Kohler M-0640034

Screw M6x1.0x34 (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

19

2419401

Ball-Rocker Pivot (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

20

2418601

Arm-Rocker (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

21

1214613

Plate-Guide (Only On: 72042, 72063, 72062, 72043)

$

$

Not available

22

Kohler M-0545010

Screw M5x0.8x10 (Only On: 72042, 72063, 72062, 72043)
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

23

Kohler 12 018 01

Retainer-Breather Reed (Only On: 72042, 72063, 72062, 72043)
(Superseded to 66 018 04-S)

$4.99

$

In Stock, only 4 left!

0

24

Kohler 24 402 03

Reed-Breather (Only On: 72042, 72063, 72062, 72043)
(Superseded to 24 402 03-S)

$3.49

$

In Stock, only 1 left!

0
