72041 (244-H) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) STEERING SHAFT AND INDICATOR ASSEMBLY Parts Diagram

Yard Tractor

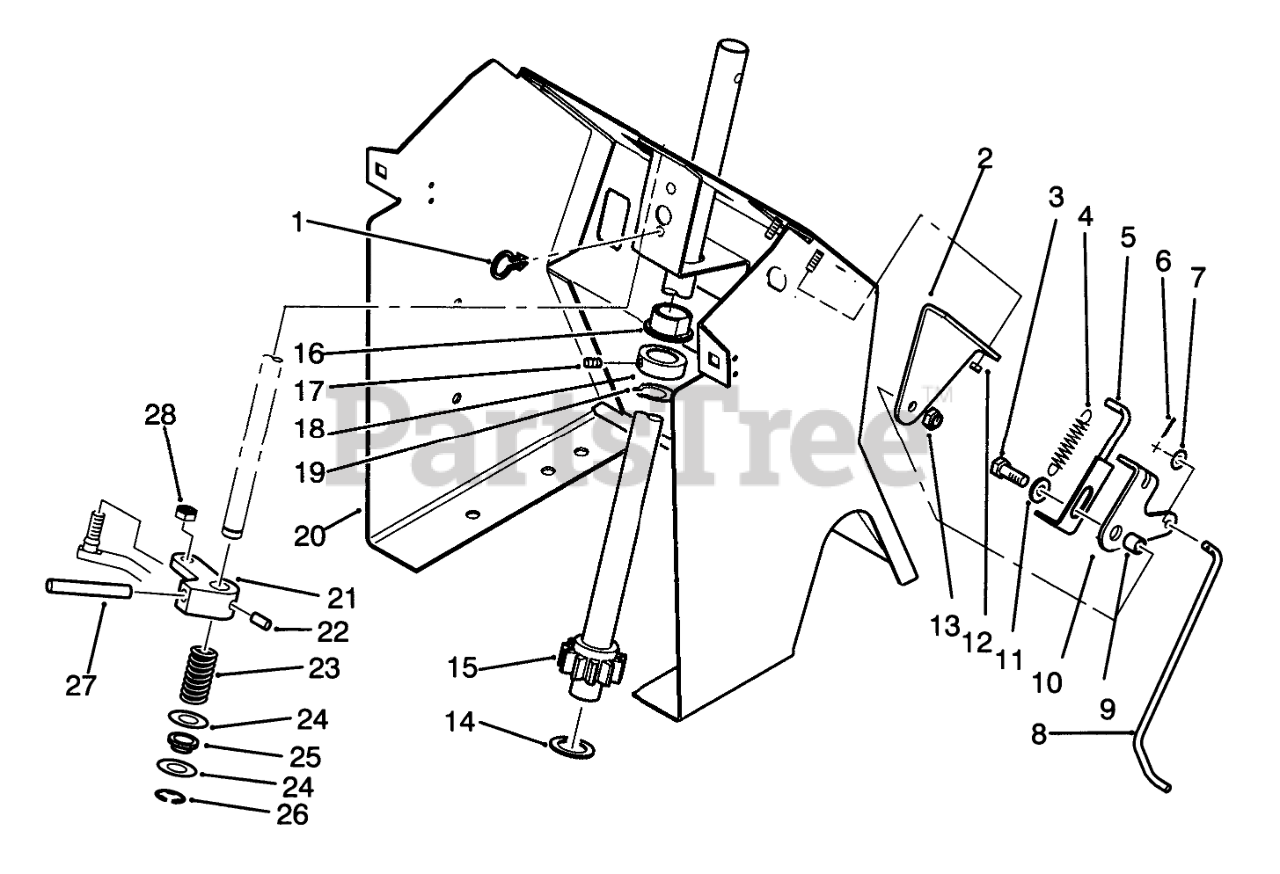

STEERING SHAFT AND INDICATOR ASSEMBLY Parts Diagram

  • Title
1

Toro 115858

CLIP-SNAP IN

$2.49

$

Usually ships in 3-6 days

0

2

Toro 78-7911

SUPPORT-INDICATOR B

$

$

Not available

3

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

4

Toro 78-9750

SPRING-EXTENSION

$

$

Not available

5

Toro 79-1070

WLDMT-INDICATOR R

$

$

Not available

6

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 78-2100

ROD-INDICATOR

$

$

Not available

9

Toro 78-9481

SPACER

$

$

Not available

10

Toro 78-7901

RETAINER-INDICATO B

$

$

Not available

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 1278

WASHER

$2.99

$

In Stock, only 1 left!

0

15

Toro 78-8130

WLDMT-STRG SHAFT

$177.99

$

Usually ships in 3-6 days

0

16

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

17

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

18

Toro 109189

BEARING-FLANGED

$2.99

$

In Stock, Qty 20+

0

19

Toro 111646

RING-RETAINING

$1.49

$

In Stock, only 4 left!

0

20

Toro 78-2394

HOOD STAND W/A B

$

$

Not available

21

Toro 78-6201

ARM-SPEED CONTROL

$

$

Not available

22

Toro 933276

PIN-SPIROL

$9.99

$

Usually ships in 3-6 days

0

23

Toro 78-8730

SPRING-COMPRESSION

$

$

Not available

24

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

25

Toro 5666

BUSHING-NYLINER

$3.49

$

In Stock, only 4 left!

0

26

Toro 32151-84

RING-SHAFT, EXT

$2.49

$

Usually ships in 3-6 days

0

27

Toro 933233

PIN-SPIROL 5/16X2.25

$

$

Not available

28

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

Toro 100571

PLASTIC TIE

Note: Not illustrated

$

$

Not available
