72040 (244-5) - Toro Yard Tractor (SN: 039000001 - 039999999) (1993) GOVERNOR LINKAGE & COVER ASSEMBLY Parts Diagram

Yard Tractor

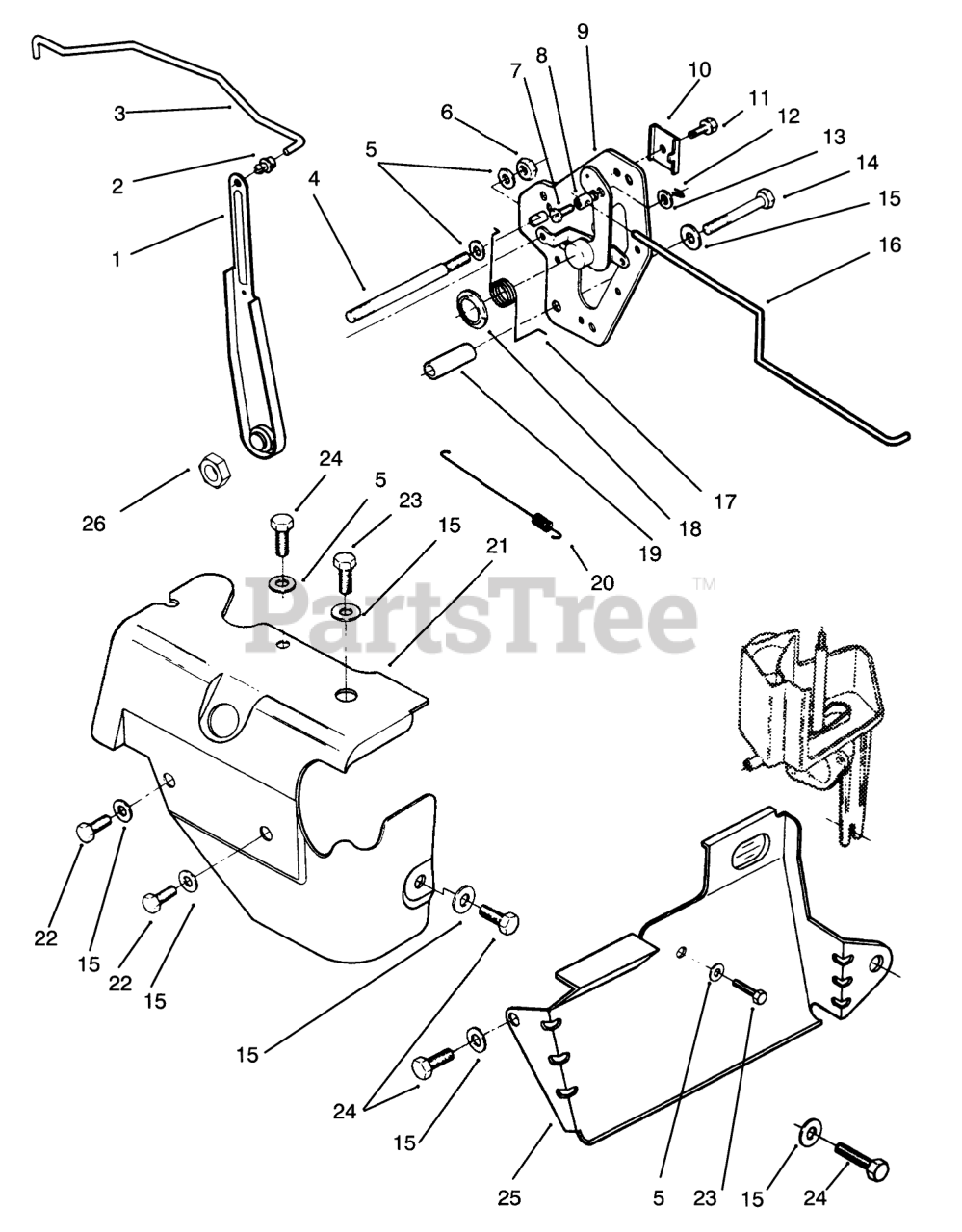

GOVERNOR LINKAGE & COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 92-5918

GOVERNOR LEVER

$

$

Not available

2

Toro 92-5920

LINK CLIP

$

$

Not available

3

Toro 92-5919

THROTTLE LINK

$

$

Not available

4

Toro NN10661

STUD

$

$

Not available

5

Toro 82-1340

WASHER-FLAT

$

$

Not available

6

Toro NN10663

NUT-HEX M6

$

$

Not available

7

Toro NN10652

HHMS #8-32X3/8"

$

$

Not available

8

Toro NN10656

SWIVEL-CHOKE LEVER

$

$

Not available

9

Toro NN10651

PLATE-ASS'Y THROTTLE

$

$

Not available

10

Toro NN10783

CLAMP-CONTROL

$

$

Not available

11

Toro NN10395

Bolt
(Superseded to 72-3900)

$

$

Not available

12

Toro 59-0720

PIN-COTTER

$

$

Not available

13

Toro NN10364

Washer
(Superseded to 59-0850)

$

$

Not available

14

Toro NN10817

SCREW

$

$

Not available

15

Toro 82-1350

WASHER-FLAT

$

$

Not available

16

Toro 92-5921

CHOKE LINK

$

$

Not available

17

Toro NN10654

SPRING-CHOKE LINKAGE

$

$

Not available

18

Toro NN10664

RING-RETAINER

$

$

Not available

19

Toro NN10660

SPACER

$

$

Not available

20

Toro 92-5917

GOVERNOR SPRING

$

$

Not available

21

Toro NN10772

Cover
(Superseded to NN10802)

$

$

Not available

22

Toro 92-5936

HEX HEAD CAPSCREW

$

$

Not available

23

Toro NN10725

HHCS-M6 X 10MM

$

$

Not available

24

Toro NN10727

HHCS-M8 X 16MM

$

$

Not available

25

Toro 92-5894

AIR DEFLECTOR

$

$

Not available

26

Toro 92-5872

NYLON LOCK NUT

$

$

Not available
