72030 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 411880132) Hydraulic Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

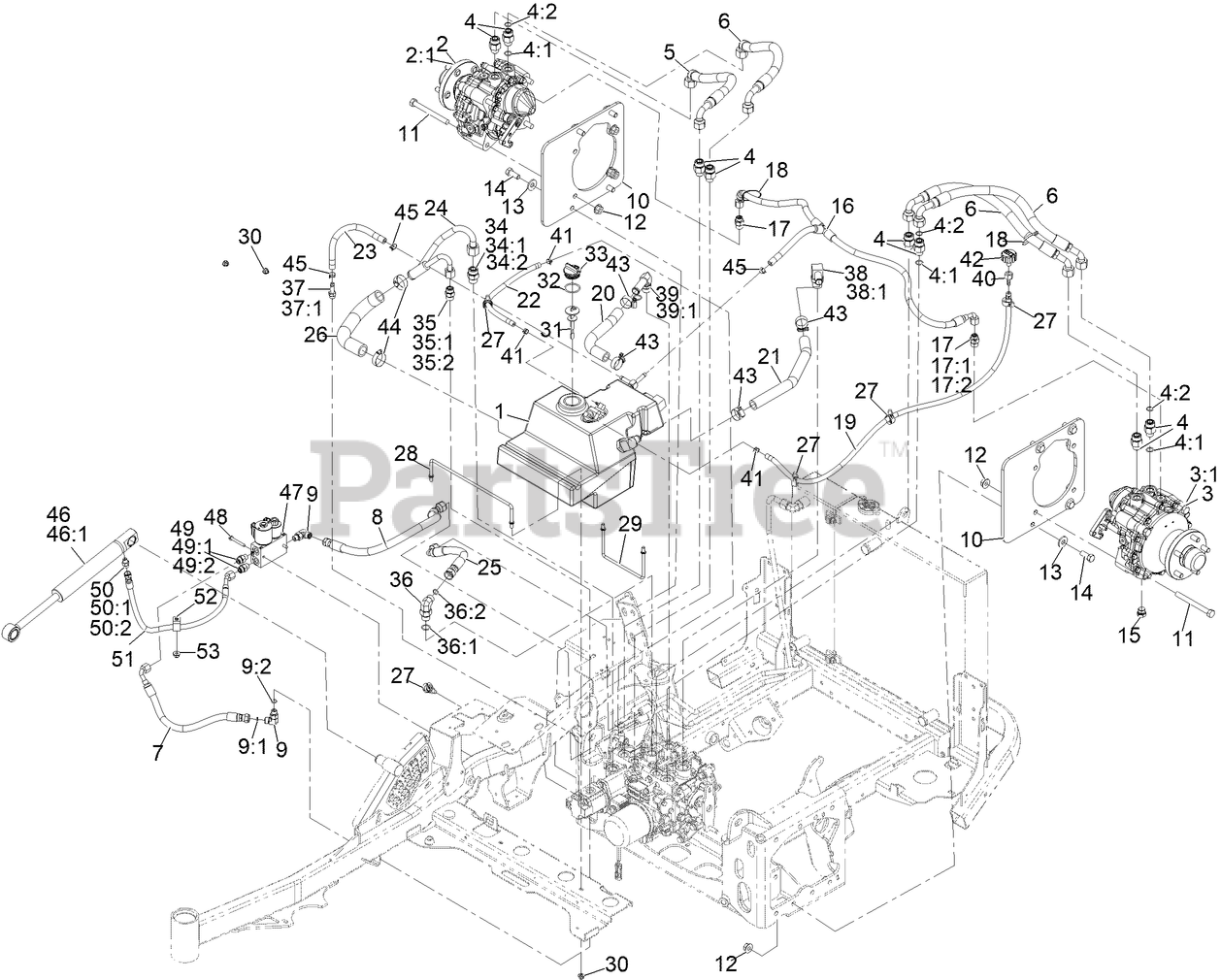

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 142-5034

HYD RESERVOIR ASM

$903.99

$

Usually ships in 3-6 days

0

2

Toro 126-8133

MOTOR-HYD, RH

$1634.99

$

Usually ships in 3-6 days

0

2:1

Toro 135-5333

5 STUD WHEEL HUB KIT

$298.99

$

Usually ships in 3-6 days

0

3

Toro 126-8134

MOTOR-HYD, LH

$1634.99

$

Usually ships in 3-6 days

0

3:1

Toro 135-5333

5 STUD WHEEL HUB KIT

$298.99

$

Usually ships in 3-6 days

0

4

Toro 340-155

FITTING-STRAIGHT

$30.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

4:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

5

Toro 126-8686

HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

6

Toro 126-8687

HOSE ASM

$129.99

$

Usually ships in 3-6 days

0

7

Toro 126-8684

HOSE ASM

$59.99

$

In Stock, only 1 left!

0

8

Toro 126-8685

HOSE ASM

$78.99

$

In Stock, only 1 left!

0

9

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

9:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

10

Toro 126-7469-03

PLATE-MOTOR

$106.99

$

Usually ships in 3-6 days

0

11

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

12

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

13

Toro 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

14

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

15

Toro 142-2435

PLUG-MAGNETIC

$13.99

$

In Stock, only 3 left!

0

16

Toro 135-3731

TEE HOSE ASM

$130.99

$

Usually ships in 3-6 days

0

17

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

17:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

19

Toro 126-6776

HOSE

$24.99

$

Usually ships in 3-6 days

0

20

Toro 126-6767

HOSE-RETURN

$18.99

$

Usually ships in 3-6 days

0

21

Toro 126-6768

HOSE-RETURN

$22.99

$

Usually ships in 3-6 days

0

22

Toro 126-6778

HOSE

$13.99

$

Usually ships in 3-6 days

0

23

Toro 126-6766

HOSE

$6.99

$

Usually ships in 3-6 days

0

24

Toro 126-8688

TUBE ASM

$182.99

$

Usually ships in 3-6 days

0

25

Toro 126-8682

HOSE ASM

$66.99

$

Usually ships in 3-6 days

0

26

Toro 126-6774

HOSE-SUCTION

$23.99

$

Usually ships in 3-6 days

0

27

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

28

Toro 126-7547

ROD-SUPPORT, HYD TANK

$22.99

$

Usually ships in 3-6 days

0

29

Toro 126-7546

ROD-SUPPORT, HYD TANK

$28.99

$

Usually ships in 3-6 days

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 112-6365

DIPSTICK

$90.99

$

Usually ships in 3-6 days

0

32

Toro 94-8166

O-RING

$4.99

$

Usually ships in 3-6 days

0

33

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 4 left!

0

34

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

34:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

34:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

35

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

35:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

35:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

36

Toro 340-105

FITTING-ELBOW, 90 DEG

$44.99

$

In Stock, only 1 left!

0

36:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

36:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

37

Toro 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

38

Toro 353-987

FITTING-ELBOW, 90

$79.99

$

Usually ships in 3-6 days

0

38:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

39

Toro 87-8170

FITTING-90

$49.99

$

Usually ships in 3-6 days

0

39:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

40

Toro 354-95

FITTING-STRAIGHT

$7.49

$

Usually ships in 3-6 days

0

41

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

42

Toro 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

0

43

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

44

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

45

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

46

Toro 126-7841

CYLINDER-LIFT

$547.99

$

Usually ships in 3-6 days

0

46:1

Toro 142-2767

KIT, CYL REPAIR

$113.99

$

Usually ships in 3-6 days

0

47

Toro 131-1934

DECK LIFT VALVE ASM

$842.99

$

Usually ships in 3-6 days

0

48

Toro 117-5248

SCREW-HWHTF

$2.99

$

In Stock, Qty 17

0

49

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

49:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

49:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

50

Toro 126-8692

FITTING-HYD, STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

50:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

50:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

51

Toro 126-8683

HOSE ASM

$68.99

$

Usually ships in 3-6 days

0

52

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

53

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
