72029 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 411600000 - 412799999) Motion Control Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

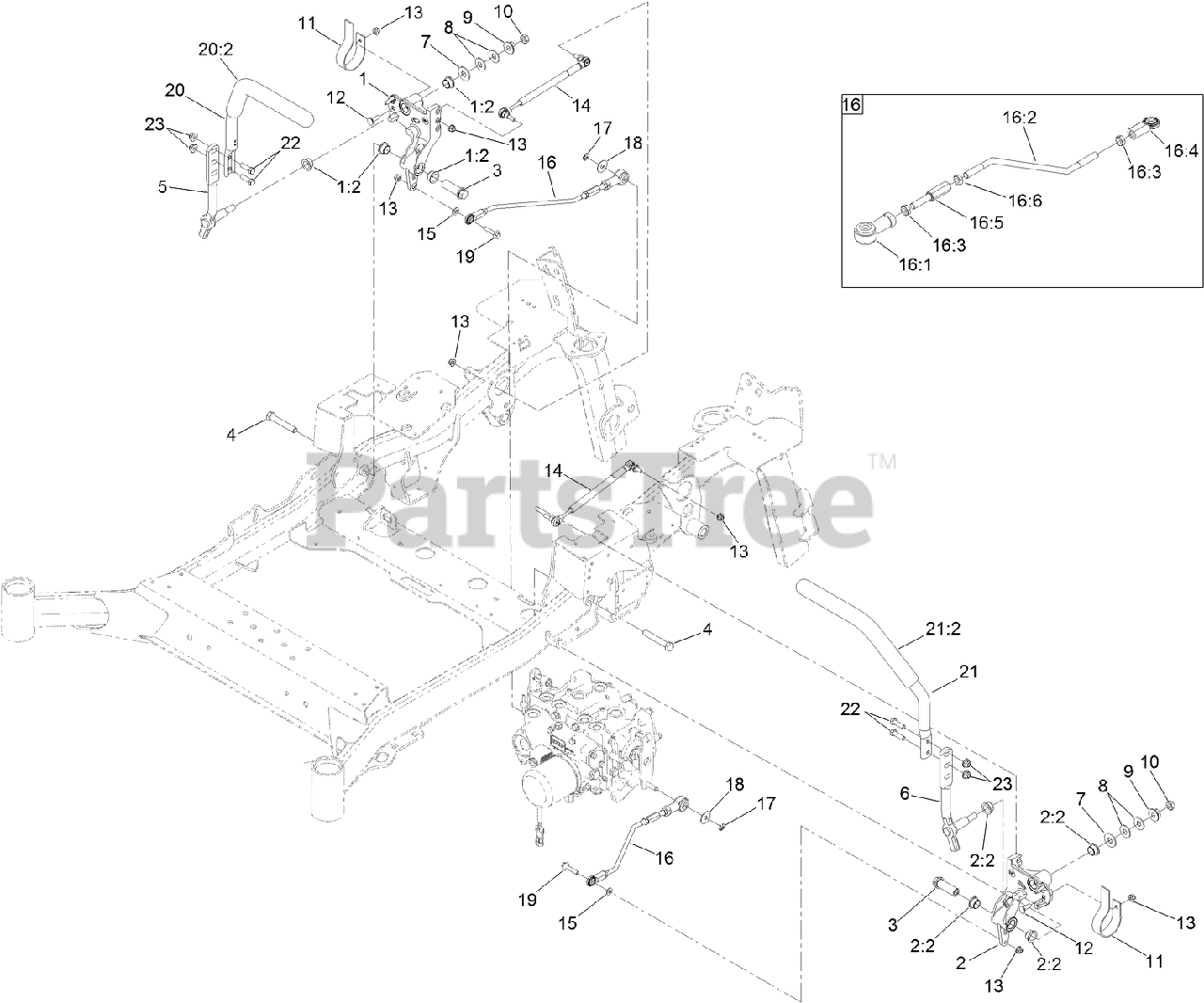

Motion Control Assembly Parts Diagram

  • Title
1

Toro 116-0880

RH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

1:2

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

2

Toro 116-0881

LH MOTION CONTROL AND BUSHING ASM

$59.99

$

In Stock, only 1 left!

0

2:2

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

3

Toro 109-5891

HUB-THREADED

$14.99

$

In Stock, only 2 left!

0

4

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

5

Toro 116-0039

LEVER-CONTROL MOTION, RH

$53.99

$

In Stock, only 1 left!

0

6

Toro 116-0040

LEVER-CONTROL MOTION, LH

$53.99

$

In Stock, only 1 left!

0

7

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 4 left!

0

9

Toro 32128-56

NUT-HF

$10.99

$

Usually ships in 3-6 days

0

10

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

11

Toro 109-5575

SPRING-LEAF

$15.99

$

Usually ships in 3-6 days

0

12

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

14

Toro 116-0027

DAMPER-CONTROL, MOTION
(Superseded to 146-0859)

$92.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 126-6131

FRONT LINKAGE ROD ASM
(Superseded to 142-8447)

$70.99

$

Usually ships in 3-6 days

0

16:1

Toro 105-7199

END-ROD, ISOLATED

$99.99

$

In Stock, only 1 left!

0

16:2

Toro 126-6469

ROD-LINKAGE, REAR

$23.99

$

In Stock, only 3 left!

0

16:3

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

16:4

Toro 103-2463

JOINT-BALL, END

$28.99

$

In Stock, only 2 left!

0

16:5

Toro 116-4755

ROD-ADJUSTMENT

$50.99

$

Usually ships in 3-6 days

0

16:6

Toro 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

0

17

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

18

Toro 105-6814

WASHER-PLAIN

$1.49

$

In Stock, Qty 11

0

19

Toro 115-1794

SCREW-HHF

$1.99

$

In Stock, Qty 11

0

20

Toro 126-7700

RH STEERING HANDLE ASM

$68.99

$

Usually ships in 3-6 days

0

20:2

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0

21

Toro 126-7699

LH STEERING HANDLE ASM

$68.99

$

Usually ships in 3-6 days

0

21:2

Toro 109-5668

GRIP-CONTROL, LEVER

$14.99

$

In Stock, Qty 7

0

22

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
