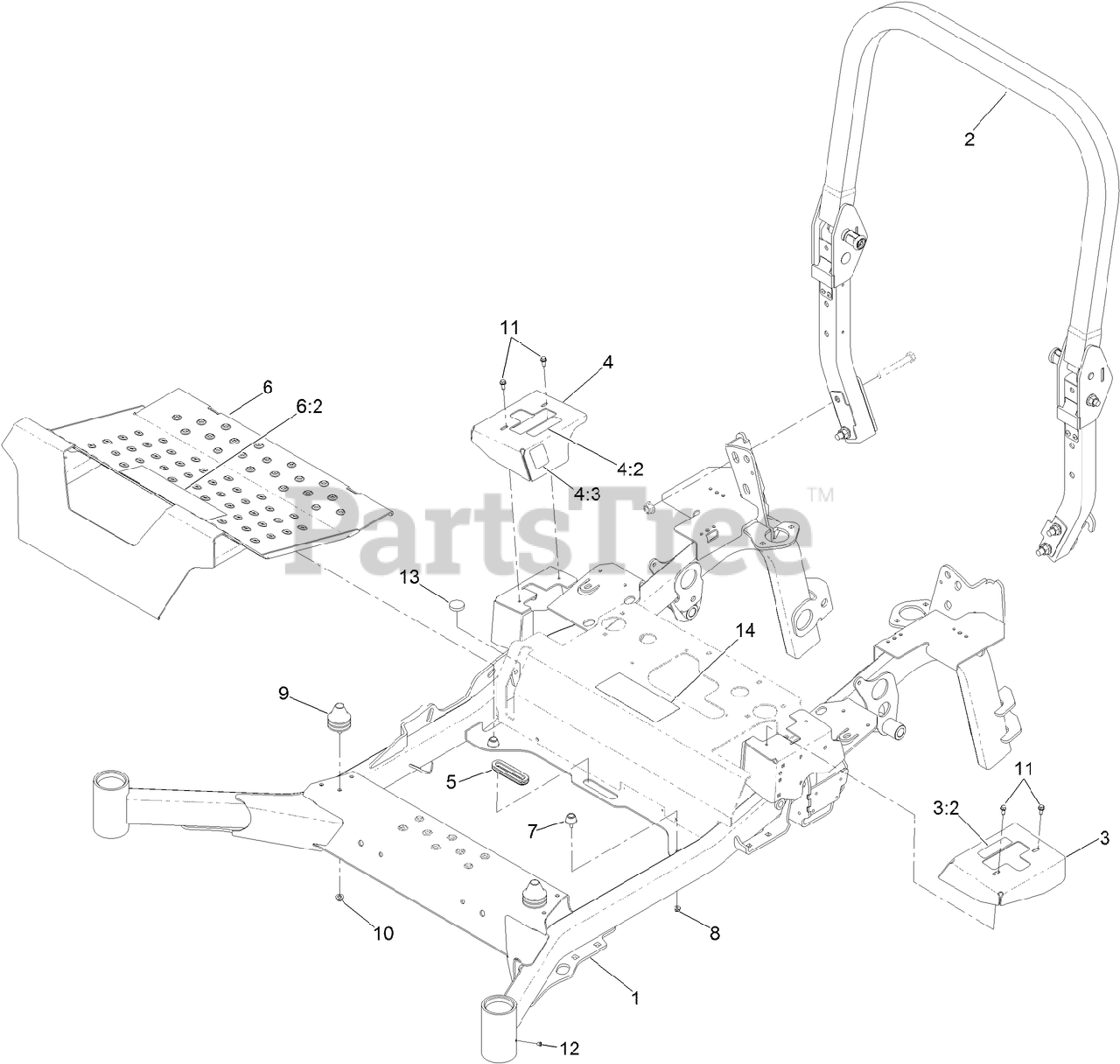

72028 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 407110000 - 408863636) Frame Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Rear-Discharge Deck

Frame Assembly Parts Diagram

  • Title

1

Toro 126-2007-01

FRAME

$2098.99

$

Usually ships in 3-6 days

0

2

Toro 135-5786

ROPS ASM

$698.99

$

Usually ships in 3-6 days

0

3

Toro 126-1821

COVER-MOTION CONTROL, LH

$58.99

$

Usually ships in 3-6 days

0

3:2

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

4

Toro 126-1831

COVER-MOTION CONTROL, RH

$70.99

$

Usually ships in 3-6 days

0

4:2

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

4:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$14.99

$

In Stock, only 1 left!

0

5

Toro 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days

0

6

Toro 126-9066

PAN-FLOOR

$348.99

$

Usually ships in 3-6 days

0

6:2

Toro 126-8383

DECAL-DANGER

$8.99

$

In Stock, only 1 left!

0

7

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

8

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 126-5491

ISOLATOR

$19.99

$

Usually ships in 3-6 days

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

12

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

13

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

14

Toro 126-9279

DECAL-SERVICE AID

$14.99

$

Usually ships in 3-6 days

0
