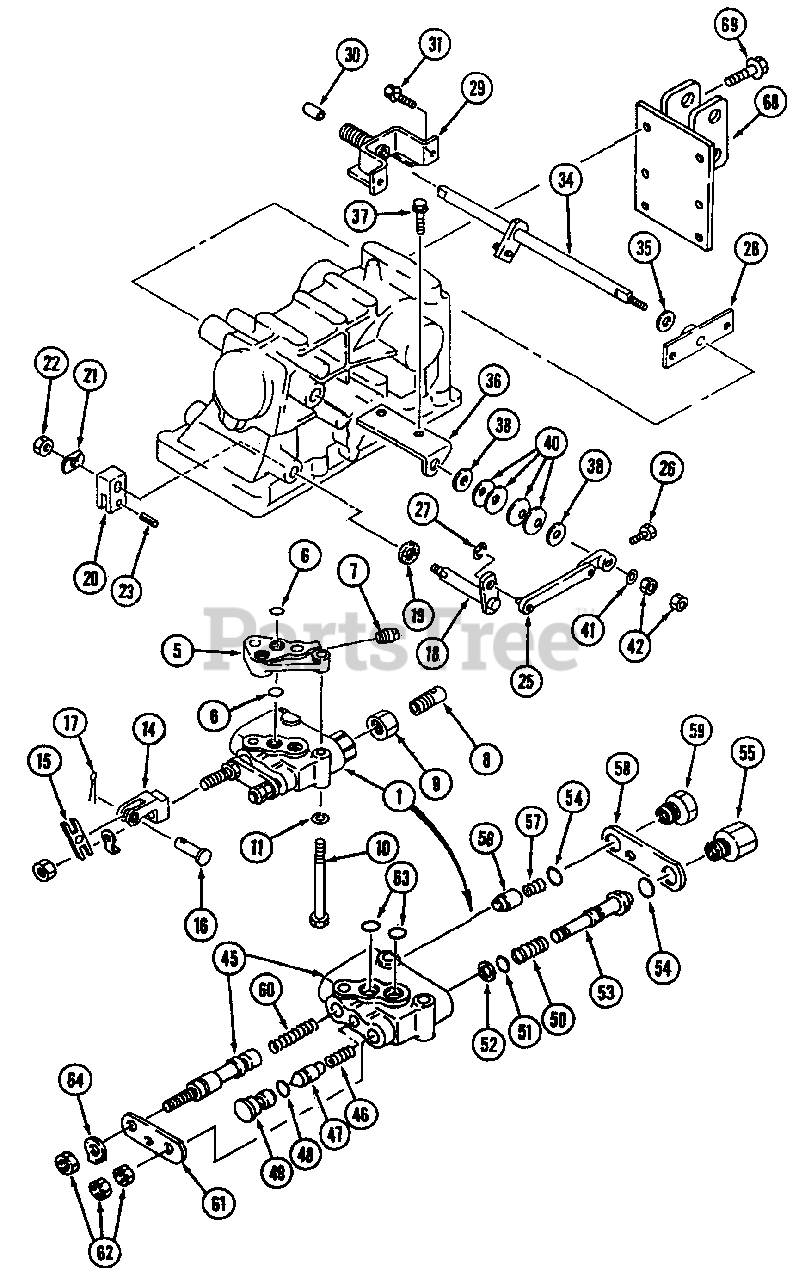

7200 (54A-433D100) - Cub Cadet Compact Tractor Hydraulic Lift (Part 3) Parts Diagram

Compact Tractor

Hydraulic Lift (Part 3) Parts Diagram

  • Title

1

Cub Cadet MA-10052415000

Valve, Control

$

$

Not available

5

Cub Cadet MA-10032421000

Spacer

$

$

Not available

6

Cub Cadet MA-08301100120

O-Ring

$

$

Not available

7

Cub Cadet MA-A6000101000

Plug

$

$

Not available

8

Cub Cadet MA-19652451000

Pipe

$

$

Not available

9

Cub Cadet MA-A3030114002

Nut

$

$

Not available

10

Cub Cadet MA-A0500108070

Bolt

$

$

Not available

11

Cub Cadet MA-A3600100802

Washer

$

$

Not available

14

Cub Cadet MA-10032418001

Joint

$

$

Not available

15

Cub Cadet MA-10032419001

Link, Valve

$

$

Not available

16

Cub Cadet MA-05620106030

Pin, Clevis

$

$

Not available

17

Cub Cadet MA-05200125016

Pin, Split
(Superseded to MA-05200125015)

$

$

Not available

18

Cub Cadet MA-10032414000

Shaft, Link

$

$

Not available

19

Cub Cadet MA-08401012227

Oil, Seal

$7.99

$

Usually ships in 3-6 days

0

20

Cub Cadet MA-10032415000

Shifter, Valve

$

$

Not available

21

Cub Cadet MA-11352426000

Plate

$

$

Not available

22

Cub Cadet MA-A3010108002

Nut

$

$

Not available

23

Cub Cadet MA-05500008016

Pin, Spring

$

$

Not available

25

Cub Cadet MA-19642453AG0

Lever Ass'y.

$

$

Not available

26

Cub Cadet MA-A0400106012

Bolt, W/Washer

$3.99

$

In Stock, only 1 left!

0

27

Cub Cadet MA-07420100600

Ring

$

$

Not available

28

Cub Cadet MA-19642456000

Plate

$

$

Not available

29

Cub Cadet MA-19642457000

Bracket

$

$

Not available

30

Cub Cadet MA-07961012120

Bushing

$

$

Not available

31

Cub Cadet MA-F1540108020

Bolt, W/Washer

$

$

Not available

34

Cub Cadet MA-19652458AG0

Shaft

$

$

Not available

35

Cub Cadet MA-19041264000

Lining Brake

$

$

Not available

36

Cub Cadet MA-10032425AG0

Plate

$

$

Not available

37

Cub Cadet MA-F1550110020

Bolt

$

$

Not available

38

Cub Cadet MA-31212559000

Liner
(Superseded to MA-36301208000)

$

$

Not available

40

Cub Cadet MA-03560101201

Spring, Conical

$

$

Not available

41

Cub Cadet MA-03500140818

Washer

$

$

Not available

42

Cub Cadet MA-A3010108002

Nut

$

$

Not available

45

Cub Cadet MA-10052415000

Body Ass'y.

$

$

Not available

46

Cub Cadet MA-19952436120

Spring

$

$

Not available

47

Cub Cadet MA-10032416180

Valve, Check

$

$

Not available

48

Cub Cadet MA-08301100090

O-Ring

$

$

Not available

49

Cub Cadet MA-10032416190

Seat

$112.99

$

In Stock, only 1 left!

0

50

Cub Cadet MA-11802471190

Spring

$

$

Not available

51

Cub Cadet MA-08300100070

O-Ring

$

$

Not available

52

Cub Cadet MA-11802471180

Ring, Back Up

$16.99

$

Usually ships in 3-6 days

0

53

Cub Cadet MA-10032416140

Poppet

$

$

Not available

54

Cub Cadet MA-08300100150

O-Ring

$

$

Not available

55

Cub Cadet MA-10032416160

Plug

$

$

Not available

56

Cub Cadet MA-10032416170

Valve, Unloader

$

$

Not available

57

Cub Cadet MA-11802471240

Spring
(Superseded to MA-11802471241)

$

$

Not available

58

Cub Cadet MA-69473-10711

Plate

$

$

Not available

59

Cub Cadet MA-10032416150

Plug

$

$

Not available

60

Cub Cadet MA-10052415130

Spring, Return

$

$

Not available

61

Cub Cadet MA-10032416210

Plate

$

$

Not available

62

Cub Cadet MA-A3010108003

Nut

$

$

Not available

63

Cub Cadet MA-08301100120

O-Ring

$

$

Not available

64

Cub Cadet MA-11802471130

Stopper

$

$

Not available

68

Cub Cadet MA-19632442AG0

Bracket, Top Link

$

$

Not available

69

Cub Cadet MA-F1540112030

Bolt, W/Washer

$

$

Not available
