7200 (54A-433D100) - Cub Cadet Compact Tractor Governor Parts Parts Diagram

Compact Tractor

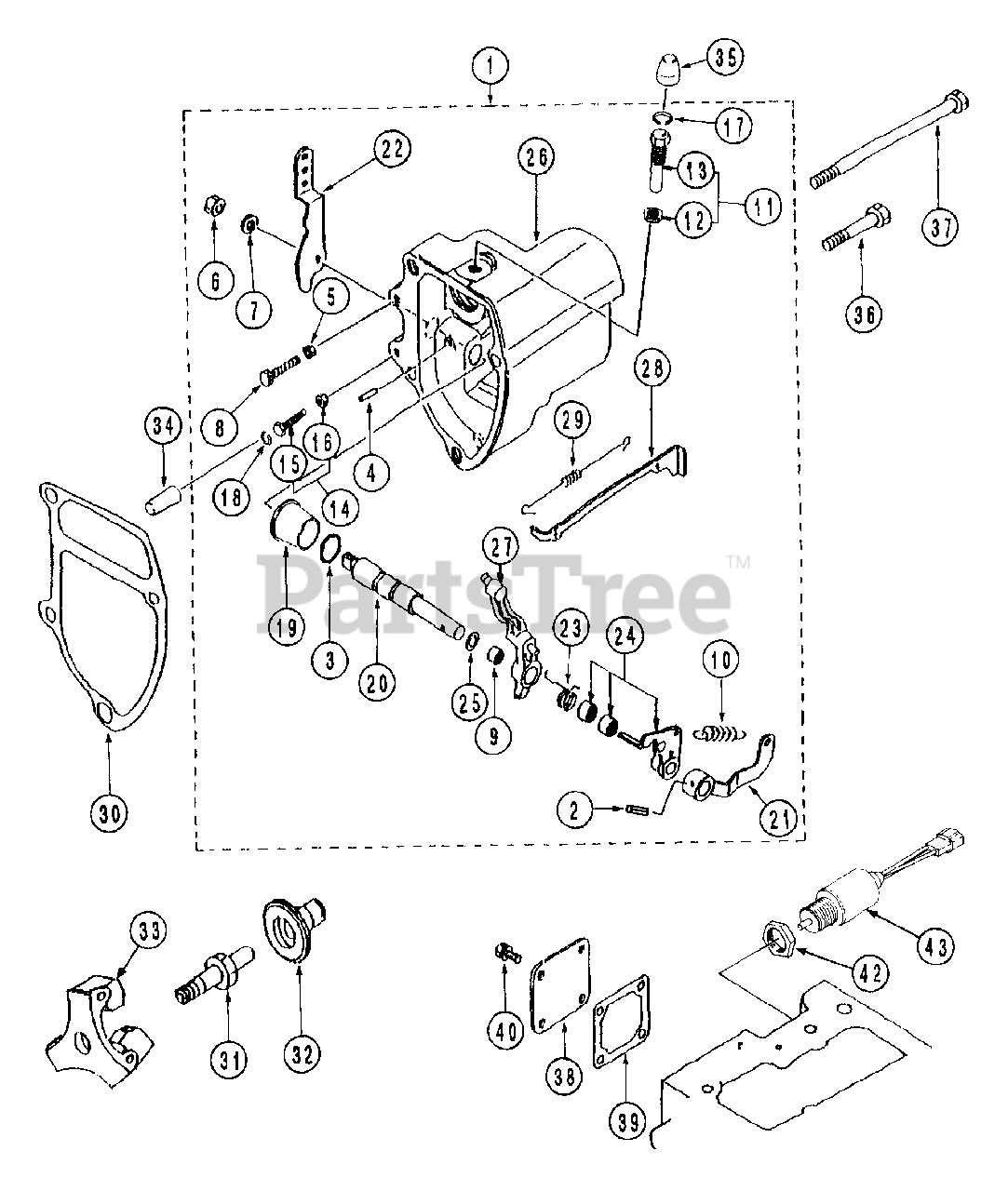

Governor Parts Parts Diagram

  • Title

1

Cub Cadet MA-31B63-11070

Case Ass'y., Governor
(Superseded to MA-31B63-11071)

$

$

Not available

2

Cub Cadet MA-F2850-03020

Pin, Spring
(Superseded to MA-05500003020)

$

$

Not available

3

Cub Cadet MA-08300100101

O-Ring

$

$

Not available

4

Cub Cadet MA-K8712630

Pin, Grooved

$

$

Not available

5

Cub Cadet MA-MF430004

Nut

$

$

Not available

6

Cub Cadet MA-MF430725

Nut, Jam

$

$

Not available

7

Cub Cadet MA-MF450405

Washer, Spring

$

$

Not available

8

Cub Cadet MA-MM33131701

Bolt, Speed Set

$

$

Not available

9

Cub Cadet MA-MM406420

Bearing, Needle

$

$

Not available

10

Cub Cadet MA-MM433673

Spring

$

$

Not available

11

Screw Ass'y., Rack Set

Note: Not used on this product

$

$

Not available

12

Cub Cadet MA-30L63-00600

Nut, Torque Set

$

$

Not available

13

Cub Cadet MA-31A63-05601

Screw, Rack Set

$

$

Not available

14

Cub Cadet MA-30L63-00030

Bolt Ass'y., High Speed

$

$

Not available

15

Cub Cadet MA-30L63-02100

Bolt, High Speed Set

$

$

Not available

16

Cub Cadet MA-30L63-02300

Nut, High Speed Set

$

$

Not available

17

Cub Cadet MA-30L63-00700

C-Ring, Torque Set

$

$

Not available

18

Cub Cadet MA-30L63-02600

C-Ring, High Speed Set

$

$

Not available

19

Cub Cadet MA-31A63-01800

Cover, Governor Shaft

$

$

Not available

20

Cub Cadet MA-31A63-02600

Shaft, Governor

$

$

Not available

21

Cub Cadet MA-31A63-02700

Lever, Gov. Spring

$

$

Not available

22

Cub Cadet MA-31A63-04700

Lever, Speed

$

$

Not available

23

Cub Cadet MA-31A63-05300

Spring, Start

$

$

Not available

24

Cub Cadet MA-31A63-01010

Lever Ass'y., Tension

$

$

Not available

25

Cub Cadet MA-31A63-15200

Shim, Governor Shaft

$

$

Not available

26

Cub Cadet MA-31A63-22100

Case, Governor

$

$

Not available

27

Cub Cadet MA-31A63-15500

Lever Ass'y., Governor

$

$

Not available

28

Cub Cadet MA-31B63-00400

Tie-Rod

$

$

Not available

29

Cub Cadet MA-31B63-00500

Spring, Tie-Rod

$

$

Not available

30

Cub Cadet MA-31A63-12201

Gasket, Governor Case
(Superseded to MA-31A63-12200)

$

$

Not available

31

Cub Cadet MA-31A63-10305

Shaft, Sliding, Sleeve

$

$

Not available

32

Cub Cadet MA-31A63-25101

Sleeve, Sliding

$

$

Not available

33

Cub Cadet MA-31A63-11061

Weight Ass'y., Governor

$

$

Not available

34

Cub Cadet MA-30L63-02400

Cover High Speed Set

$

$

Not available

35

Cub Cadet MA-30L63-00800

Cover, Torque Set

$

$

Not available

36

Cub Cadet MA-F1035-08045

Bolt

$

$

Not available

37

Cub Cadet MA-31A63-02300

Bolt, Gov. Case

$

$

Not available

38

Cub Cadet MA-MM409150

Cover, Tie Rod

$

$

Not available

39

Cub Cadet MA-MM40915101

Gasket, Tie Rod Cover
(Superseded to MA-30A63-00101)

$

$

Not available

40

Cub Cadet MA-F1440106014

Bolt, W/Washer

$

$

Not available

42

Cub Cadet MA-MM409671

Nut

$

$

Not available

43

Cub Cadet MA-30A87-10400

Solenoid Ass'y.
(Superseded to MA-30A87-10090)

$308.99

$

In Stock, only 1 left!
