7200 (54A-433D100) - Cub Cadet Compact Tractor Front Axle 2WD Parts Diagram

Compact Tractor

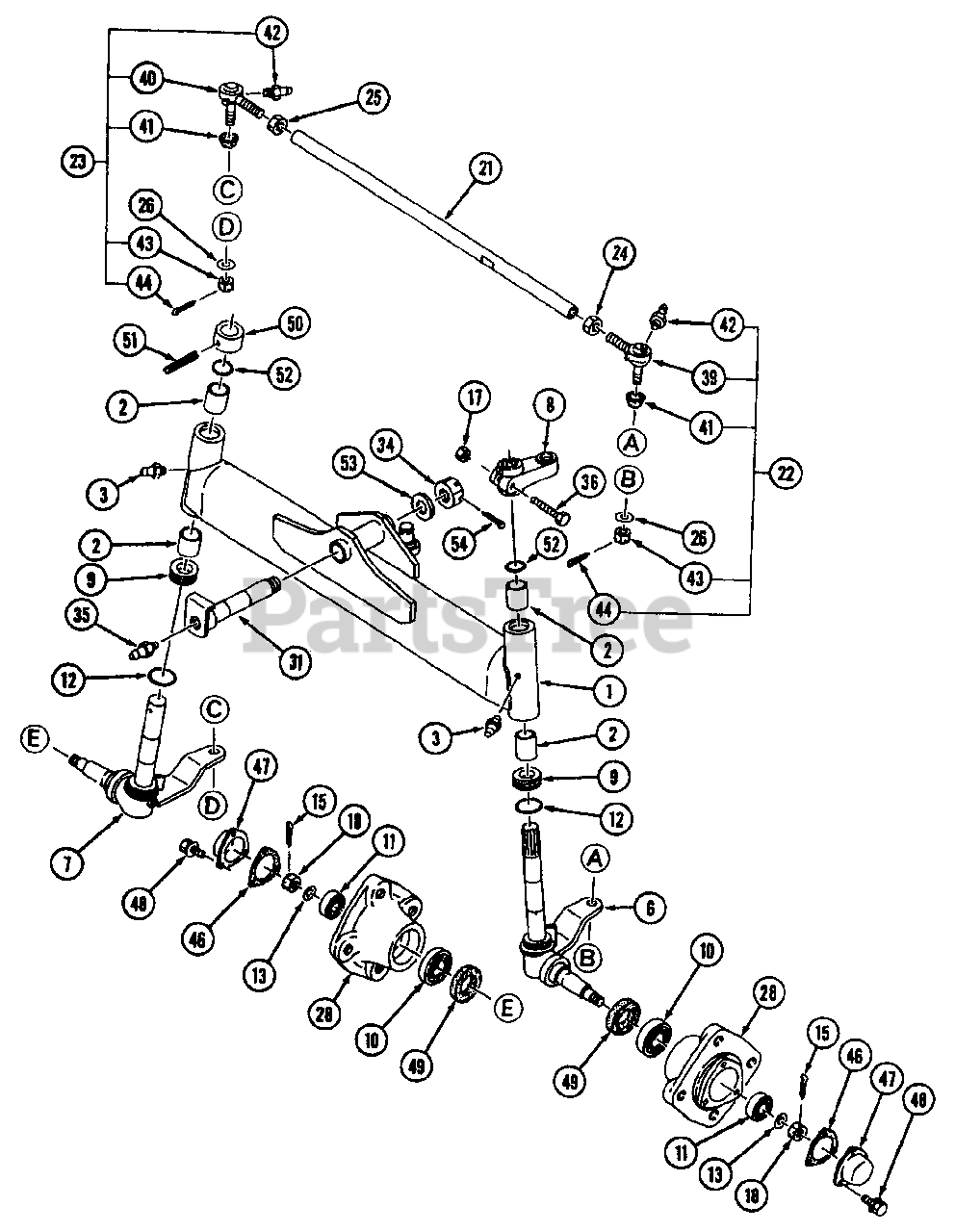

Front Axle 2WD Parts Diagram

  • Title

Cub Cadet MA-19632051AG0

Center Ass'y.

Note: Includes 1-3

$

$

Not available

1

Cub Cadet MA-19632053AG0

Center Axle

$

$

Not available

2

Cub Cadet MA-67541-00800

Bushing

$

$

Not available

3

Cub Cadet MA-A6503100300

Nipple, Grease

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet MA-19632055AG0

Knuckle L.H.

$

$

Not available

7

Cub Cadet MA-19632057AG0

Knuckle R.H.

$

$

Not available

8

Cub Cadet MA-19632058AG0

Arm, Knuckle

$

$

Not available

9

Cub Cadet MA-05642-00400

Bearing

$

$

Not available

10

Cub Cadet MA-07500062050

Bearing

$

$

Not available

11

Cub Cadet MA-07500063040

Bearing

$

$

Not available

12

Cub Cadet MA-08301100380

O-Ring

$

$

Not available

13

Cub Cadet MA-03500051632

Washer
(Superseded to MA-03500151632)

$

$

Not available

15

Cub Cadet MA-05200140032

Pin Split

$

$

Not available

17

Cub Cadet MA-A3030110002

Nut

$

$

Not available

18

Cub Cadet MA-A3130101601

Nut

$

$

Not available

Cub Cadet MA-19632061AG0

Tie Rod Ass'y.

Note: Includes 21-25

$

$

Not available

21

Cub Cadet MA-19632063AG0

Tube

$

$

Not available

22

Cub Cadet MA-10302157AG0

End Ass'y - Tie Rod L.H. Side (R.H. Thread)

Note: Includes Ref. Nos. 41 thru 44

$

$

Not available

23

Cub Cadet MA-10302158AG0

End Ass'y - Tie Rod R.H. Side (L.H. Thread)

Note: Includes Ref. Nos. 41 thru 44

$126.99

$

Usually ships in 3-6 days

0

24

Cub Cadet MA-67354-00201

Nut (R.H. Thread) M17

$

$

Not available

25

Cub Cadet MA-67354-00301

Nut (L.H. Thread) M17

$

$

Not available

26

Cub Cadet MA-13353166000

Washer

$

$

Not available

28

Cub Cadet MA-19832042AG0

Hub, Front Wheel

$

$

Not available

31

Cub Cadet MA-19632067AG0

Pin Center

$

$

Not available

34

Cub Cadet MA-19632068000

Nut

$16.99

$

Usually ships in 3-6 days

0

35

Cub Cadet MA-A6503100300

Nipple, Grease

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet MA-FI550110055

Bolt

$

$

Currently unavailable

39

Order Ref. No. 22

$

$

Not available

40

Order Ref. No. 23

$

$

Not available

41

Cub Cadet MA-67441-00916

Cover, Dust
(Superseded to MA-10302157200)

$

$

Not available

42

Cub Cadet MA-A6500600600

Nipple, Grease

$4.99

$

In Stock, only 1 left!

0

43

Cub Cadet MA-67441-00918

Nut

$

$

Not available

44

Cub Cadet MA-05200130025

Pin, Split

$

$

Not available

46

Cub Cadet MA-69541-06400

Gasket

$

$

Not available

47

Cub Cadet MA-19832048AG0

Cap

$

$

Not available

48

Cub Cadet MA-FI440106012

Bolt

$

$

Currently unavailable

49

Cub Cadet MA-08401325211

Oil Seal

$20.99

$

Usually ships in 3-6 days

0

50

Cub Cadet MA-19632069AG0

Boss

$

$

Not available

51

Cub Cadet MA-05500008045

Pin, Spring

$2.49

$

Usually ships in 3-6 days

0

52

Cub Cadet MA-08301100250

O-Ring

$5.99

$

Usually ships in 3-6 days

0

53

Cub Cadet MA-03500172450

Washer

$

$

Not available

54

Cub Cadet MA-05200150040

Pin, Split

$

$

Not available
