7200 (54A-433D100) - Cub Cadet Compact Tractor Electric System III Parts Diagram

Compact Tractor

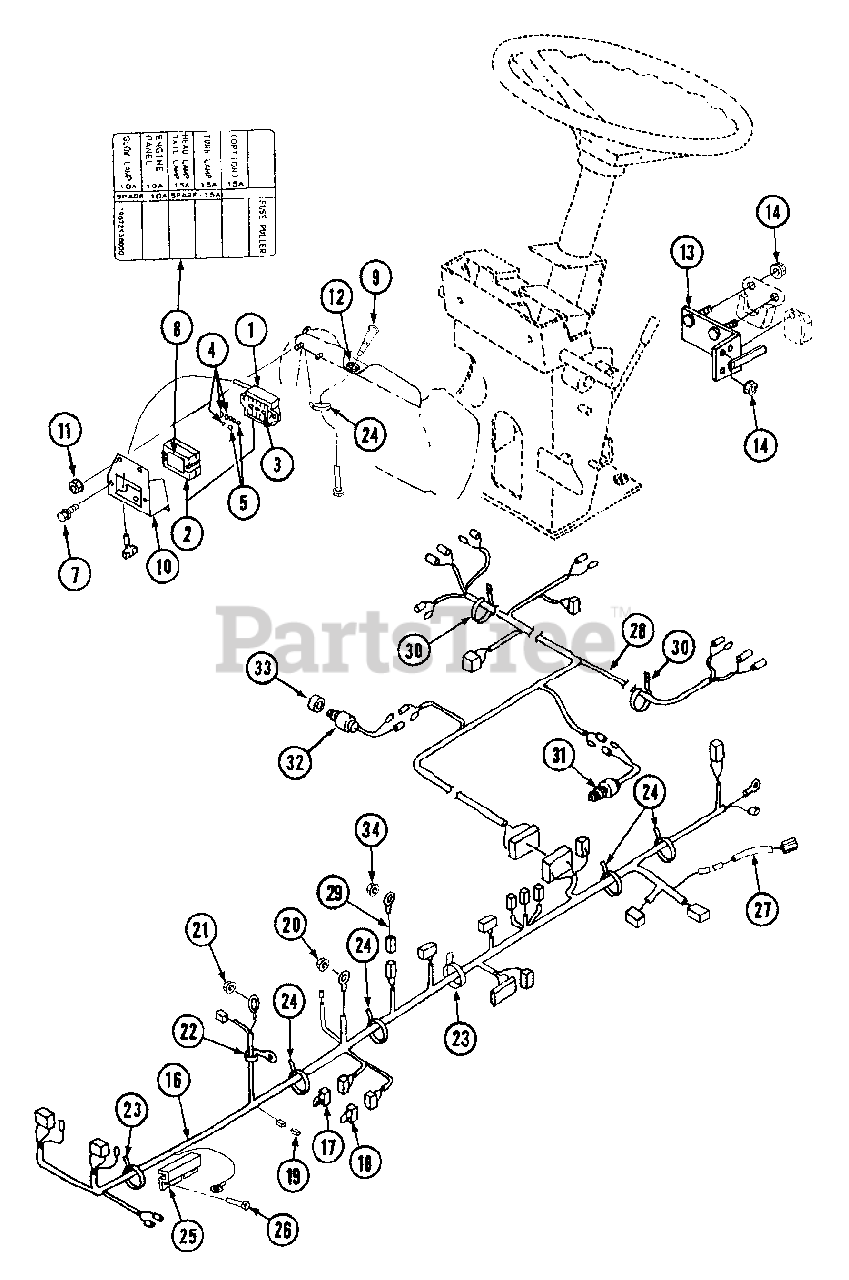

Electric System III Parts Diagram

  • Title

Cub Cadet MA-19672937001

Fuse Box

Note: Includes items 1-5

$

$

Not available

1

Body Assy.

$

$

Not available

2

Cub Cadet MA-35320901200

Cover

$

$

Not available

3

Cub Cadet MA-35320901300

Fuse Puller

$

$

Not available

4

Cub Cadet MA-09801001005

Fuse

$

$

Not available

5

Cub Cadet MA-09801001505

Fuse

$

$

Not available

7

Cub Cadet MA-H1440106016

Bolt

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet MA-19672938000

Mark Fuse

$

$

Not available

9

Cub Cadet MA-10253514000

Cable, Flexible

$51.99

$

Usually ships in 3-6 days

0

10

Cub Cadet MA-19682938BC0

Bracket

$

$

Not available

11

Cub Cadet MA-F3000106000

Nut

$

$

Not available

12

Cub Cadet MA-00401002501

Grommet

$

$

Not available

13

Cub Cadet MA-19672941AG0

Bracket

$

$

Not available

14

Cub Cadet MA-F3000106000

Nut

$

$

Not available

Cub Cadet MA-19672946001

Harness E Assy.

Note: Includes items 16-19

$

$

Not available

Cub Cadet MA-19672946002

Harness E Assy.

$

$

Not available

16

Harness

$

$

Not available

17

Cub Cadet MA-10375502200

Fuse, 60 Amp

$

$

Not available

18

Cub Cadet MA-10375581200

Fuse, 50 Amp

$

$

Not available

19

Cub Cadet MA-35450866200

Diode

$

$

Not available

20

Cub Cadet MA-F3010108000

Nut

$2.49

$

In Stock, only 3 left!

0

21

Cub Cadet MA-F3000106000

Nut

$

$

Not available

22

Cub Cadet MA-00502108063

Clamp

$

$

Not available

23

Cub Cadet MA-00511032070

Band Wire

$

$

Not available

24

Cub Cadet MA-00511070070

Band Wire

$

$

Not available

25

Cub Cadet MA-19672947AG0

Cover

$

$

Not available

26

Cub Cadet MA-H1540108020

Bolt

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet MA-19672949000

Wire Lead

Note: Used with MA-19672946002 Harness on higher Serial No. tractors.

$

$

Not available

28

Cub Cadet MA-19672948000

Harness B

$

$

Not available

29

Cub Cadet MA-19632945000

Harness M

$

$

Not available

30

Cub Cadet MA-00511032070

Band Wire

$

$

Not available

31

Cub Cadet MA-10253505001

Switch, Safety

$

$

Not available

32

Cub Cadet MA-10253505001

Switch

$

$

Not available

33

Cub Cadet MA-19672921000

Collar

$

$

Not available

34

Cub Cadet MA-F3010108001

Nut

$

$

Not available
