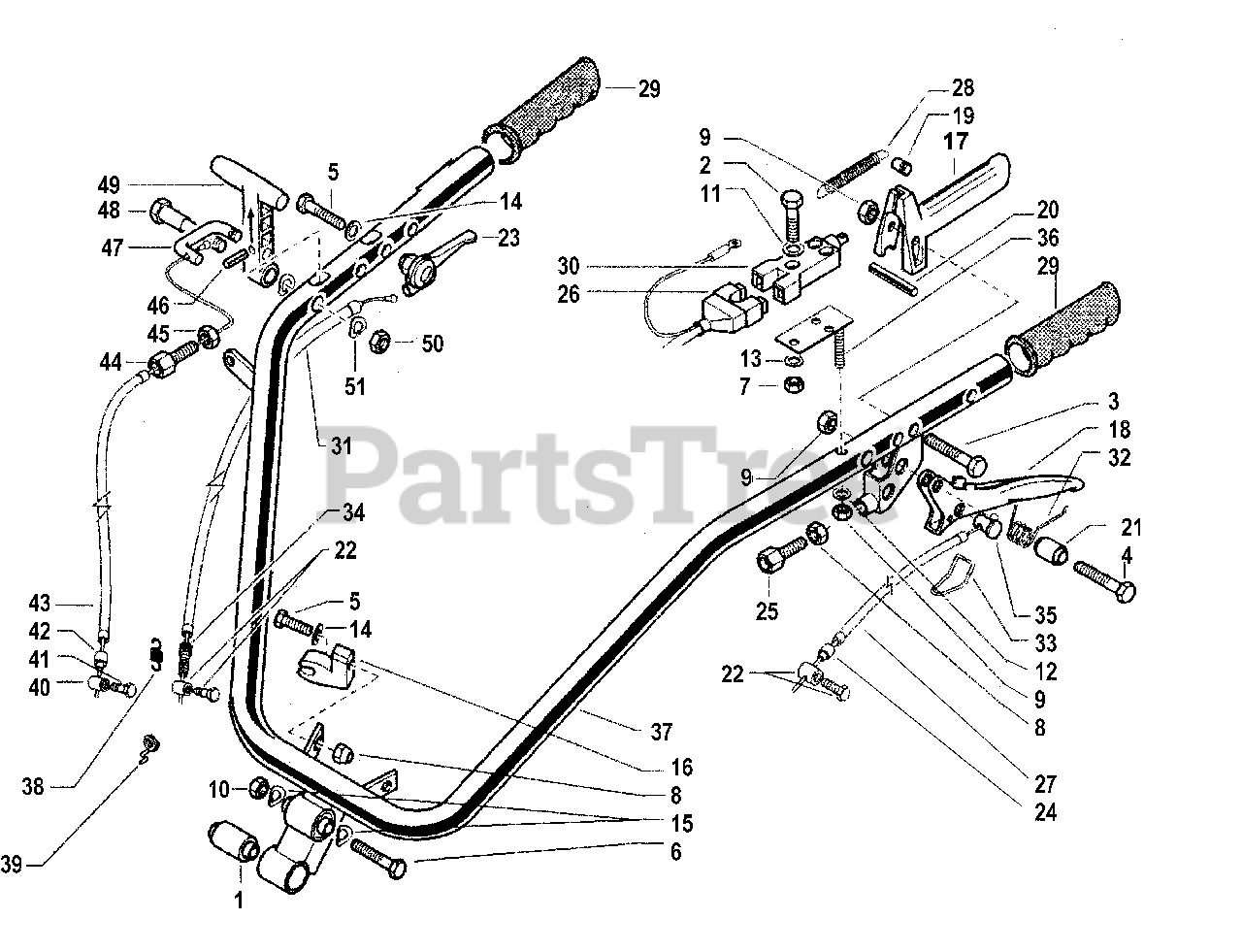

720 - BCS America Two-Wheeled Tractor Handlebar (SN: 000001 - 124663) Parts Diagram

Two-Wheeled Tractor

Handlebar (SN: 000001 - 124663) Parts Diagram

  • Title

1

BCS America 300.10103

SILENTBLOCK

$34.99

$

Usually ships in 5-8 days

0

2

BCS America 311.11086

SCREW TE M4X25

$1.49

$

In Stock, Qty 8

0

3

BCS America 311.11097

SCREW, TE M6X45

$1.49

$

In Stock, only 2 left!

0

4

BCS America 311.12089

SCREW, M6X25

$1.49

$

In Stock, only 3 left!

0

5

BCS America 311.12153

SCREW, M8X35

$1.49

$

In Stock, only 2 left!

0

6

BCS America 311.12217

SCREW, M10X80

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 31211040

NUT, M4

$0.99

$

In Stock, only 2 left!

0

8

BCS America 31241080

NUT, M8

$0.99

$

In Stock, Qty 11

0

9

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

10

BCS America 31241100

NUT, M10

$1.49

$

In Stock, only 2 left!

0

11

BCS America 314.11043

FLAT WASHER, M4.3

$0.99

$

In Stock, Qty 8

0

12

BCS America 314.11064

WASHER, FLAT 6.4

$0.99

$

In Stock, Qty 10

0

13

BCS America 314.23043

LOCK WASHER, M4.3

$0.99

$

In Stock, Qty 6

0

14

BCS America 314.23084

WASHER, M8.4

$0.99

$

In Stock, Qty 10

0

15

BCS America 314.23105

WAVE WASHER, M10.4

$1.49

$

In Stock, Qty 5

0

16

BCS America 55243340

SUPPORT, CONTROL ROD

$

$

Not available

17

BCS America 552.48041

MOTOR STOP LEVER

$24.99

$

In Stock, only 3 left!

0

18

BCS America 561.47655

CLUTCH LEVER

$45.99

$

In Stock, only 1 left!

0

19

BCS America 561.47711

SPRING PIN

$3.99

$

In Stock, only 1 left!

0

20

BCS America 561.48037

LEVER STOP FOR MOTOR STOP

$3.49

$

Usually ships in 5-8 days

0

21

BCS America 561.50361

LEVER SPACER

$4.99

$

In Stock, only 1 left!

0

22

BCS America 580.48002

CLAMP, CABLE

$3.99

$

In Stock, only 1 left!

0

23

BCS America 580.02538

THROTTLE LEVER

$34.99

$

In Stock, only 1 left!

0

24

BCS America 580.42167

CABLE END

$2.99

$

In Stock, only 2 left!

0

25

BCS America 580.42202

SCREW, ADJUSTING, M8

$6.99

$

In Stock, only 1 left!

0

26

BCS America 580.47568

SWITCH WIRING HARNESS

$29.99

$

Usually ships in 5-8 days

0

27

BCS America 580.47629

CLUTCH CABLE

$28.99

$

In Stock, only 1 left!

0

28

BCS America 580.47712

SPRING

$14.99

$

In Stock, only 1 left!

0

29

BCS America 58048000

GRIP

$7.49

$

Usually ships in 5-8 days

0

30

BCS America 580.48009

STOP SWITCH

$32.99

$

In Stock, only 1 left!

0

31

580.57344

THROTTLE CABLE

$

$

Not available

32

BCS America 580.50345

LEVER SPRING

$3.49

$

In Stock, only 1 left!

0

33

BCS America 58051670

HOOK

$5.49

$

Usually ships in 5-8 days

0

34

BCS America 580.48002

CABLE ADJUSTER

$3.99

$

In Stock, only 1 left!

0

35

BCS America 581.50313

BARREL

$11.99

$

Usually ships in 5-8 days

0

36

BCS America 590.47709

SWITCH PLATE

$32.99

$

In Stock, only 1 left!

0

37

BCS America 59057110

HANDLE BAR

$

$

Not available

38

BCS America 580.56153

SPRING

$9.49

$

Usually ships in 5-8 days

0

39

BCS America 580.56158

SPRING

$21.99

$

Usually ships in 5-8 days

0

40

BCS America 58042200

CANLE CLAMP PIN

$6.49

$

Usually ships in 5-8 days

0

41

BCS America 311.11091

CAPSCREW M6X14

$1.49

$

In Stock, only 4 left!

0

42

BCS America 580.42167

SHEATH END

$2.99

$

In Stock, only 2 left!

0

43

BCS America 580.57286

REVERSER CABLE

$26.99

$

In Stock, only 1 left!

0

44

BCS America 580.42202

ADJUSTING SCREW

$6.99

$

In Stock, only 1 left!

0

45

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

46

BCS America 34213020

SPLIT PIN 4X20

$1.49

$

Usually ships in 5-8 days

0

47

BCS America 561.57332

PIN, REVERSER CABLE

$45.99

$

Usually ships in 5-8 days

0

48

BCS America 561.48285

PIN

$20.99

$

In Stock, only 1 left!

0

49

BCS America 552.48283

LEVER, REVERSER

$34.99

$

In Stock, only 3 left!

0

50

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

51

BCS America 314.23084

WASHER LOCK

$0.99

$

In Stock, Qty 10

0

52

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0
