720 (1690231) - AGCO Garden Tractor, 19.5hp Hood, Wheel Guard & Seat Group Parts Diagram

Garden Tractor, 19.5hp

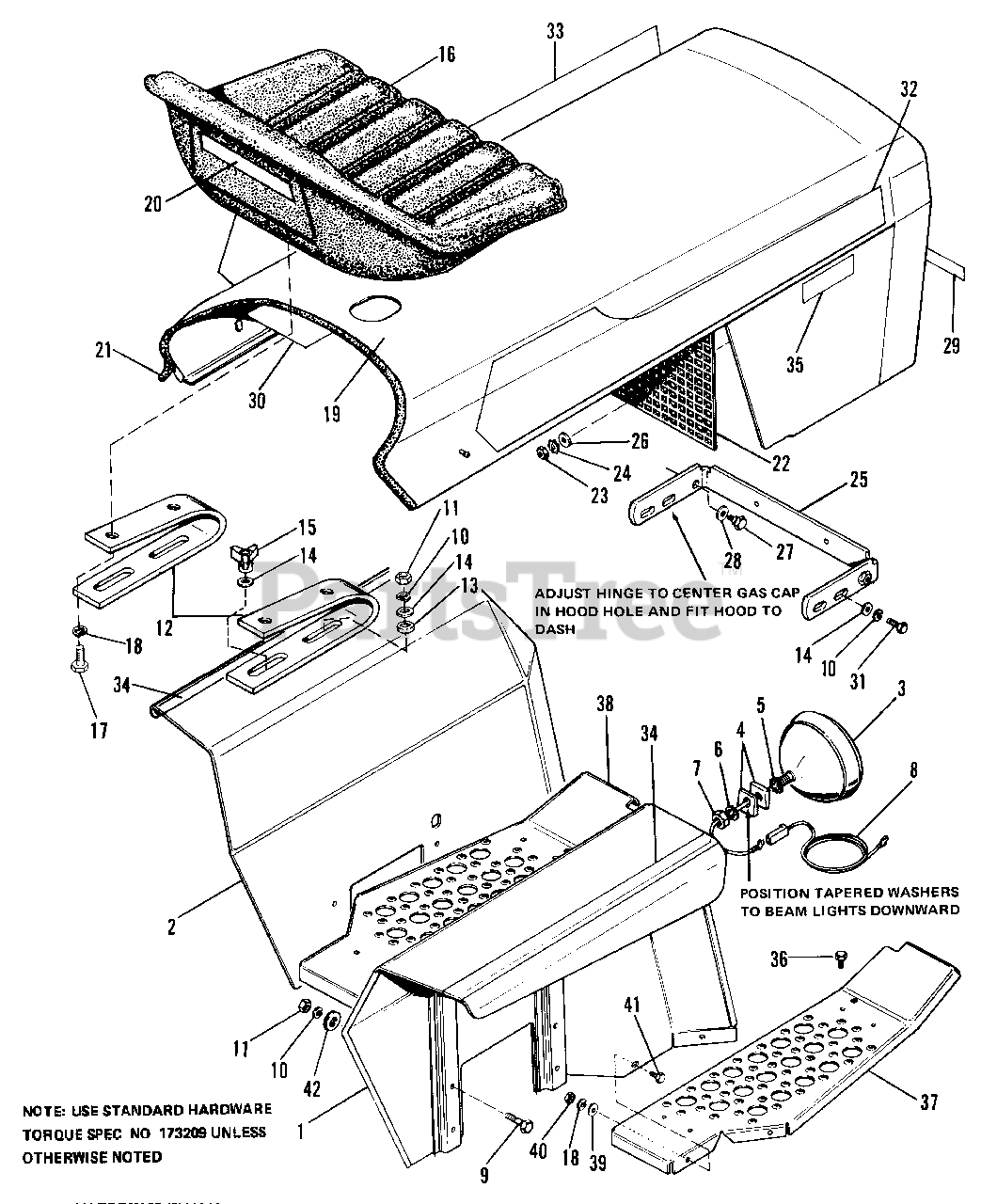

Hood, Wheel Guard & Seat Group Parts Diagram

  • Title

1

Simplicity 174932

GUARD ASSY, Wheel, R.H.

$

$

Not available

2

Simplicity 174933

GUARD ASSY, Wheel, L.H.

$

$

Not available

3

Simplicity 170462

LAMP ASSY

$

$

Not available

4

Simplicity 170461

WASHER, Special

$

$

Not available

5

Simplicity 2820428

LOCKWASHER, External Tooth, 1/2

$

$

Not available

6

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

7

Simplicity 2813744

NUT, Hex, Jam, 1/2-13

$

$

Not available

8

Simplicity 172911

WIRE

$

$

Not available

9

Simplicity 2821971

CAPSCREW, Hex, 3/8-16 x 1-3/4

$

$

Not available

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

12

Simplicity 1656902

SPRING, Seat

$

$

Not available

13

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

14

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 1657092

KNOB, Three Arm

$

$

Not available

16

Simplicity 1686711SM

SEAT

$450.99

$

Usually ships in 2-12 days

0

17

Simplicity 2817397

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1651838

HOOD ASSY

$

$

Not available

20

Simplicity 106718

DECAL, Simplicity

$

$

Not available

21

Simplicity 172155

MOULDING

$

$

Not available

22

Simplicity 176758

GRILLE

$

$

Not available

23

Simplicity 2816621

NUT, Hex, No. 10-24

$

$

Not available

24

Simplicity 2822711

LOCKWASHER, Ext. Tooth, No. 10

$

$

Not available

25

Simplicity 175243

HINGE ASSY

$

$

Not available

26

Simplicity 172894

WASHER

$

$

Not available

27

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

28

Simplicity 175234

WASHER

$

$

Not available

29

Simplicity 173811

DECAL, Power Lift

$

$

Not available

30

Simplicity 176676

DECAL, Service

$

$

Not available

31

Simplicity 2808127

CAPCSREW, Hex, 3/8-16 x 3/4

$

$

Not available

32

Simplicity 1669441SM

DECAL, Hood, R.H.

$

$

Not available

33

Simplicity 1669442SM

DECAL, Hood, L.H.

$125.99

$

Usually ships in 2-12 days

0

34

Simplicity 1657098

DECAL, Fender

$

$

Not available

35

Simplicity 1657099

DECAL, 9020

$

$

Not available

36

Simplicity 2825009

SCREW, Tapping, 5/16-18 x 7/8

$

$

Not available

37

Simplicity 170457

PLATFORM, R.H.

$

$

Not available

38

Simplicity 170458

PLATFORM, L.H.

$

$

Not available

39

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

40

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 2819318

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

42

Simplicity 2824356

WASHER, Plain, 13/32 x 1-1/2

$

$

Not available
