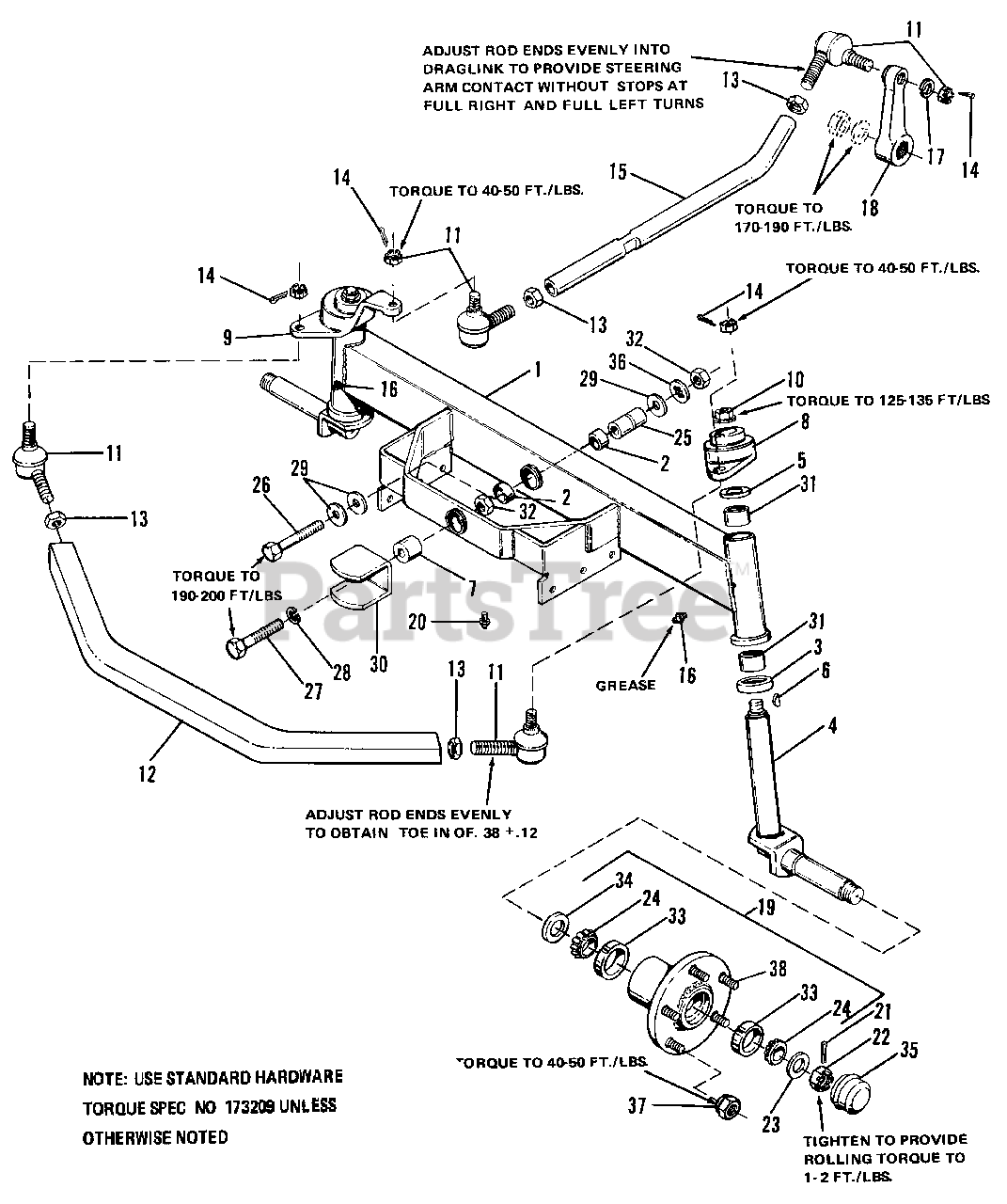

720 (1690231) - AGCO Garden Tractor, 19.5hp Front Axle Group Parts Diagram

Garden Tractor, 19.5hp

Front Axle Group Parts Diagram

  • Title
1

Simplicity 1653781

AXLE ASSY

$

$

Not available

$

$

Not available

3

Simplicity 1650380

BEARING, Thrust

$

$

Not available

4

Simplicity 1653783

SPINDLE ASSY

$

$

Not available

5

Simplicity 2105050

WASHER, 1-1/8 I.D.-1-3/4 O.D.

$

$

Not available

6

Simplicity 2805126SM

KEY, Woodruff, No. 15, 1/4 x 1

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1652047

BEARING, Reach

$

$

Not available

8

Simplicity 1652050

ARM, Steering, L.H.

$

$

Not available

9

Simplicity 1653788

ARM, Steering, R.H.

$

$

Not available

10

Simplicity 1651985

NUT, Lock, Flange, 3/4-16

$

$

Not available

11

Simplicity 2172499SM

JOINT, Ball, R.H.

$107.99

$

Usually ships in 2-12 days

0

12

$

$

Not available

13

Simplicity 931908

NUT, Hex, Jam, 11/16-18

$

$

Not available

14

Simplicity 2818452

PIN, Cotter, 1/8-3/4

$

$

Not available

15

Simplicity 171509

LINK, Drag

$

$

Not available

16

Simplicity 2814687

FITTING, Lube, 1/4-28

$

$

Not available

17

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

18

Simplicity 172196

ARM, Pitman

$

$

Not available

19

$

$

Not available

20

Simplicity 2172761SM

FITTING, Grease

$6.99

$

Usually ships in 2-12 days

0

21

Simplicity 2823500

PIN, Cotter, 1/8 x 1

$

$

Not available

22

Simplicity 930636

NUT, Hex, Jam, 3/4 16

$

$

Not available

23

$

$

Not available

24

Simplicity 2170835SM

BEARING, Cone

$

$

Not available

25

Simplicity 2168092

SPACER, Axle

$

$

Not available

26

Simplicity 922381

CAPSCREW, Hex, 5/8-11 x 3-1/2

$

$

Not available

27

Simplicity 926164

CAPSCREW, Hex, 5/8-11 x 2-3/4

$

$

Not available

28

Simplicity 2817373

LOCKWASHER, 5/8-11

$

$

Not available

29

Simplicity 168093

WASHER, Thrust

$

$

Not available

30

$

$

Not available

$31.99

$

Usually ships in 2-12 days

0

32

Simplicity 1654237

NUT, Hex, Heavy

$

$

Not available

33

Simplicity 2170836SM

CUP, Bearing
(Superseded to 5020883SM)

$9.49

$

In Stock, Qty 11

0

34

$43.99

$

Usually ships in 2-12 days

0

35

$

$

Not available

36

Simplicity 2818906

LOCKWASHER, In-Tooth, 5/8

$

$

Not available

37

$6.49

$

In Stock, only 3 left!

0

38

Simplicity 1663805SM

WHEEL, Bolt

$5.49

$

Usually ships in 2-12 days

0
