72 - Cub Cadet Garden Tractor Service Engines Parts Diagram

Garden Tractor

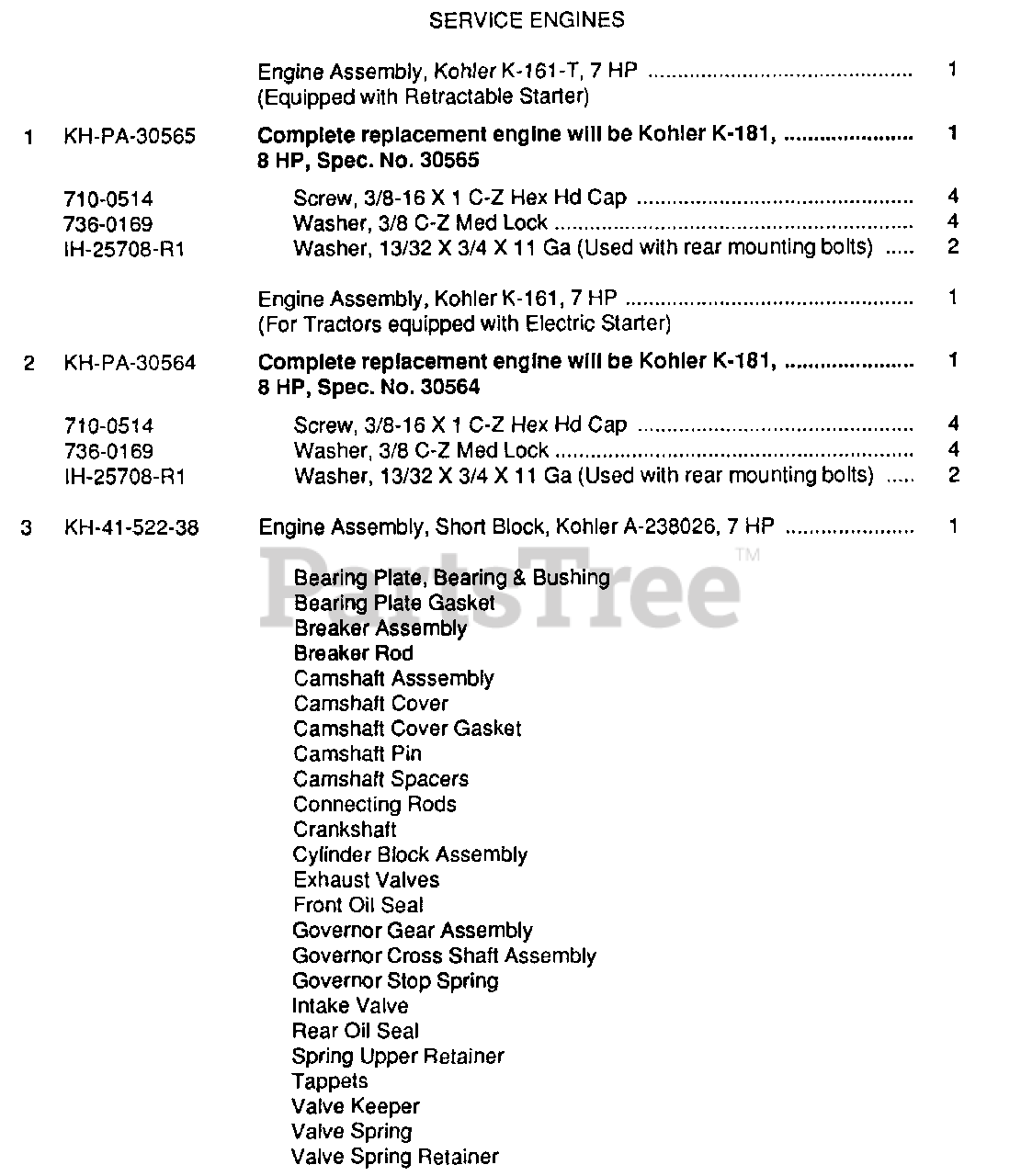

Service Engines Parts Diagram

  • Title

Engine Assembly, Kohler K-161-T, 7 HP

Note: (Equipped with Retractable Starter)

$

$

Not available

1

Cub Cadet KH-PA-30565

Note: Complete replacement engine will be Kohler K-181, 8 HP, Spec. No. 30565

$

$

Currently unavailable

Cub Cadet 710-0514

Screw, 3/8-16 x 1 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-25708-R1

Washer, 13/32 x 3/4 x 11 Ga
(Superseded to 936-0275)

Note: (Used with rear mounting bolts)

$

$

Not available

Engine Assembly, Kohler K-161, 7 HP

Note: (For Tractors equipped with Electric Starter)

$

$

Not available

2

Cub Cadet KH-PA-30564

Complete replacement engine will be Kohler K-181, 8 HP, Spec. No 30564

Note: Complete replacement engine will be Kohler K-181, 8 HP, Spec. No. 30564

$

$

Currently unavailable

Cub Cadet 710-0514

Screw, 3/8-16 x 1 C-Z Hex Hd Cap

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-25708-R1

Washer, 13/32 x 3/4 x 11 Ga
(Superseded to 936-0275)

Note: (Used with rear mounting bolts)

$

$

Not available

3

Cub Cadet KH-41-522-38

Engine Assembly, Short Block, Kohler A-238026, 7 HP

$

$

Currently unavailable

Bearing Plate, Bearing & Bushing

$

$

Not available

Bearing Plate Gasket

$

$

Not available

Breaker Assembly

$

$

Not available

Breaker Rod

$

$

Not available

Camshaft Assembly

$

$

Not available

Camshaft Cover

$

$

Not available

Camshaft Cover Gasket

$

$

Not available

Camshaft Pin

$

$

Not available

Camshaft Spacers

$

$

Not available

Connecting Rods

$

$

Not available

Crankshaft

$

$

Not available

Cylinder Block Assembly

$

$

Not available

Exhaust Valves

$

$

Not available

Front Oil Seal

$

$

Not available

Governor Gear Assembly

$

$

Not available

Governor Cross Shaft Assembly

$

$

Not available

Governor Stop Spring

$

$

Not available

Intake Valve

$

$

Not available

Rear Oil Seal

$

$

Not available

Spring Upper Retainer

$

$

Not available

Tappets

$

$

Not available

Valve Keeper

$

$

Not available

Valve Spring

$

$

Not available

Valve Spring Retainer

$

$

Not available
