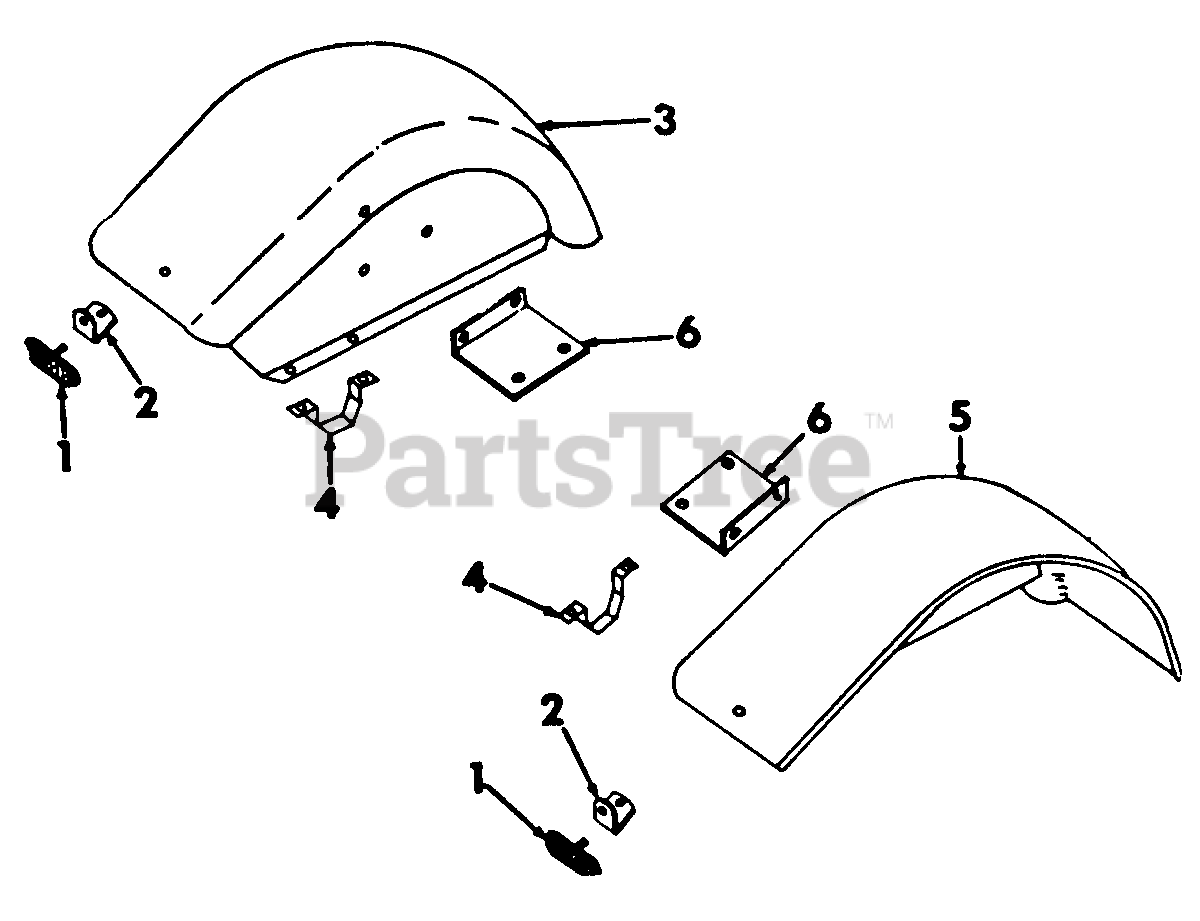

72 - Cub Cadet Garden Tractor Fenders Parts Diagram

Garden Tractor

Fenders Parts Diagram

  • Title

1

~NLA

Reflector, Fender

$

$

Not available

2

~NLA

Bracket, Reflector

$

$

Not available

Cub Cadet BS-231082

Nut, 10-24 C-Z Hex

$

$

Not available

Screw, 10-24 X 3/8 C-Z Rd Hd Sltd*

$

$

Not available

Cub Cadet 736-0722

Washer, No. 10 C-Z Med Lock

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet IH-384743-R91

Fender Assy, LH

$

$

Currently unavailable

4

~NLA

Clamp, Fender Mounting

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 Cd Hex Hd Cap

$

$

Not available

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

5

~NLA

Fender Assy, RH

$

$

Not available

6

Cub Cadet IH-384747-R1

Bracket, Fender Frame Mounting

$

$

Currently unavailable

~NLA

Bracket, Fender Frame Mounting

Note: (For wide base tires only)

$

$

Not available

Cub Cadet 712-0798

Nut, 5/16-18 C-Z Hex

$4.49

$

In Stock, Qty 12

0

Cub Cadet 710-3100

Screw, 5/16-18 X 5/8 C-Z Hex Hd Cap

$

$

Not available

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
