72 - Cub Cadet Garden Tractor Engine-K161 Series-7 Hp Parts Diagram

Garden Tractor

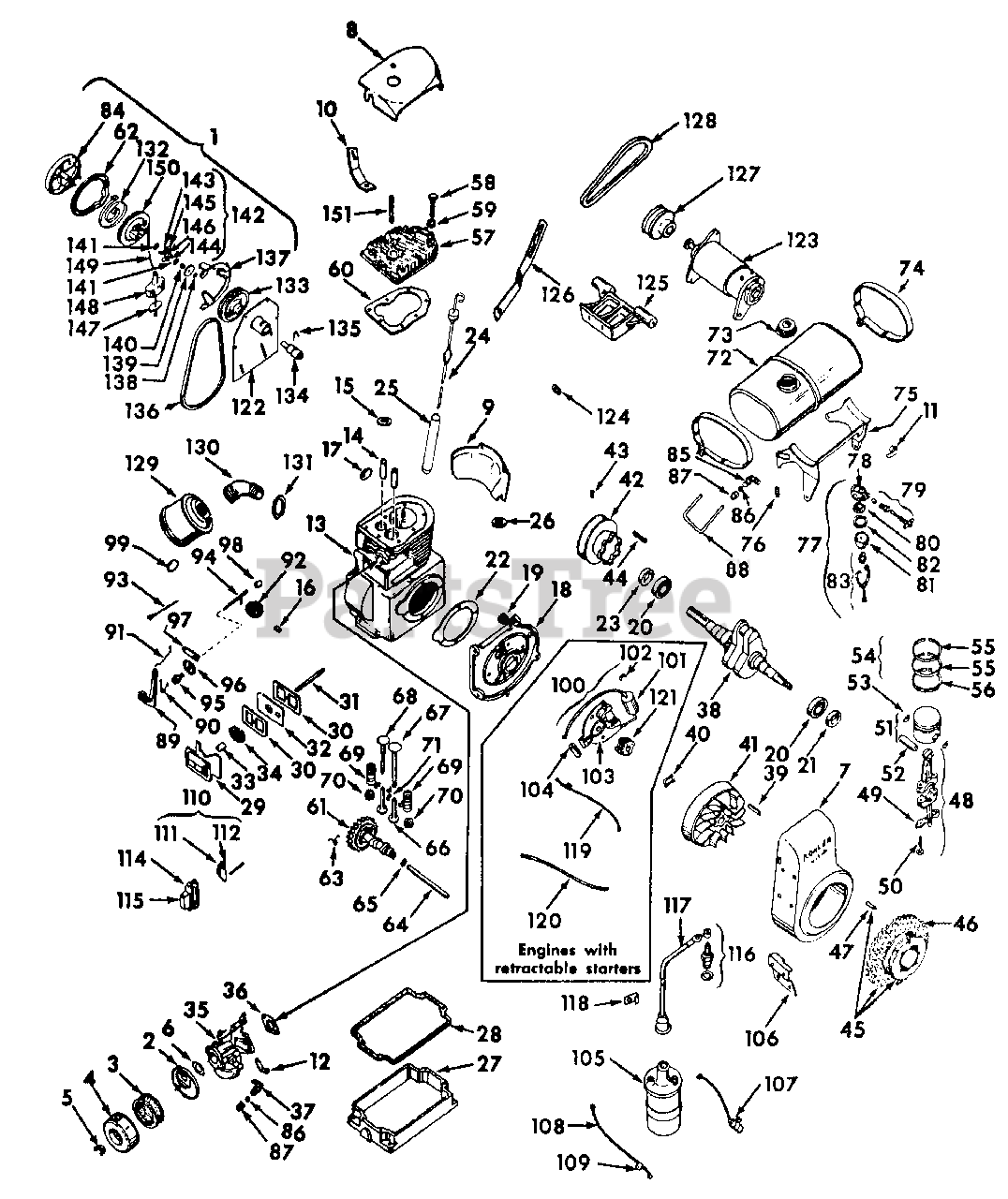

Engine-K161 Series-7 Hp Parts Diagram

  • Title

1

~NLA

Starter Assy, Retractable

$

$

Not available

Nut, 1/4-20 Hex *

$

$

Not available

Screw, 1/4-20 X 3/4 Hex Hd Cap *

$

$

Not available

Washer, 1/4 Med Lock *

$

$

Not available

2

Cub Cadet KH-230838

Base, Air Cleaner

$

$

Not available

Screw, 8-32 X 3/8 Rd Hd Mach *

$

$

Not available

Washer, No. 8 Med Lock *

$

$

Not available

3

Cub Cadet IH-385163-R2

Element, Air Cleaner Filter
(Superseded to IH-385163-R3)

$

$

Not available

4

Cub Cadet KH-230839

Cover, Air Cleaner

$

$

Not available

~NLA

Washer, Packing

$

$

Not available

5

Cub Cadet KH-X-276-7

Nut, Air Cleaner Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

6

Cub Cadet KH-220537

Gasket, Air Cleaner

$

$

Not available

7

~NLA

Housing Assy, Blower

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/4 C-Z Slt Hex Hd Mach*

$

$

Not available

~NLA

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Slt Hex Hd Mach

$

$

Not available

8

Cub Cadet KH-234402

Baffle, Cylinder Head Air

Note: (Engines with retractable starter)

$

$

Currently unavailable

Cub Cadet KH-234402

Baffle, Cylinder Head Air

Note: (Engines with electric starter)

$

$

Currently unavailable

9

Cub Cadet KH-230054

Baffle, Cylinder Air

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 3/8 C-Z Hex Hd Mach*

$

$

Not available

10

~NLA

Brace, Retractable Starter

$

$

Not available

Screw, 1/4-20 X 1 C-Z Hex Hd Cap*

$

$

Not available

Cub Cadet 712-0267

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Washer, 1/4 Med Lock *

$

$

Not available

Cub Cadet 736-0463

Washer, 17/64 X 9/16 X .062

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-263515-R91

Clip, Choke Cable

$

$

Currently unavailable

12

Cub Cadet KH-232683

Bracket, Choke

Note: (also order clip)

$

$

Not available

Cub Cadet KH-235603

Clip, Speed

$

$

Not available

13

Crankcase Assy

Note: (For service order short block)

$

$

Not available

14

Cub Cadet KH-230007-S

Guide, Valve

$25.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-230170

Insert, Exhaust Valve

$

$

Not available

16

~NLA

Shaft, Governor

$

$

Not available

17

Cub Cadet IH-172548

Plug, 1-1/8 Expansion

$

$

Currently unavailable

18

~NLA

Plate, Crankcase Brg

$

$

Not available

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 1/2 X .062, Copper

$

$

Not available

19

~NLA

Plug, 5/8 Button, Crankcase Brg Plate

$

$

Not available

20

Cub Cadet IH-ST213

Bearing, Crankcase Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

21

Cub Cadet KH-X-583-1

Seal, Crankcase Brg Plate Oil

Note: (Blower Housing End)

$

$

Not available

22

Cub Cadet KH-230071

Gasket, Brg Plate

$

$

Not available

23

Cub Cadet KH-X-583

Seal, Crankcase Oil

Note: (Flywheel Pulley End)

$

$

Currently unavailable

24

Cub Cadet KH-A-231725

Dipstick

$

$

Not available

25

Cub Cadet KH-231726

Tube, Oil Fill

$

$

Not available

26

Cub Cadet KH-230265

Insert, Intake Valve

$

$

Not available

27

Cub Cadet KH-41-199-08

Base, Oil Pan

$

$

Not available

28

Cub Cadet KH-41-041-03

Gasket, Oil Pan Base

$

$

Not available

~NLA

Screw w/Spring Lock Washer, 5/16-18 X 1 C-Z Hex Hd Mach

$

$

Not available

Cub Cadet KH-X-75-10

Plug, 3/8-18 Auto Sq-Hd Filler & Drain
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

29

~NLA

Cover w/Filter, Breather

$

$

Not available

30

Cub Cadet KH-230048

Gasket, Breather

$

$

Not available

31

~NLA

Stud, Breather Cover

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 17

0

Washer, 1/4 Med Lock *

$

$

Not available

32

Cub Cadet KH-230066

Plate Assy, Breather

$

$

Not available

33

Cub Cadet KH-230046

Seal, Breather

$

$

Not available

34

Cub Cadet KH-231419

Filter, Breather
(Superseded to KH-231419-S)

$8.49

$

In Stock, Qty 6

0

35

Cub Cadet KH-41-853-11

Carburetor Assy

Note: (For components see list of parts under details of carburetor)

$

$

Not available

Cub Cadet KH-X-140-1

Screw w/Internal Tooth Lock Washer, 1/4-20 X 3/4 C-Z Hex Hd Cap

$

$

Not available

36

Cub Cadet KH-210223

Gasket, Carburetor

$

$

Not available

37

Cub Cadet IH-401967-R1

Elbow, Carburetor to Fuel Line

$

$

Not available

38

Cub Cadet KH-230450

Crankshaft

$

$

Not available

39

Cub Cadet 714-3016

Key, Crankshaft

$

$

Not available

40

~NLA

Washer, Flywheel Tension

Note: (Engines with retractable starter)

$

$

Not available

41

Cub Cadet KH-231276

Flywheel

$

$

Not available

42

Cub Cadet KH-231591

Pulley w/Clutch Drive Plate, Flywheel

$

$

Not available

43

Cub Cadet KH-X-60-50

Screw, Flywheel Pulley Set

$

$

Not available

44

Cub Cadet IH-452779-R1

Key, 1/4 X 7/8 Sq Parallel
(Superseded to IH-452779-R2)

$

$

Not available

45

Cub Cadet KH-41-071-04

Cup Assy, Flywheel Drive

$

$

Not available

Cub Cadet IH-121358

Nut, 5/8-18 C-Z Hex

$

$

Currently unavailable

Screw, 8-32 X 1/4 C-Z Hex Hd Tap*

$

$

Not available

Washer, 5/8 Lt Lock *

$

$

Not available

Cub Cadet 759-3287

Cup w/Pulley

$

$

Not available

46

~NLA

Screen, Drive Cup Grass

$

$

Not available

47

Cub Cadet IH-385293-R1

Pin, Flywheel Drive Cup
(Superseded to KH-X-56-7)

$

$

Not available

48

Cub Cadet KH-B-230039

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-B-230039-10

Rod Assy, Connecting, .010 U/S

$

$

Not available

49

Cub Cadet KH-230525

Lock, Connecting Rod Screw

$

$

Not available

50

~NLA

Screw, Connecting Rod

$

$

Not available

51

Cub Cadet KH-41-874-01

Piston Assy, Std

$

$

Not available

Cub Cadet KH-41-874-02

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-41-874-03

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-41-874-04

Piston Assy, .030 O/S

$

$

Not available

52

~NLA

Pin, Piston, Std

$

$

Not available

~NLA

Pin, Piston, .005 O/S

$

$

Not available

~NLA

Pin, Piston, .010 O/S

$

$

Not available

53

Cub Cadet KH-230004

Retainer, Piston Pin

$

$

Not available

54

Cub Cadet KH-231424

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-231425

Ring Set, Piston, .010 O/S

$

$

Not available

Cub Cadet KH-231426

Ring Set, Piston, .020 O/S

$

$

Not available

Cub Cadet KH-231427

Ring Set, Piston, .030 O/S

$

$

Not available

55

Ring, Compression

Note: (Not serviced separately, order ring set)

$

$

Not available

56

Ring, Oil Control

Note: (Not serviced separately, order ring set)

$

$

Not available

57

Cub Cadet KH-41-755-25

Head, Cylinder

$

$

Not available

58

Cub Cadet KH-41-086-02

Screw, Cylinder Head

$

$

Not available

59

Cub Cadet KH-220534

Washer, Cylinder Head

$

$

Not available

60

Cub Cadet KH-41-041-10

Gasket, Cylinder Head

$

$

Not available

61

~NLA

Camshaft Assy

Note: (Engines with retractable starter)

$

$

Not available

Cub Cadet KH-A-230155-S

Camshaft Assy

Note: (Engines with electric starter)

$

$

Not available

62

~NLA

Flange, Intermediate

$

$

Not available

63

Cub Cadet KH-47-089-01

Spring, Camshaft Actuating

$

$

Not available

64

Cub Cadet KH-41-386-03

Pin, Camshaft

$

$

Currently unavailable

65

Cub Cadet KH-230293

Shim, Camshaft, .005

$

$

Not available

Cub Cadet KH-230294

Shim, Camshaft, .010

$

$

Not available

66

~NLA

Tappet, Valve

$

$

Not available

67

Cub Cadet KH-230008

Valve, Intake

$

$

Not available

68

Cub Cadet KH-230710

Valve, Exhaust

$

$

Not available

69

Cub Cadet KH-230010

Spring, Valve

$

$

Not available

70

Cub Cadet KH-230011

Retainer, Valve Spring

$

$

Not available

71

Cub Cadet IH-46209D

Key, Valve Spring Retainer

Note: (Order in sets of two)

$

$

Currently unavailable

72

Cub Cadet KH-230164

Tank Assy, Fuel w/Filler Cap
(Superseded to KH-41-065-19-S)

$

$

Not available

73

Cub Cadet KH-236655

Cap, Fuel Filler

$

$

Not available

74

Cub Cadet KH-A-234167

Strap, Fuel Tank

$

$

Not available

Cub Cadet IH-20244-R1

Nut, 1/4-20 Esna Stop

$

$

Not available

Screw, 1/4-20 X 1-1/4 C-Z Hex Hd Cap*

$

$

Not available

75

Cub Cadet KH-234168

Bracket Assy, Fuel Tank

$

$

Not available

76

~NLA

Nipple, 1/8 X 3/4 C-Z Pipe

$

$

Not available

77

Cub Cadet KH-A-210101

Filter Assy, Fuel
(Superseded to KH-25-755-22)

$67.99

$

Usually ships in 2-5 days

0

78

Cub Cadet KH-210478

Body, Fuel Filter

$

$

Not available

79

Cub Cadet KH-A-210480

Valve Assy, Needle

$

$

Not available

80

Cub Cadet KH-210479

Screen, Filter

$

$

Not available

81

Cub Cadet KH-210467

Bowl, Fuel Filter Glass

$

$

Not available

82

Cub Cadet KH-210468

Gasket, Fuel Filter Bowl

$6.99

$

In Stock, Qty 5

0

83

Cub Cadet KH-A-210477

Bail Assy, Fuel Filter Bowl

$

$

Not available

84

Cub Cadet KH-230796

Cover, Retractable Starter

$

$

Not available

85

Cub Cadet KH-X-380-1

Connector, Fuel Tank
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

86

Cub Cadet IH-144526-H1

Sleeve, Fuel Line
(Superseded to KH-220547-S)

$6.99

$

In Stock, only 1 left!

0

87

Cub Cadet KH-220786

Nut, Fuel Line

$

$

Not available

88

Cub Cadet IH-401968-R1

Line, Fuel Filter to Carburetor Fuel

$

$

Not available

89

Cub Cadet KH-232614

Lever, Governor

$

$

Not available

Cub Cadet KH-X-67-46

Screw, 8-32 X 1/4 C-Z Slt Hex Hd Tap

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 17

0

Screw, 1/4-20 X 1 C-Z Hex Hd Cap*

$

$

Not available

Cub Cadet 736-0463

Washer, 9/32 X 5/8 x .065 C-Z

$4.49

$

In Stock, Qty 20+

0

90

Cub Cadet KH-232617

Spring, Governor

$

$

Not available

91

Cub Cadet KH-230078

Linkage, Governor

$

$

Not available

92

Cub Cadet KH-A-235743-S

Gear Assy, Governor

$79.99

$

Usually ships in 2-5 days

0

~NLA

Washer, 13/32 X 3/4 X .031 C-Z

$

$

Not available

93

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 15/32 X .047, Copper

$

$

Not available

94

Cub Cadet KH-230540-S

Shaft Assy, Governor Cross

$116.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-58

Washer, 7/32 X 3/8 X .031 C-Z

$

$

Not available

95

Cub Cadet KH-230476

Bushing, Cross Shaft
(Superseded to KH-230476-S)

$

$

Not available

96

Cub Cadet KH-230149

Disc, Governor Regulating

$

$

Not available

~NLA

Screw, 2 X 3/16 C-Z Rd Hd Blunt Metal Drive

$

$

Not available

97

Cub Cadet KH-230477

Bracket, Speed Control

$

$

Not available

98

Cub Cadet KH-234866

Bearing, Cross Shaft Needle

$

$

Not available

99

Cub Cadet IH-172548

Plug, 1-1/8 Expansion

$

$

Currently unavailable

100

Magneto Assy

Note: (Discontinued for service)

$

$

Not available

101

~NLA

Coil, Magneto

$

$

Not available

102

~NLA

Clamp, Magneto Coil

$

$

Not available

103

Cub Cadet KH-A-235741

Stator, Magneto

$

$

Not available

Cub Cadet 710-0377

Screw w/Internal Tooth Lock Washer, 1/4-20 X 5/8 C-Z Hex Hd Cap

$

$

Not available

104

~NLA

Condenser, Magneto

$

$

Not available

Cub Cadet IH-131954

Screw, 8-32 X 1/4 C-Z Fil Hd Slt Mach

$

$

Not available

105

~NLA

Coil, Ignition

$

$

Not available

Screw w/Spring Lock Washer, 1/4-20 X 13/16 C-Z Slt Hex Hd Mach*

$

$

Not available

Cub Cadet 736-0173

Washer, 17/64 X 3/4 X .062 C-Z

$4.49

$

In Stock, Qty 20+

0

106

~NLA

Bracket, Coil Mounting

$

$

Not available

107

Cub Cadet IH-62188-C1

Condenser, Ignition Coil
(Superseded to KH-230722-S)

$31.99

$

In Stock, only 1 left!

0

108

~NLA

Cable Assy, Condenser to Breaker

Note: (Engines with retractable starter)

$

$

Not available

Cub Cadet KH-A-230371

Cable Assy, Condenser to Breaker

Note: (Engines with electric starter)

$

$

Not available

109

Cub Cadet KH-230249

Clip, Condenser to Breaker Cable

$

$

Not available

110

Cub Cadet KH-47-150-03

Bracket & Breaker Assy

$

$

Not available

111

Cub Cadet IH-62189-C1

Breaker Point Set
(Superseded to KH-47-150-03)

$

$

Not available

112

Bracket, Point Breaker

Note: (Not serviced separately, order KH-47-150-03)

$

$

Not available

Screw w/Washer, 8-32 X 1/4 Znd Slt Pan Hd Mach*

$

$

Not available

Cub Cadet KH-41-411-01

Rod, Breaker

$

$

Not available

114

Cub Cadet KH-232535

Cover, Breaker
(Superseded to KH-232535-S)

$

$

Not available

Cub Cadet KH-X-131-1

Screw w/Internal Tooth Lock Washer, 10-24 X 3/8 C-Z Slt Rd Hd Mach

$

$

Not available

115

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 3 left!

0

116

Cub Cadet IH-J8C

Plug, Spark (Champion)
(Superseded to 759-3339)

$4.49

$

In Stock, Qty 19

0

117

Cub Cadet KH-238057

Kit, Hi-Tension Spark Plug Cable Lead
(Superseded to KH-238057-S)

$

$

Not available

118

~NLA

Clip, Spark Plug Cable

$

$

Not available

119

~NLA

Cable Assy, Ground

$

$

Not available

120

~NLA

Sleeve, Ground Cable

$

$

Not available

121

Cub Cadet KH-230360

Magnet, Magneto

$

$

Currently unavailable

122

~NLA

Bracket, Retractable Starter

$

$

Not available

Cub Cadet 710-3000

Screw, 3/8-16 X 3/4 C-Z Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Cub Cadet IH-138542

Washer, 3/8 C-Z Int Tooth Lock

$

$

Not available

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X .065 C-Z

$7.49

$

In Stock, Qty 6

0

123

Motor Generator

Note: (For components see list of parts under details of motor generator)

$

$

Not available

Cub Cadet 710-0376

Screw, 5/16-18 X 1 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Washer, 5/16 Med Lock *

$

$

Not available

124

Cub Cadet KH-231149

Shim, Motor Generator Mounting Bolt

$

$

Not available

~NLA

Shim, Motor Generator Mounting Bolt

$

$

Not available

125

~NLA

Bracket, Motor Generator Mounting

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock *

$

$

Not available

126

~NLA

Brace, Motor Generator Adjusting

$

$

Not available

Cub Cadet 710-0118

Screw, 5/16-18 X 3/4 C-Z Hex Hd Cap
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Washer, 5/16 Med Lock *

$

$

Not available

Washer, 3/8 Med Lock *

$

$

Not available

Cub Cadet IH-280185-R1

Washer, 11/32 X 3/4 X .074 C-Z

$

$

Currently unavailable

127

Cub Cadet KH-231278

Pulley, Motor Generator Drive
(Superseded to KH-231278-S)

$72.99

$

Usually ships in 2-5 days

0

128

Cub Cadet IH-401960-R1

Belt, Motor Generator Drive

$17.99

$

In Stock, only 4 left!

0

129

Cub Cadet KH-230410

Muffler, Exhaust
(Superseded to KH-230410-S)

$

$

Not available

130

Cub Cadet KH-231820

Elbow, Exhaust Muffler
(Superseded to KH-231820-S)

$95.99

$

Usually ships in 2-5 days

0

131

Cub Cadet 712-0250

Nut, Exhaust Muffler Elbow Lock

$

$

Not available

132

~NLA

Spring, Starter Rewind

$

$

Not available

133

~NLA

Pulley Assy, Retractable Starter

$

$

Not available

134

Cub Cadet IH-606164-C91

Bearing, Retractable Starter Ball

$

$

Currently unavailable

135

Cub Cadet IH-355768-R1

Retainer, Retractable Starter Ball Brg

$

$

Currently unavailable

136

Cub Cadet IH-214878-R1

Belt, Retractable Starter

$

$

Not available

137

~NLA

Flange, Mounting

$

$

Not available

~NLA

Screw, 10-24 X 3/4 Parkerized Slt Fil Hd Mach

$

$

Not available

~NLA

Screw, 10-24 X 5/8 Parkerized Slt Fil Hd Mach

$

$

Not available

138

Cub Cadet IH-379310-R1

Ring, Retaining

$

$

Currently unavailable

139

~NLA

Washer, Brake Retainer

$

$

Not available

140

Cub Cadet KH-220613

Spring, Brake

$

$

Not available

141

~NLA

Washer, Brake Fiber

$

$

Not available

142

Cub Cadet KH-A-220616

Shoe Assy, Friction

$

$

Not available

143

~NLA

Plate, Friction Shoe Spring

$

$

Not available

144

~NLA

Spring, Friction Shoe

$

$

Not available

145

Cub Cadet KH-220618

Plate, Friction Shoe

$

$

Currently unavailable

146

Cub Cadet KH-220617

Lever, Friction Shoe Brake

$

$

Currently unavailable

147

~NLA

Insert, Handle

$

$

Not available

148

Cub Cadet IH-405563-R91

Handle, Starter Cord

$

$

Not available

149

Cub Cadet KH-231686

Cord, Starter

$

$

Not available

150

~NLA

Rotor, Starter

$

$

Not available

151

Cub Cadet IH-393609-R1

Stud, Cylinder Head

Note: (Tractors w/retractable starter)

$

$

Currently unavailable

Cub Cadet 712-0267

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet KH-41-004-01

Kit, Engine Gasket
(Superseded to KH-41-755-06)

$

$

Not available
