72 - Cub Cadet Garden Tractor Carburetor Parts Diagram

Garden Tractor

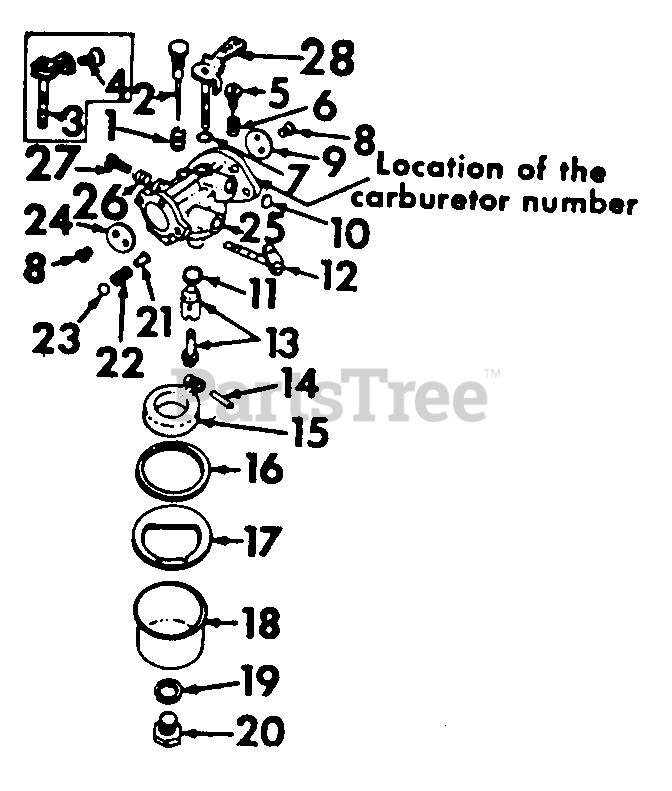

Carburetor Parts Diagram

  • Title

Cub Cadet KH-41-853-11

Carburetor Assy

$

$

Not available

1

Cub Cadet KH-200383

Spring, High Speed Needle

$

$

Not available

2

Cub Cadet KH-200410

Needle Assy, High Speed

$

$

Not available

3

Not used in this application

$

$

Not available

4

Not used in this application

$

$

Not available

5

Cub Cadet KH-200438

Screw, Idle Adjusting

$

$

Not available

6

Cub Cadet KH-200380

Spring, Idle Adjusting Screw

$8.49

$

Usually ships in 2-5 days

0

7

Seal, Throttle Shaft Dust

Note: (Furnish complete Carburetor Assy)

$

$

Not available

8

Screw, Choke & Throttle Valve

Note: (Furnish complete Carburetor Assy)

$

$

Not available

9

Valve Assy, Throttle

Note: (Furnish complete Carburetor Assy)

$

$

Not available

10

Plug, 3/8 Aluminum Expansion

Note: (Furnish complete Carburetor Assy)

$

$

Not available

11

Gasket, Needle Seat

Note: (Furnish Repair Kit KH-25-757-01)

$

$

Not available

12

Shaft & Lever Assy, Choke

Note: (Furnish complete Carburetor Assy)

$

$

Not available

13

Needle & Seat Assy w/Spring

Note: (Furnish Repair Kit KH-25-757-01)

$

$

Not available

14

Cub Cadet KH-200376

Pin, Float & Lever

$

$

Not available

15

Cub Cadet KH-25-757-03

Float & Lever Assy
(Superseded to KH-25-757-03-S)

$

$

Not available

16

Cub Cadet KH-200375

Gasket, Fuel Bowl Ring

$7.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-25-041-02

Gasket, Fuel Bowl

$

$

Not available

18

Cub Cadet KH-200418

Bowl, Fuel

$

$

Not available

19

Gasket, Fuel Bowl Screw

Note: (Furnish Repair Kit KH-25-757-01)

$

$

Not available

20

Cub Cadet KH-41-100-01

Screw, Fuel Bowl
(Superseded to KH-41-100-01-S)

$

$

Not available

21

Plug, Idle Passage Rivet

Note: (Furnish complete Carburetor Assy)

$

$

Not available

22

Spring, Choke Shaft

Note: (Furnish complete Carburetor Assy)

$

$

Not available

23

Ball, Choke Shaft

Note: (Furnish complete Carburetor Assy)

$

$

Not available

24

Valve Assy, Choke

Note: (Furnish complete Carburetor Assy)

$

$

Not available

25

Body, Carburetor

Note: (Order Carburetor Assy)

$

$

Not available

26

Cub Cadet KH-232555

Spring, Throttle

$

$

Not available

27

Cub Cadet KH-232556

Screw, Throttle Lever Adjusting

$

$

Not available

28

Shaft & Lever Assy, Throttle

Note: (Furnish complete Carburetor Assy)

$

$

Not available

Cub Cadet KH-25-757-01

Kit, Carburetor Repair

Note: (Consists of Ref No. 13, 14, 16, 17 & 19)

$22.99

$

In Stock, Qty 6

0
