72-10BP01 (A-100) - Toro 36" Lawn Tractor (1977) ENGINE AND TRANSMISSION Parts Diagram

36" Lawn Tractor

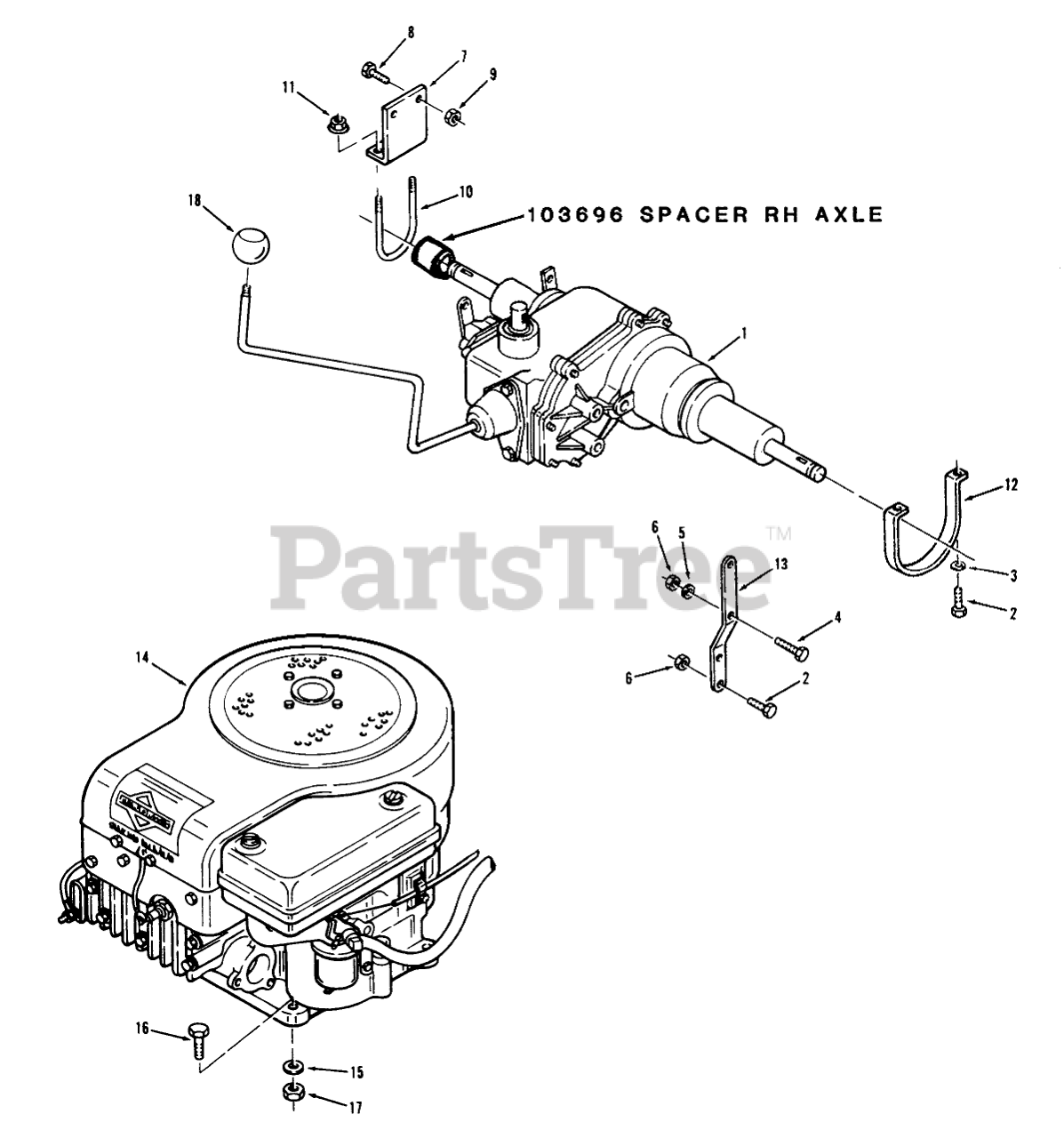

ENGINE AND TRANSMISSION Parts Diagram

  • Title

1

Toro 106059

Assy-Transmission

$

$

Not available

2

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

3

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

4

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

5

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

6

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

7

Toro 103580

Bracket-Trans. Mtg.

$

$

Not available

8

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

9

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

10

Toro 103428

"U" Bolt Axle Mount

$

$

Not available

11

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

12

Toro 103579

Girth-Transmission

$

$

Not available

13

Toro 103383

Bar-Trans Support

$

$

Not available

14

Toro 105441

Engine-10 HP Briggs

$

$

Currently unavailable

15

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

16

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

17

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

18

Toro 102871

SHIFT KNOB

$

$

Not available

14

Toro 105440

Engine-8 HP Briggs

$

$

Currently unavailable
