72-10BP01 (A-100) - Toro 36" Lawn Tractor (1977) DRIVE BELT AND PULLEYS Parts Diagram

36" Lawn Tractor

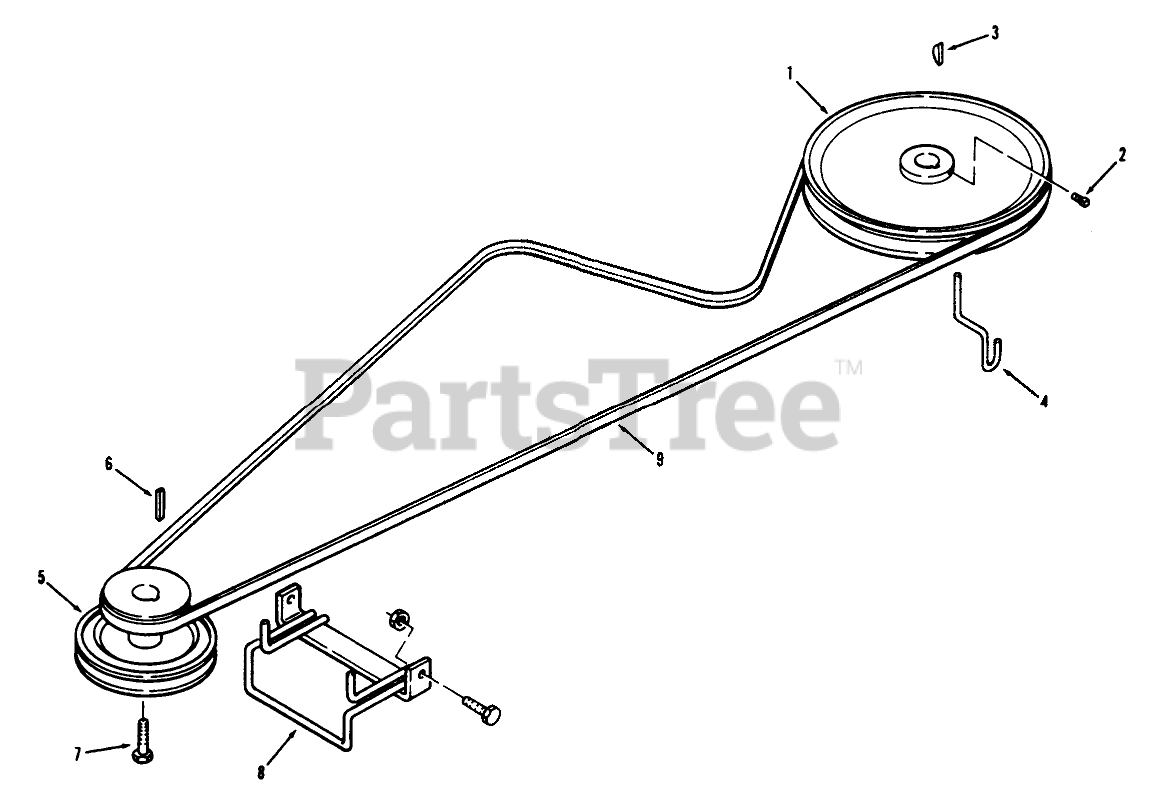

DRIVE BELT AND PULLEYS Parts Diagram

  • Title
1

Toro 103339

Pulley-Transmission

$

$

Not available

2

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

3

Toro 937086

KEY WOODRUFF

$

$

Not available

4

Toro 6441

Belt Retainer

$

$

Not available

5

Toro 105070

PULLEY-ENGINE

$

$

Not available

6

Toro 1349

Key

$

$

Not available

7

Toro 908195

HEX HD CAP SCREW

$

$

Not available

8

Toro 105287

Assy-Belt Bracket

$

$

Not available

9

Toro 103522

V-BELT, TRANSMISSION DR.

$56.99

$

In Stock, only 1 left!

0
