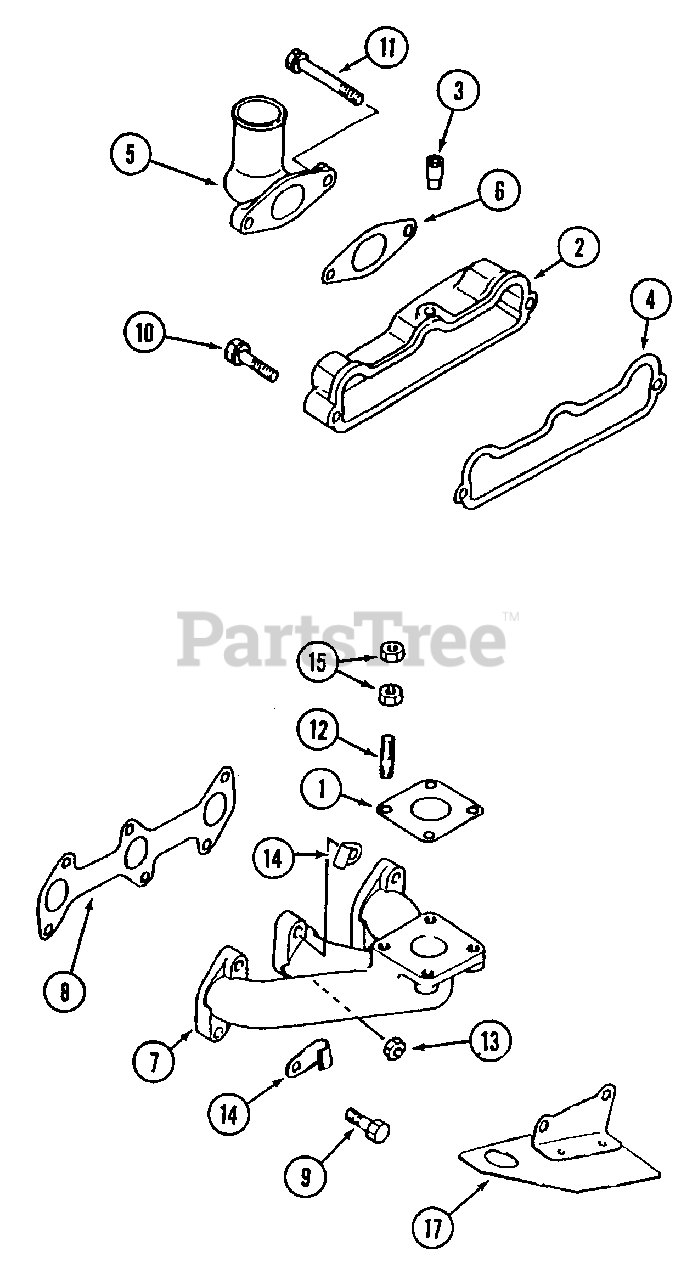

7195 (545-442D100) - Cub Cadet Compact Tractor Intake & Exhaust Parts - 19HP Parts Diagram

Compact Tractor

Intake & Exhaust Parts - 19HP Parts Diagram

  • Title

$

$

Not available

2

Cub Cadet MA-MM408541

Intake Cover Ass'y.

Note: Includes Item No. 3

$

$

Not available

3

Cub Cadet MA-K9644171

Pipe
(Superseded to MA-32A04-09100)

$

$

Not available

4

Cub Cadet MA-MM408551

Gasket, Intake Manifold
(Superseded to MA-30A30-02100)

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-MM408563

Pipe, Inlet

$

$

Not available

6

Cub Cadet MA-MM408566

Gasket, Inlet Pipe

$

$

Not available

7

Cub Cadet MA-MM408557

Manifold, Exhaust

$

$

Not available

8

Cub Cadet MA-30A30-00300

Gasket, Exhaust Manifold

$

$

Not available

$

$

Not available

10

Cub Cadet MA-MF241261

Bolt, w/Washer

$

$

Not available

11

Cub Cadet MA-MF241267

Bolt, w/Washer

$

$

Not available

12

Cub Cadet MA-MF401936

Stud
(Superseded to MA-F1435-08025)

$

$

Not available

$

$

Not available

14

Cub Cadet MA-MM408590

Clamp, Tachometer Cable

$

$

Not available

$

$

Not available

17

Cub Cadet MA-MM409424

Cover, Starter

$

$

Not available
