7193 (546C422-100) - Cub Cadet Compact Tractor Final Drive 2WD (HST) Parts Diagram

Compact Tractor

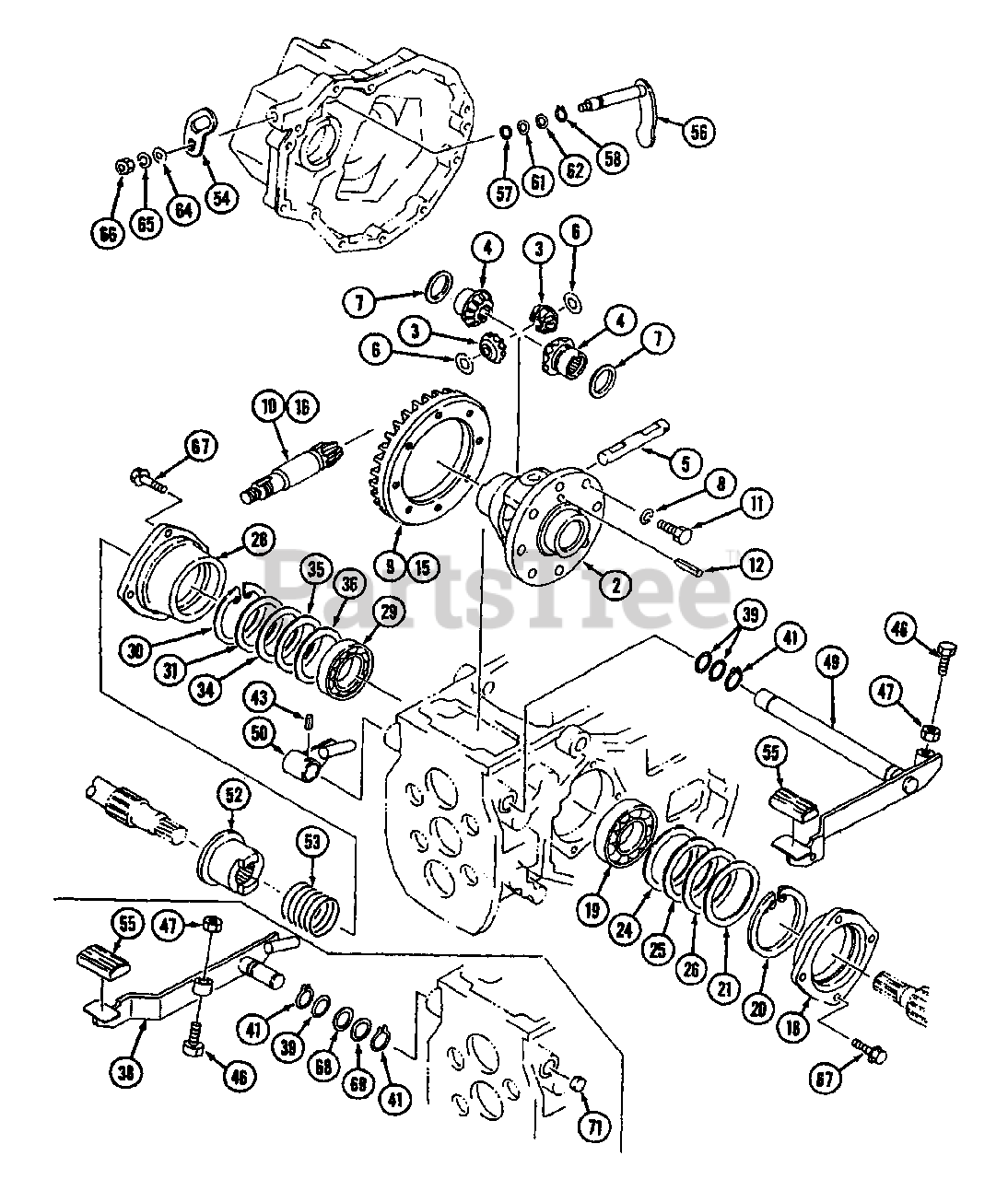

Final Drive 2WD (HST) Parts Diagram

  • Title

Cub Cadet MA-19631421000

Diff. Case Ass'y

Note: Includes items 2-12

$

$

Not available

Cub Cadet MA-19631401000

Diff. Case Ass'y

Note: Includes items 2-8, 11-16

$

$

Not available

2

Cub Cadet MA-10191411000

Case, Differential

$

$

Not available

3

Cub Cadet MA-10191412000

Pinion, Mate

$

$

Not available

4

Cub Cadet MA-10191413000

Gear, Side

$

$

Not available

5

Cub Cadet MA-10191414000

Shaft, Pinion

$115.99

$

Usually ships in 3-6 days

0

6

Cub Cadet MA-10191415000

Washer, Thrust

$

$

Not available

7

Cub Cadet MA-10191416000

Washer, Thrust

$7.49

$

In Stock, only 2 left!

0

8

Cub Cadet MA-A3600100802

Washer

$

$

Not available

9

UNKNOWN

$

$

Not available

10

UNKNOWN

$

$

Not available

Cub Cadet MA-19631423000

Pinion & Ring Gear Set

Note: Includes items 9, 10

$

$

Not available

11

Cub Cadet MA-10302103000

Bolt, M8-1.25

$

$

Not available

12

Cub Cadet MA-05500006040

Pin, Spring

$

$

Not available

Pinion & Ring Gear Set

Note: Includes items 15, 16

$

$

Not available

15

UNKNOWN

$

$

Not available

16

UNKNOWN

$

$

Not available

18

Cub Cadet MA-19631406000

Holder, L.H.

$

$

Not available

19

Cub Cadet MA-07500062100

Bearing

$

$

Not available

20

Cub Cadet MA-07410009001

Ring

$

$

Not available

21

Cub Cadet MA-10251531000

Liner

$

$

Not available

Cub Cadet MA-19631416000

Liner, Set

Note: Includes items 24-26

$

$

Not available

24

Cub Cadet MA-69542-60700

Liner, t=0.07

$

$

Not available

25

Cub Cadet MA-69542-60800

Liner, t=0.2

$

$

Not available

26

Cub Cadet MA-69542-60900

Liner, t=0.4

$

$

Not available

28

Cub Cadet MA-19631407000

Holder, R.H.

$

$

Not available

29

Cub Cadet MA-07500060100

Bearing

$60.99

$

Usually ships in 3-6 days

0

30

Cub Cadet MA-07410008001

Ring

$

$

Not available

31

Cub Cadet MA-10251535000

Liner

$

$

Not available

Cub Cadet MA-10190623000

Shim Set

Note: Includes items 34-36

$

$

Not available

34

Cub Cadet MA-10070618000

Liner t=0.1

$

$

Not available

35

Cub Cadet MA-10070618100

Liner t=0.2

$

$

Not available

36

Cub Cadet MA-10070618200

Liner t=0.4

$

$

Not available

38

Pedal, Diff. Lock

$

$

Not available

39

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

41

Cub Cadet MA-07400002000

Ring

$

$

Not available

43

Cub Cadet MA-05500008040

Pin, Spring

$

$

Not available

46

Cub Cadet MA-A0500110035

Bolt

$

$

Not available

47

Cub Cadet MA-A3010110002

Nut

$

$

Not available

49

Cub Cadet MA-19631412AG0

Pedal, Diff. Lock

$

$

Not available

50

Cub Cadet MA-19631413AG0

Arm, Diff. Lock

$

$

Not available

52

Cub Cadet MA-10261415000

Sleeve

$

$

Not available

53

Cub Cadet MA-11351416000

Spring

$

$

Not available

54

Cub Cadet MA-19631414AG0

Arm

$

$

Not available

55

Cub Cadet MA-10320228000

Cover, Pedal

$

$

Not available

56

Cub Cadet MA-19631415000

Shifter

$

$

Not available

57

Cub Cadet MA-08300100110

O-Ring

$

$

Not available

58

Cub Cadet MA-07420001200

Ring

$

$

Not available

Cub Cadet MA-10191806000

Shim Set

Note: Includes items 61, 62

$

$

Not available

61

Cub Cadet MA-10191806000

Liner t=0.4

$

$

Not available

62

Cub Cadet MA-07310001512

Liner t=0.2

$

$

Not available

64

Cub Cadet MA-03500150822

Washer

$

$

Not available

65

Cub Cadet MA-A3600100802

Washer

$

$

Not available

66

Cub Cadet MA-A3010108002

Nut

$

$

Not available

67

Cub Cadet MA-F1550110025

Bolt

$3.99

$

Usually ships in 3-6 days

0

Liner Set

Note: Includes items 68, 69

$

$

Not available

68

Liner t=0.4

$

$

Not available

69

Liner t=1.0

$

$

Not available

71

Seal, Cap

$

$

Not available
