7192 (546-412D100) - Cub Cadet Compact Tractor Wheel Assemblies Rim & Tire (7192, 7194, 7195 Tractors) Parts Diagram

Compact Tractor

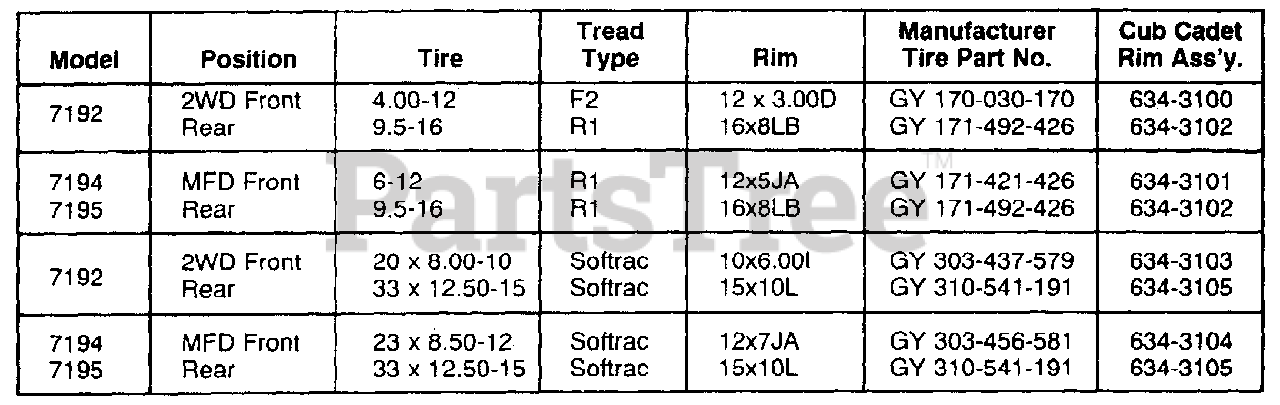

Wheel Assemblies Rim & Tire (7192, 7194, 7195 Tractors) Parts Diagram

  • Title
GY170-030-170

Cub Cadet GY170-030-170

Tire 4.00-12

Note: Model 7192, Position 2WD Front , Tread Type F2

$

$

Currently unavailable

634-3100

Cub Cadet 634-3100

Rim 12 x 3.00D

Note: Model 7192, Position 2WD Front

$

$

Not available

GY171-492-426

Cub Cadet GY171-492-426

Tire 9.5-16

Note: Model 7192, Position Rear, Tread Type R1

$

$

Currently unavailable

634-3102

Cub Cadet 634-3102

Rim 16x8LB

Note: Model 7192, Position Rear

$

$

Not available

GY171-421-426

Cub Cadet GY171-421-426

Tire 6-12

Note: Model 7194, Position MFD Front, Tread Type R1

$

$

Currently unavailable

634-3101

Cub Cadet 634-3101

Rim 12x5JA

Note: Model 7194, Position MFD Front

$

$

Not available

GY171-492-426

Cub Cadet GY171-492-426

Tire 9.5-16

Note: Model 7195, Position Rear, Tread Type R1

$

$

Currently unavailable

634-3102

Cub Cadet 634-3102

Rim 16x8LB

Note: Model 7195, Position Rear

$

$

Not available

GY303-437-579

Cub Cadet GY303-437-579

Tire 20 x 8.00-10

Note: Model 7192, Position 2WD Front, Tread Type Softrac

$

$

Currently unavailable

634-3103

Cub Cadet 634-3103

Rim 10x6.001

Note: Model 7192, Position 2WD Front

$

$

Not available

GY310-541-191

Cub Cadet GY310-541-191

Tire 33 x 12.50-15

Note: Model 7192, Position Rear, Tread Type Softrac

$

$

Currently unavailable

634-3105

Cub Cadet 634-3105

Rim 15x10L

Note: Model 7192, Position Rear

$

$

Not available

GY303-456-581

Cub Cadet GY303-456-581

Tire 23 x 8.50-12

Note: Model 7194, Position MFD Front, Tread Type Softrac

$

$

Currently unavailable

634-3104

Cub Cadet 634-3104

Rim 12x7JA

Note: Model 7194, Position MFD Front

$

$

Not available

GY310-541-191

Cub Cadet GY310-541-191

Tire 33 x 12.50-15

Note: Model 7195, Position Rear, Tread Type Softrac

$

$

Currently unavailable

634-3105

Cub Cadet 634-3105

Rim 15x10L

Note: Model 7195, Position Rear

$

$

Not available

634-3101

Cub Cadet 634-3101

Rim 4.00-12

Note: Position 2 WD Front

$

$

Not available
