7187 A89 - Electrolux/AYP Lawn Tractor (1998) BRIGGS AND STRATTON ENGINE Parts Diagram

Lawn Tractor

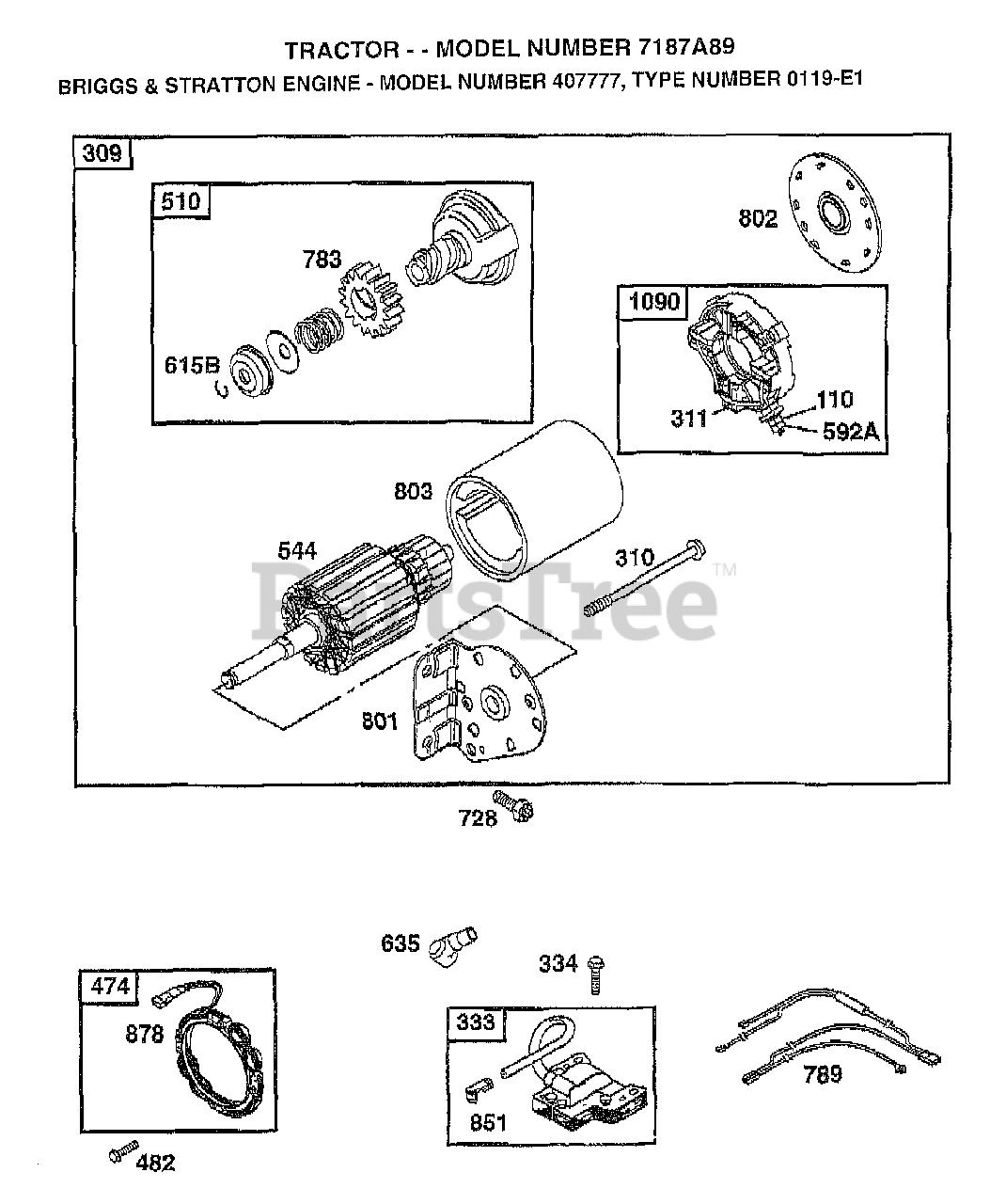

BRIGGS AND STRATTON ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 499584

CYLINDER ASSY

$

$

Not available

2

Electrolux/AYP 499585

BUSHING CYLINDER

$

$

Not available

$

$

Not available

4

Electrolux/AYP 690069

SUMP ENGINE

$

$

Not available

5

Electrolux/AYP 499587

HEAD CYLINDER NO. 1

$

$

Not available

5A

Electrolux/AYP 499595

HEAD CYLINDER NO. 2

$

$

Not available

6

Electrolux/AYP 690097

WASHER FLAT

$

$

Not available

7

Electrolux/AYP 690962

GASKET, CYLINDER HEAD

$

$

Not available

8

Electrolux/AYP 499601

BREATHER ASSY

$

$

Not available

9

Electrolux/AYP 690937

GASKET BREATHER

$

$

Not available

10

$

$

Not available

11

Electrolux/AYP 690942

TUBE, BREATHER

$

$

Not available

12

CHECK WITH SUPPLIER

$

$

Not available

13

Electrolux/AYP 690360

SCREW, CYLINDER HEAD (3-9/16")

$

$

Not available

15

Electrolux/AYP 690946

PLUG, OIL DRAIN

$

$

Not available

16

$

$

Not available

20

$

$

Not available

22

Electrolux/AYP 690308

SCREW, CRANKCASE COVER

$

$

Not available

23

$

$

Not available

24

Electrolux/AYP 690974

KEY, FLYWHEEL

$

$

Not available

25

Electrolux/AYP 499588

PISTON ASSY (STD)

$

$

Not available

25

Electrolux/AYP 499589

PISTON ASSY (.010" O.S.)

$

$

Not available

25

Electrolux/AYP 499590

PISTON ASSY (.020" O.S.)

$

$

Not available

25

Electrolux/AYP 499591

PISTON ASSY (.030" O.S.)

$

$

Not available

26

Electrolux/AYP 499604

RING SET, PISTON (STD.)

$

$

Not available

26

Electrolux/AYP 499605

RING SET, PISTON (.010" O.S.)

$

$

Not available

26

Electrolux/AYP 499606

RING SET, PISTON (.020" O.S.)

$

$

Not available

26

Electrolux/AYP 499607

RING SET, PISTON (.030" O.S.)

$

$

Not available

27

Electrolux/AYP 690975

LOCK, PISTON PIN

$

$

Not available

28

Electrolux/AYP 499582

PIN ASSY, PISTON

$

$

Not available

29

Electrolux/AYP 499583

ROD ASSY, CONNECTING

$

$

Not available

32

Electrolux/AYP 690976

SCREW, CONNECTING ROD

$

$

Not available

33

Electrolux/AYP 499596

VALVE, EXHAUST

$

$

Not available

34

Electrolux/AYP 499597

VALVE, INTAKE

$

$

Not available

35

Electrolux/AYP 690963

SPRING, VALVE

$

$

Not available

40

Electrolux/AYP 690964

RETAINER, VALVE

$

$

Not available

42

Electrolux/AYP 499586

KEEPER VALVE

$

$

Not available

45

Electrolux/AYP 690977

TAPPET, VALVE

$

$

Not available

46

$

$

Not available

50

Electrolux/AYP 690948

MANIFOLD, INTAKE

$

$

Not available

51

Electrolux/AYP 690949

GASKET, CARB. MOUNTING

$3.49

$

In Stock, Qty 20+

0

51A

Electrolux/AYP 690950

GASKET, INTAKE MANIFOLD

$2.99

$

In Stock, Qty 13

0

53

Electrolux/AYP 690951

STUD, CARB. MOUNTING

$

$

Not available

73

Electrolux/AYP 691055

SCREEN, ROTATING

$

$

Not available

75

Electrolux/AYP 691056

WASHER, SPRING

$

$

Not available

78

Electrolux/AYP 691057

SCREW, TORX

$

$

Not available

87

Electrolux/AYP 690657

SEAL, GOVERNOR SHAFT

$

$

Not available

89

$

$

Not available

95

Electrolux/AYP 690718

SCREW, SLOTTED

$

$

Not available

98

Electrolux/AYP 499802

SCREW, IDLE SPEED

$

$

Not available

102

Electrolux/AYP 690234

GASKET, PLATE

$

$

Not available

104

Electrolux/AYP 690984

PIN, FLOAT HINGE

$

$

Not available

105

Electrolux/AYP 690985

VALVE, NEEDLE

$

$

Not available

108

Electrolux/AYP 690986

VALVE, CHOKE

$

$

Not available

$

$

Not available

116

Electrolux/AYP 690987

O-RING, SOLENOID RETAINER

$

$

Not available

116A

Electrolux/AYP 690988

O-RING, FUEL TRANSFER TUBE

$

$

Not available

116B

Electrolux/AYP 690589

SEAL, O-RING (OIL PUMP COVER)

$

$

Not available

116C

Electrolux/AYP 691031

SEAL, O-RING (DIPSTICK)

$

$

Not available

116D

Electrolux/AYP 691032

SEAL, O-RING (OIL FILTER TUBE)

$

$

Not available

117

Electrolux/AYP 690232

JET, MAIN (STANDARD)

$

$

Not available

119

Electrolux/AYP 690990

SCREW, PHILLIPS

$

$

Not available

119A

Electrolux/AYP 690991

SCREW, PHILLIPS

$

$

Not available

119B

Electrolux/AYP 690992

SCREW, PHILLIPS

$

$

Not available

119C

Electrolux/AYP 690720

SCREW, PHILLIPS

$

$

Not available

121

Electrolux/AYP 499811

CARBURETOR OVERHAUL KIT

$

$

Not available

122

Electrolux/AYP 690952

SPACER, CARBURETOR

$

$

Not available

125

$

$

Not available

130

Electrolux/AYP 690993

VALVE, THROTTLE

$

$

Not available

131

Electrolux/AYP 499805

SHAFT, THROTTLE

$

$

Not available

133

Electrolux/AYP 499806

FLOAT, CARBURETOR

$

$

Not available

135

Electrolux/AYP 499803

TUBE, FUEL TRANSFER

$

$

Not available

137

Electrolux/AYP 690994

GASKET, FLOAT BOWL

$6.99

$

In Stock, Qty 20+

0

141

Electrolux/AYP 499807

SHAFT CHOKE

$

$

Not available

142

Electrolux/AYP 499808

NOZZLE, CARBURETOR

$

$

Not available

146

Electrolux/AYP 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, Qty 7

0

150

Electrolux/AYP 281767

GASKET, NOZZLE

$

$

Not available

160

Electrolux/AYP 690996

RETAINER, SOLENOID

$

$

Not available

163

Electrolux/AYP 691001

GASKET, AIR CLEANER

$

$

Not available

176

Electrolux/AYP 691033

SCREW, T-30

$

$

Not available

187

$

$

Not available

187A

$

$

Not available

188

$

$

Not available

190

Electrolux/AYP 690953

SCREW, TORX HEX

$

$

Not available

192

Electrolux/AYP 690083

ADJUSTER, ROCKER ARM

$

$

Not available

$

$

Not available

209

Electrolux/AYP 690018

SPRING, GOVERNOR

$

$

Not available

211

Electrolux/AYP 690019

SPRING, GOVERNED IDLE

$

$

Not available

212

Electrolux/AYP 691020

LINK, THROTTLE

$

$

Not available

213

Electrolux/AYP 691021

BRACKET, CHOKE CONTROL

$

$

Not available

216

Electrolux/AYP 691022

LINK, CHOKE

$

$

Not available

219

Electrolux/AYP 394348

GEAR, GOVERNOR

$

$

Not available

220

Electrolux/AYP 690412

WASHER, THRUST

$

$

Not available

222

Electrolux/AYP 691023

PLATE, GOVERNOR CONTROL

$

$

Not available

227

Electrolux/AYP 691048

LEVER ASSY, GOVERNOR

$

$

Not available

240

Electrolux/AYP 691035

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

252

Electrolux/AYP 690956

ELEMENT, BREATHER

$

$

Not available

256

Electrolux/AYP 690957

RETAINER, ELEMENT

$

$

Not available

258

$

$

Not available

265

Electrolux/AYP 691024

CLAMP, CASING

$

$

Not available

277

$

$

Not available

304

Electrolux/AYP 691004

HOUSING, BLOWER

$

$

Not available

305

$

$

Not available

309

Electrolux/AYP 691262

MOTOR, STARTER

$

$

Not available

310

$

$

Not available

311

$

$

Not available

332

Electrolux/AYP 690059

NUT, FLYWHEEL

$

$

Not available

333

Electrolux/AYP 691060

ARMATURE, MAGNETO

$

$

Not available

334

Electrolux/AYP 691061

SCREW, ARMATURE MOUNTING

$

$

Not available

337

$

$

Not available

351

$

$

Not available

355

Electrolux/AYP 690997

WASHER, SEAL

$

$

Not available

358

$

$

Not available

363

Electrolux/AYP 691062

FLYWHEEL, PULLER

$

$

Not available

383

Electrolux/AYP 390966

WRENCH, SPARK PLUG

$

$

Not available

387

$

$

Not available

445

Electrolux/AYP 691007

CARTRIDGE, AIR CLEANER

$

$

Not available

467

Electrolux/AYP 691008

NUT, AIR CLEANER

$

$

Not available

474

$

$

Not available

482

$

$

Not available

510

Electrolux/AYP 497606

DRIVE, STARTER

$

$

Not available

523

Electrolux/AYP 691036

DIPSTICK, OIL

$

$

Not available

525

Electrolux/AYP 691037

TUBE, OIL FILL

$

$

Not available

552

Electrolux/AYP 690552

BUSHING, GOVERNOR CRANK

$

$

Not available

552A

Electrolux/AYP 690553

BUSHING, GOVERNOR CRANK

$

$

Not available

556

$

$

Not available

562

Electrolux/AYP 690311

BOLT, CARRIAGE

$

$

Not available

573

Electrolux/AYP 691009

PLATE, BLACK

$

$

Not available

592

$

$

Not available

592A

$

$

Not available

601

Electrolux/AYP 691038

CLAMP, FUEL LINE

$

$

Not available

615

Electrolux/AYP 690328

RETAINER, GOVERNOR

$

$

Not available

615A

Electrolux/AYP 690317

RETAINER, GOVERNOR

$

$

Not available

615B

$

$

Not available

616

Electrolux/AYP 691045

CRANK, GOVERNOR

$

$

Not available

633

Electrolux/AYP 690998

SEAL, CHOKE SHAFT

$

$

Not available

634

Electrolux/AYP 690442

WASHER, FLAT

$

$

Not available

635

Electrolux/AYP 691210

BOOT, SPARK PLUG

$

$

Not available

$

$

Not available

703

$

$

Not available

718

Electrolux/AYP 690959

DOWEL, SLEEVE

$

$

Not available

726

$

$

Not available

728

Electrolux/AYP 690372

SCREW, TORX

$

$

Not available

741

Electrolux/AYP 690980

GEAR, TIMING

$

$

Not available

783

Electrolux/AYP 691280

GEAR, STARTER

$

$

Not available

788

Electrolux/AYP 691039

BRACKET, PUMP

$

$

Not available

789

Electrolux/AYP 691220

HARNESS, WIRING

$

$

Not available

801

$

$

Not available

802

$

$

Not available

823

$

$

Not available

847

Electrolux/AYP 499602

DIPSTICK/TUBE ASSY

$

$

Not available

851

Electrolux/AYP 691234

TERMINAL, IGNITION CABLE

$

$

Not available

855

Electrolux/AYP 691011

ADAPTER, AIR

$

$

Not available

865

Electrolux/AYP 691012

COVER, AIR GUIDE

$

$

Not available

865A

Electrolux/AYP 691013

COVER, AIR GUIDE

$

$

Not available

865B

Electrolux/AYP 691015

COVER, AIR GUIDE

$

$

Not available

868

Electrolux/AYP 690968

SEAL, VALVE

$

$

Not available

871

Electrolux/AYP 690969

BUSHING, GUIDE

$

$

Not available

878

Electrolux/AYP 691237

WIRE, ALTERNATOR

$

$

Not available

881

Electrolux/AYP 690999

PLATE, COVER

$

$

Not available

883

Electrolux/AYP 690970

GASKET, EXHAUST

$

$

Not available

918

Electrolux/AYP 691040

HOSE, VACUUM

$

$

Not available

947

Electrolux/AYP 499809

SOLENOID, FUEL

$

$

Not available

965

Electrolux/AYP 499613

COVER, OIL PUMP

$

$

Not available

967

Electrolux/AYP 691016

FILTER, PRE-CLEANER

$

$

Not available

968

Electrolux/AYP 499788

COVER, AIR CLEANER

$

$

Not available

975

Electrolux/AYP 499810

BOWL, FLOAT

$

$

Not available

977

Electrolux/AYP 499812

GASKET SET, CARBURETOR

$

$

Not available

987

Electrolux/AYP 691000

SEAL, THROTTLE SHAFT

$

$

Not available

1005

Electrolux/AYP 691243

FAN, FLYWHEEL

$

$

Not available

1006

Electrolux/AYP 691247

RETAINER, FAN

$

$

Not available

1017

Electrolux/AYP 690770

SCREEN, OIL PUMP

$

$

Not available

1019

$

$

Not available

1022

Electrolux/AYP 690971

GASKET, ROCKER COVER

$

$

Not available

1023

Electrolux/AYP 499599

COVER, ROCKER (CYL. NO.1)

$

$

Not available

1023A

Electrolux/AYP 499600

COVER, ROCKER (CYL. NO.2)

$

$

Not available

1024

$

$

Not available

1026

Electrolux/AYP 690981

ROD, PUSH (STEEL)
(Superseded to 597785)

$7.99

$

In Stock, Qty 20+

0

1026A

Electrolux/AYP 690982

ROD, PUSH (ALUMINUM)

$

$

Not available

1027

Electrolux/AYP 690041

FILTER, OIL

$

$

Not available

1029

Electrolux/AYP 690972

ARM, ROCKER

$

$

Not available

1033

Electrolux/AYP 499890

VALVE OVERHAUL KIT

$

$

Not available

1035

Electrolux/AYP 691042

SHAFT, OIL PUMP

$

$

Not available

1036

Electrolux/AYP 499783

LABEL KIT, EMISSION

$

$

Not available

1058

Electrolux/AYP 273694

OWNER'S MANUAL

$

$

Not available

1090

Electrolux/AYP 691293

RETAINER, BRUSH

$

$

Not available

1100

Electrolux/AYP 690973

PIVOT, ROCKER ARM

$

$

Not available

$

$

Not available
