718 - BCS America Two-Wheeled Tractor Handlebar RH Controls (SN: 860517 & Above) Parts Diagram

Two-Wheeled Tractor

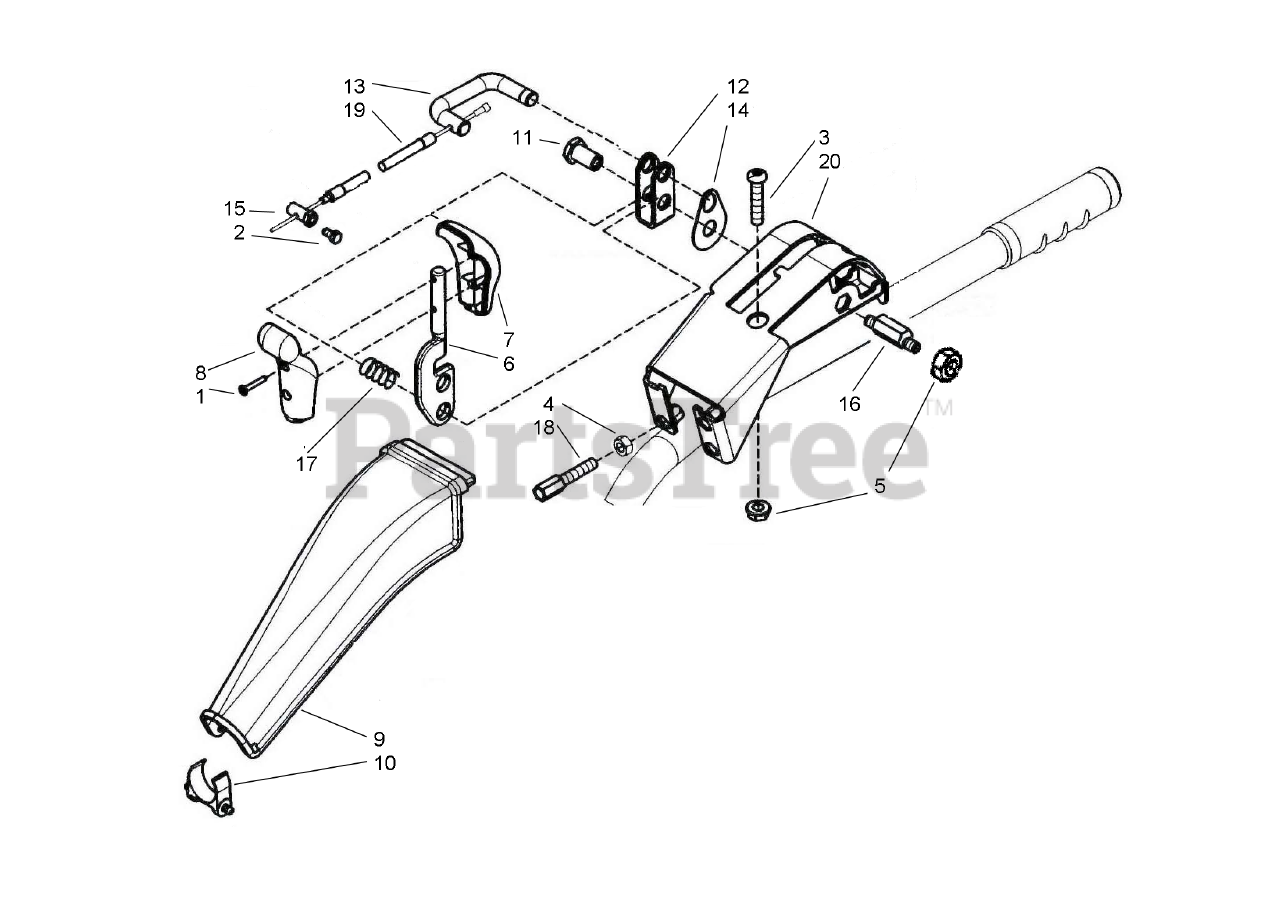

Handlebar RH Controls (SN: 860517 & Above) Parts Diagram

  • Title

1

BCS America 311.00451

SCREW 5X26

Note:

$0.99

$

In Stock, Qty 8

0

2

BCS America 311.12090

CAP SCREW, M6X16

Note:

$0.99

$

In Stock, only 4 left!

0

3

BCS America 311.21020

SCREW

Note:

$1.99

$

In Stock, only 4 left!

0

4

BCS America 312.11080

NUT

Note:

$0.99

$

In Stock, only 3 left!

0

5

BCS America 312.41084

NUT

Note:

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 521.56810Z

LEVER

Note:

$

$

Currently unavailable

7

BCS America 551.57214

UPPER HANDLE HALF, RED

Note:

$6.49

$

Usually ships in 5-8 days

0

8

BCS America 551.57215

LOWER HANDLE HALF, RED

Note:

$6.49

$

In Stock, only 1 left!

0

9

BCS America 552.56835

COVER

Note:

$32.99

$

In Stock, only 1 left!

0

10

BCS America 552.56836

CROSS PIECE

Note:

$10.99

$

Usually ships in 5-8 days

0

11

BCS America 561.48287

BUSHING, REVERSE LEVER

Note:

$9.99

$

In Stock, only 2 left!

0

12

BCS America 561.56859Z

FORK

Note:

$

$

Currently unavailable

13

BCS America 561.58832Z

ANCHOR

Note:

$

$

Currently unavailable

14

BCS America 563.56833Z

PLATE, SMALL

Note:

$

$

Currently unavailable

15

BCS America 563.56840Z

SCREW, CLAMPING

Note:

$

$

Currently unavailable

16

BCS America 563.56858Z

PIN

Note:

$

$

Currently unavailable

17

BCS America 580.49830

SPRING

Note:

$4.99

$

In Stock, only 1 left!

0

18

BCS America 580.56595

ADJUSTER

Note:

$9.49

$

In Stock, only 2 left!

0

19

BCS America 580.56848

CABLE & SHEATH

Note:

$28.99

$

Usually ships in 5-8 days

0

20

BCS America 592.56850

SUPPORT

Note:

$139.99

$

Usually ships in 5-8 days

0
