7169 B99 - Electrolux/AYP Lawn Tractor (1999) ENGINE Parts Diagram

Lawn Tractor

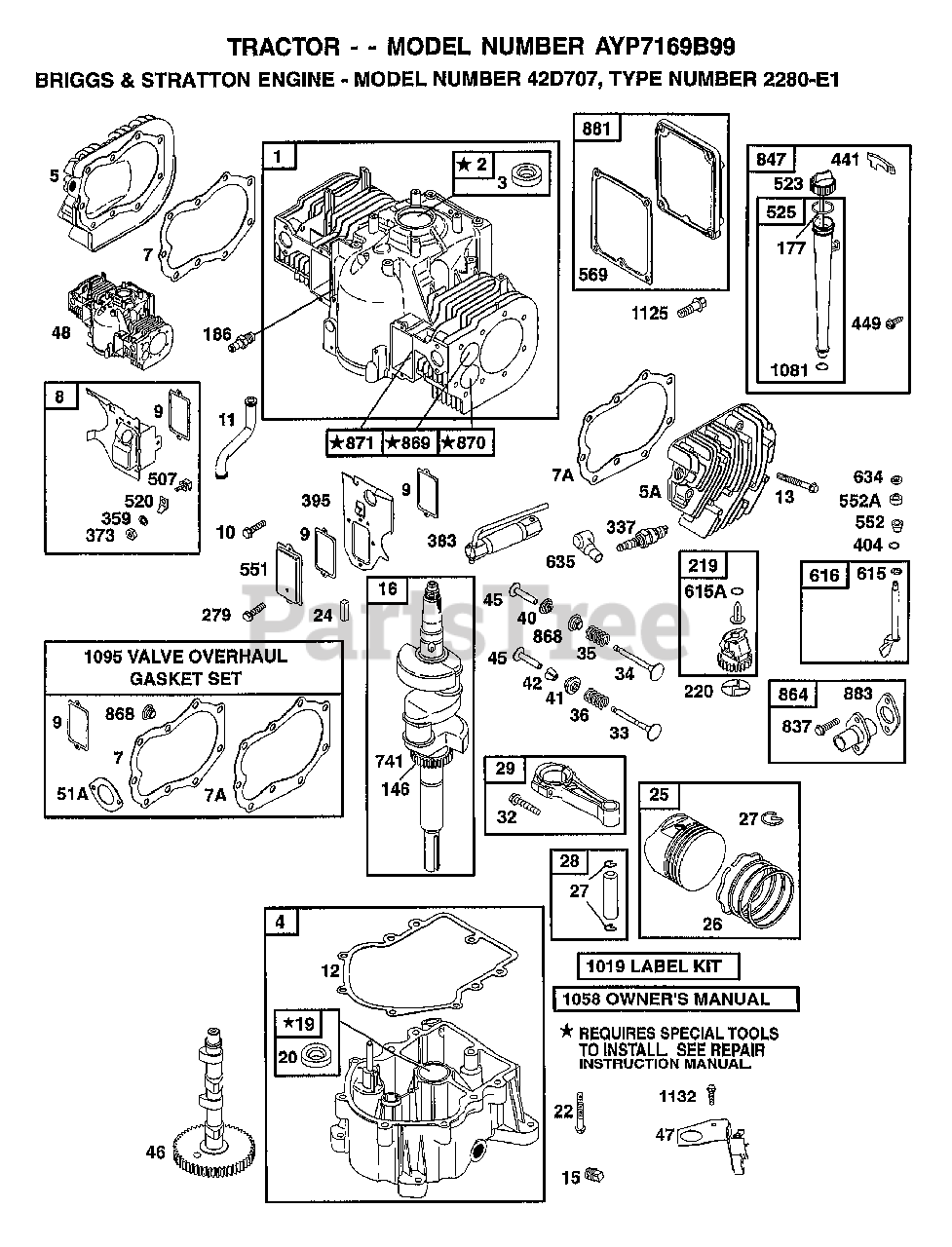

ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 498583

CYLINDER ASSY

$371.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 493304

BASE ASSEMBLY, CRANKCASE

$157.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 493457

HEAD, CYLINDER #1

$

$

Not available

5A

Briggs & Stratton 493458

HEAD CYLINDER #2

$

$

Not available

7

Briggs & Stratton 271867

GASKET, CYLINDER HEAD #1
(Superseded to 271867S)

$10.99

$

In Stock, Qty 14

0

7A

Briggs & Stratton 271868

GASKET, CYLINDER HEAD #2
(Superseded to 271868S)

$10.99

$

In Stock, Qty 12

0

8

Briggs & Stratton 495754

BREATHER ASSEMBLY #1

$

$

Not available

9

Briggs & Stratton 27803

GASKET, VALVE COVER
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94830

SCREW, SEMS
(Superseded to 690366)

$1.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 280225

TUBE, BREATHER
(Superseded to 691899)

$13.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 273390

GASKET
(Superseded to 692292)

$11.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 271188

GASKET, CRANKCASE COVER,.005"

$11.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 271189

GASKET, CRANKCASE COVER,.009"

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94565

SCREW, CYLINDER HEAD
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94239

PLUG, OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 394028

CRANKSHAFT
(Superseded to 690636)

$620.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 399264

BUSHING

$

$

Not available

20

Briggs & Stratton 291675

SEAL, OIL
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 693973

SCREW

$

$

Not available

23

Briggs & Stratton 491180

FLYWHEEL & RING GEAR ASSY, MAGNETO
(Superseded to 691976)

$471.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 498584

PISTON ASSEMBLY STANDARD SIZE

$102.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498585

PISTON ASSEMBLY .010" OVERSIZE

$65.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498586

PISTON ASSEMBLY .020" OVERSIZE

$113.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498587

PISTON ASSEMBLY .030" OVERSIZE

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 394959

RING SET, PISTON, STANDARD SIZE

$59.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 394960

RING SET, PISTON,.010" OVERSIZE

$

$

Not available

26

Briggs & Stratton 394961

RING SET, PISTON,.020" OVERSIZE

$83.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 394962

RING SET, PISTON,.030" OVERSIZE

$34.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263129

LOCK, PISTON PIN
(Superseded to 691299)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

PIN, PISTON, STD SIZE

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498320

PIN ASSY., PISTON, .005" OVERSIZE

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 394306

ROD ASSEMBLY, CONNECTING

$94.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 397158

ROD ASSEMBLY, CONNECTING

$45.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 95017

SCREW
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 390420

VALVE, EXHAUST
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261528

VALVE, INTAKE
(Superseded to 691804)

$

$

Not available

35

Briggs & Stratton 65906

SPRING, INTAKE VALVE
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

SPRING, EXHAUST VALVE
(Superseded to 691597)

$10.99

$

In Stock, Qty 5

0

40

Briggs & Stratton 221596

RETAINER, INTAKE VALVE
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

RETAINER, EXHAUST VALVE
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

KEEPER VALVE

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 261368

TAPPET, VALVE
(Superseded to 691800)

$13.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 214484

GEAR, CAM

$

$

Not available

47

Briggs & Stratton 393415

OIL SLINGER ASSEMBLY
(Superseded to 691964)

$

$

Not available

48

Electrolux/AYP 499945

SHORT BLOCK

$

$

Not available

50

Briggs & Stratton 213290

MANIFOLD, INTAKE
(Superseded to 691709)

$

$

Not available

51

Briggs & Stratton 271412

GASKET, CARBURETOR & INTAKE ELBOE
(Superseded to 692278)

$5.49

$

In Stock, Qty 9

0

51A

Briggs & Stratton 270884

GASKET, INTAKE MANIFOLD MOUNTING
(Superseded to 692219)

$5.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 93208

SCREW, SEMS INTAKE MANIFOLDING MOUNTING

$8.49

$

In Stock, only 1 left!

0

73

Briggs & Stratton 224781

SCREEN
(Superseded to 692527)

$15.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 222511

WASHER SPRING
(Superseded to 691056)

$9.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 94834

SCREW, SEMS
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

91

Briggs & Stratton 693483

BODY ASSY

$

$

Not available

94

Briggs & Stratton 491538

VALVE ASSEMBLY, CARBURETOR IDLE

$14.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW, SLOTTED

$5.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 693485

SHAFT

$38.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 807923

KIT

$10.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 693509

GASKET

$9.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 693506

PIN

$5.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 692078

VALUE
(Superseded to 808798)

$

$

Not available

107

Briggs & Stratton 693482

BODY

$

$

Not available

108

Briggs & Stratton 693505

VALVE

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 693498

SHAFT

$25.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 693507

JET

$20.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 693499

JET

$22.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 491539

CARBURETOR OVERHAUL KIT
(Superseded to 694056)

$31.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 280319

SPACER, CARBURETOR
(Superseded to 691928)

$

$

Not available

125

Briggs & Stratton 693480

CARBURETOR

$289.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 693504

VALVE

$5.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 693512

FLOAT

$20.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94196

KEY, TIMING GEAR
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

147

Briggs & Stratton 693508

JET

$

$

Not available

161

Briggs & Stratton 496599

BODY, AIR CLEANER
(Superseded to 691401)

$64.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271411

GASKET AIR CLEANER
(Superseded to 690273)

$5.49

$

In Stock, Qty 9

0

177

Briggs & Stratton 271170

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 230318

CONNECTOR, IMPULSE PUMP
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 499167

LINE
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94930

SCREW
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

202

Briggs & Stratton 262683

LINK, GOVENOR
(Superseded to 690570)

$17.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 262352

SPRING, GOVERNOR
(Superseded to 691273)

$10.99

$

In Stock, only 2 left!

0

209A

Briggs & Stratton 261563

SPRING, GOVERNOR IDLE
(Superseded to 691807)

$10.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 394348

GEAR, GOVERNOR
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 222773

WASHER, THRUST
(Superseded to 690412)

$

$

Not available

222

Briggs & Stratton 491282

PLATE ASSEMBLY, GOVERNOR CONTROL

$

$

Not available

227

Briggs & Stratton 491297

LEVER ASSEMBLY, GOVERNOR
(Superseded to 690762)

$8.49

$

Usually ships in 2-12 days

0

235

Briggs & Stratton 224995

SHIELD, SPITBACK
(Superseded to 691206)

$9.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 394358

FILTER, FUEL
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

267

Briggs & Stratton 93897

SCREW, SEMS
(Superseded to 690316)

$3.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 94942

WASHER
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

279

Briggs & Stratton 94830

SCREW, SEMS
(Superseded to 690366)

$1.99

$

Usually ships in 2-12 days

0

297

Briggs & Stratton 94289

NUT, WING
(Superseded to 691331)

$5.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 495588

HOUSING, BLOWER
(Superseded to 691391)

$65.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 690960

SCREW, HEX
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

306

Briggs & Stratton 222846

SHIELD, CYLINDER
(Superseded to 690414)

$23.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 223734

SHIELD, CYLINDER
(Superseded to 690435)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

SCREW
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

Electrolux/AYP 42A707-1707-E1

REPLACEMENT ENGINE

$

$

Not available

309

Briggs & Stratton 497596

MOTOR, STARTER

$122.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 94003

BOLT
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

BRUSH SET

$27.99

$

In Stock, only 3 left!

0

332

Briggs & Stratton 230674

NUT, HEX
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 394891

ARMATURE GROUP MAGNETRON IGNITION
(Superseded to 590781)

$75.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 691061

SCREW, ARMATURE MOUNTING

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 494705

WIRE, STOP
(Superseded to 690807)

$

$

Not available

358

Briggs & Stratton 495868

IN GASKET SET

$75.99

$

In Stock, only 1 left!

0

359

Briggs & Stratton 92791

WASHERLOCK
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

365

Briggs & Stratton 93970

SCREW, SEMS, CARBURETOR MOUNTING
(Superseded to 690321)

$6.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 90576

NUT, HEX
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

386

Briggs & Stratton 693490

GASKET

$9.49

$

Usually ships in 2-12 days

0

391

Briggs & Stratton 693487

BODY

$40.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 693491

SPRING

$5.49

$

Usually ships in 2-12 days

0

395

Briggs & Stratton 224816

BAFFLE, AIR, CYLINDER #2
(Superseded to 690481)

$9.49

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 223882

WASHER, GOVERNOR CRANK, INSIDE
(Superseded to 690442)

$3.49

$

In Stock, Qty 5

0

423

Briggs & Stratton 691100

SCREW

$3.99

$

Usually ships in 2-12 days

0

425

Briggs & Stratton 94823

SCREW ROUND HEAD
(Superseded to 691675)

$13.99

$

In Stock, only 2 left!

0

432

Briggs & Stratton 693492

CAP

$

$

Not available

434

Briggs & Stratton 693493

COVER

$11.99

$

Usually ships in 2-12 days

0

435

Briggs & Stratton 693494

SCREW

$5.99

$

Usually ships in 2-12 days

0

441

Briggs & Stratton 222875

CLAMP, OIL FILLER
(Superseded to 691176)

$

$

Not available

445

Briggs & Stratton 394019

CARTRIDGE AIR CLEANER
(Superseded to 394019S)

$21.99

$

In Stock, Qty 7

0

447

Briggs & Stratton 93343

SCREW, SEMS
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

449

Briggs & Stratton 94694

SCREW, HEX HEAD
(Superseded to 691044)

$3.99

$

In Stock, Qty 6

0

474

Briggs & Stratton 393474

STATOR, ALTERNATOR, DUAL CIRCUIT
(Superseded to 592831)

$101.99

$

In Stock, Qty 9

0

482

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 92278

NUT, HEX
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 398525

INSULATOR ASSEMBLY
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

510

Briggs & Stratton 497606

DRIVE, STARTER
(Superseded to 696541)

$90.99

$

In Stock, Qty 10

0

513

Briggs & Stratton 398003

CLUTCH ASSEMBLY
(Superseded to 692024)

$21.99

$

In Stock, only 3 left!

0

520

Briggs & Stratton 93722

TERMINAL, SPADE
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 494947

CAP AND DIPSTICK
(Superseded to 691385)

$31.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 495348

TUBE, OIL FILLER
(Superseded to 690823)

$28.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 497603

ARMATURE, STARTER
(Superseded to 692034)

$82.99

$

Usually ships in 2-12 days

0

551

Briggs & Stratton 222892

COVER, BREATHER CYLINDER #2
(Superseded to 690415)

$10.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 262332

LOWER BUSHING, GOVERNOR
(Superseded to 690553)

$7.49

$

In Stock, Qty 9

0

552A

Briggs & Stratton 262331

UPPER BUSHING GOVERNOR
(Superseded to 690552)

$8.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 93853

BOLT, GOVERNOR LEVER
(Superseded to 690311)

$4.49

$

Usually ships in 2-12 days

0

567

Briggs & Stratton 94811

SCREW, HEX HEAD
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

569

Briggs & Stratton 272645

GASKET, CRANKCASE
(Superseded to 692287)

$10.99

$

In Stock, Qty 6

0

573

Briggs & Stratton 491304

BACK PLATE ASSEMBLY
(Superseded to 696040)

$51.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

615

Briggs & Stratton 94296

RETAINER, E-RING
(Superseded to 690328)

$4.49

$

In Stock, Qty 6

0

615A

Briggs & Stratton 93898

RETAINER-GOVERNOR SHAFT
(Superseded to 698290)

$4.49

$

In Stock, Qty 9

0

616

Briggs & Stratton 491530

CRANK, GOVERNOR

$

$

Not available

634

Briggs & Stratton 491287

SEAL, GOVERNOR SHAFT
(Superseded to 790574)

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

637

Briggs & Stratton 693510

WASHER

$6.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 496700

CARTRIDGE PLATES AIR CLEANER

$

$

Not available

689

Briggs & Stratton 262337

SPRING, COMPRESSION

$

$

Not available

697

Briggs & Stratton 94773

SCREW, SEMS
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

726

Briggs & Stratton 391362

GEAR, RING

$

$

Not available

741

Briggs & Stratton 262989

GEAR, TIMING
(Superseded to 691285)

$

$

Not available

783

Briggs & Stratton 693059

GEAR, PINION
(Superseded to 695708)

$6.99

$

In Stock, Qty 5

0

797

Briggs & Stratton 94010

LOCKNUT, AIR CLEANER MOUNTING
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

797A

Briggs & Stratton 693167

NUT (BRUSH RETAINER)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 394860

CAP, DRIVE
(Superseded to 691967)

$74.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497607

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691286)

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 497604

HOUSING, STARTER
(Superseded to 693757)

$25.99

$

Usually ships in 2-12 days

0

807

Briggs & Stratton 693511

SPACER

$7.99

$

Usually ships in 2-12 days

0

822

Briggs & Stratton 693497

WASHER

$7.99

$

Usually ships in 2-12 days

0

837

Briggs & Stratton 93415

SCREW, SEMS
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

847

Briggs & Stratton 495715

DIPSTICK & TUBE ASSY

$34.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

858

Briggs & Stratton 693489

FUEL PUMP

$10.99

$

Usually ships in 2-12 days

0

859

Briggs & Stratton 693488

CARBURETOR

$27.99

$

Usually ships in 2-12 days

0

861

Briggs & Stratton 393397

PUMP REPAIR KIT

$

$

Not available

864

Briggs & Stratton 398349

ADAPTER
(Superseded to 691970)

$

$

Not available

865

Briggs & Stratton 224774

COVER, AIR GUIDE
(Superseded to 691196)

$166.99

$

Usually ships in 2-12 days

0

865A

Briggs & Stratton 224775

COVER, AIR GUIDE
(Superseded to 691197)

$75.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 497212

SEAL, VALVE
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 261463

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 262924

SEAT, EXHAUST VALVE, STANDARD
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

GUIDE, EXHAUST VALVE

$14.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

GUIDE, INTAKE VALVE

$14.99

$

In Stock, Qty 7

0

877

Briggs & Stratton 393456

DIODE & CONNECTOR ASSY

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 393362

HARNESS, ALTERNATOR
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

881

Briggs & Stratton 495901

COVER PLATE

$359.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272250

GASKET MUFFLER
(Superseded to 692282)

$6.99

$

In Stock, Qty 12

0

918

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 94627

SCREW, SEMS 3/4"
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

947

Briggs & Stratton 693495

FUEL

$185.99

$

In Stock, only 1 left!

0

955

Briggs & Stratton 693513

PLUG

$

$

Not available

967

Briggs & Stratton 272490

ELEMENT, FILTER
(Superseded to 272490S)

$5.49

$

In Stock, Qty 19

0

968

Briggs & Stratton 225008

COVER, AIR CLEANER
(Superseded to 691207)

$78.99

$

In Stock, only 3 left!

0

971

Briggs & Stratton 805540

SCREW
(Superseded to 690720)

$3.49

$

In Stock, only 2 left!

0

1005

Briggs & Stratton 498157

FAN

$81.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224901

RETAINER, FAN
(Superseded to 790692)

$

$

Not available

1019

Briggs & Stratton 496726

LABEL KIT

$6.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499380

LABEL

$3.49

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 263080

RETAINER
(Superseded to 691265)

$5.49

$

In Stock, Qty 7

0

1058

Electrolux/AYP 273688

OWNER'S MANUAL

$

$

Not available

1081

Briggs & Stratton 280860

SEAL, FILLER TUBE
(Superseded to 692532)

$5.99

$

In Stock, only 2 left!

0

1090

Briggs & Stratton 497605

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691293)

$29.99

$

In Stock, Qty 6

0

1095

Briggs & Stratton 498047

GASKET

$

$

Not available

1125

Briggs & Stratton 94724

SCREW
(Superseded to 691104)

$4.49

$

In Stock, only 2 left!

0

1132

Briggs & Stratton 94675

SCREW, HEX HEAD
(Superseded to 690353)

$23.99

$

Usually ships in 2-12 days

0

1136

Briggs & Stratton 94297

SCREW, PAN HEAD
(Superseded to 690329)

$3.99

$

Usually ships in 2-12 days

0

1137

Briggs & Stratton 220680

WASHER
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

1138

Briggs & Stratton 94298

NUT, SQUARE
(Superseded to 690330)

$3.49

$

In Stock, only 2 left!

0

Electrolux/AYP 42A707-1707-E1

REPLACEMENT ENGINE

$

$

Not available
