716 H (1690420) - AGCO 48" Garden Tractor, 16hp (SN: 1001 - 2200) 48" Housing & Arbor Group Parts Diagram

48" Garden Tractor, 16hp (SN: 1001 - 2200)

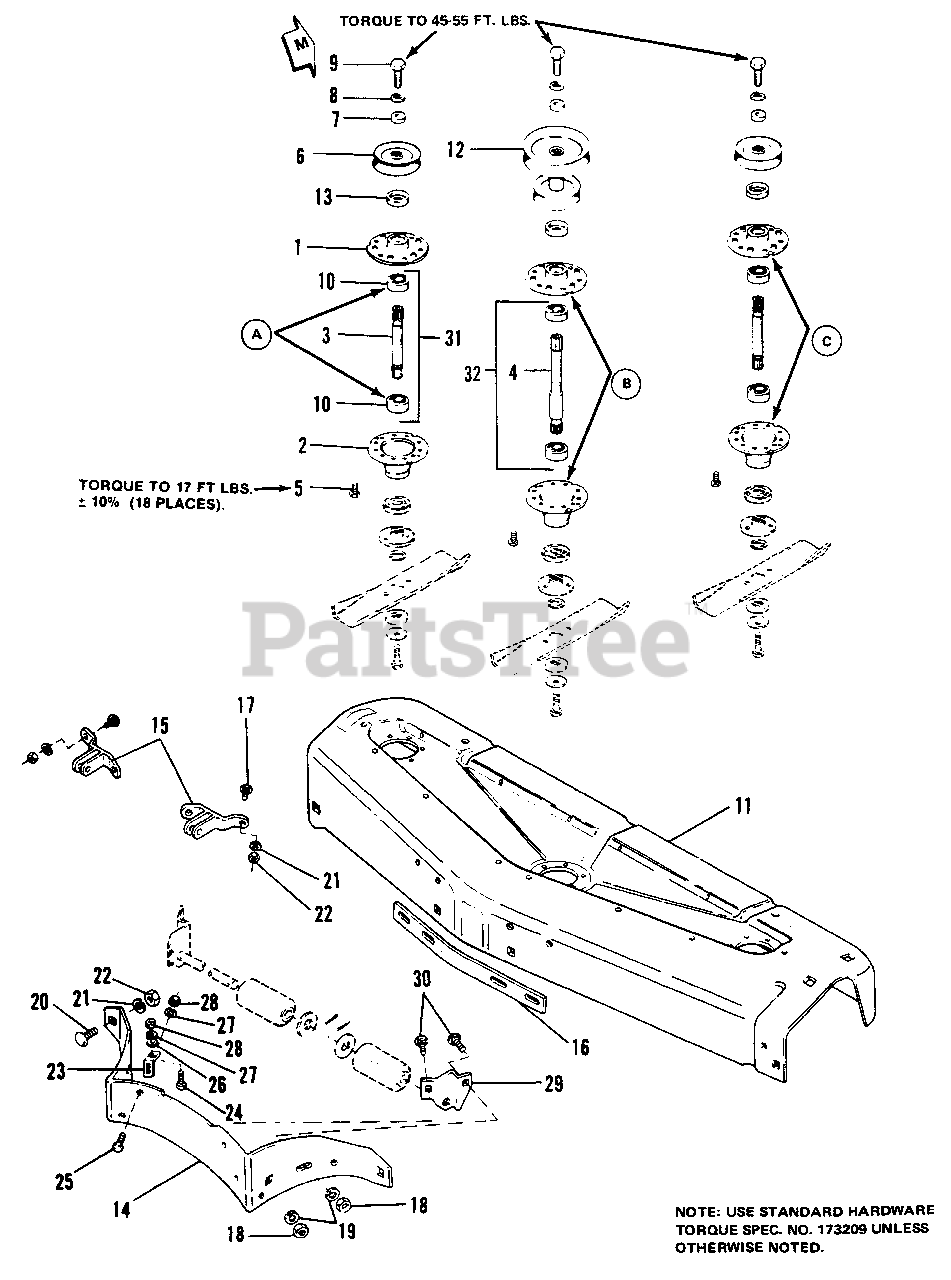

48" Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 1655729ASM

HOUSING, Top

$14.99

$

Usually ships in 2-12 days

0

2

Simplicity 1655728A

HOUSING, Bottom

$

$

Not available

3

Simplicity 1685245SM

SHAFT, Arbor

$74.99

$

In Stock, Qty 7

0

4

Simplicity 1685246SM

SHAFT, Arbor, Center

$

$

Not available

5

Simplicity 1664847SM

SCREW, Hex Wshr. Hd., 5/16 x 5/8
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1655867ASM

PULLEY ASSY, Deck Drive

$79.99

$

In Stock, only 1 left!

0

7

Simplicity 1933263SM

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

9

Simplicity 2820677

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4

$

$

Not available

10

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

11

Simplicity 1685282SM

HOUSING, 48"

$1025.99

$

Usually ships in 2-12 days

0

12

Simplicity 1656928SM

PULLEY ASSY
(Superseded to 1656928ASM)

$

$

Not available

13

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

14

Simplicity 2108453

BAFFLE

$

$

Not available

15

Simplicity 2108219SM

BRACKET ASSY, Front
(Superseded to 2108219ASM)

$62.99

$

Usually ships in 2-12 days

0

16

Simplicity 2108366SM

BAR, Reinforcement
(Superseded to 2108366ASM)

$25.99

$

Usually ships in 2-12 days

0

17

Simplicity 2823232

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

18

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

21

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

22

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

23

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

24

Simplicity 2822125

SCREW, Thd. Forming, 1/4-20 x 7/8

$

$

Not available

25

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

26

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

27

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

28

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 2108224ASM

BRACKET, Roller, L.H.

$59.99

$

In Stock, only 2 left!

0

30

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

31

Simplicity 1685251SM

SHAFT & BEARING ASSY

$99.99

$

In Stock, Qty 13

0

32

Simplicity 1685252SM

SHAFT & BEARING ASSY, Center

$103.99

$

In Stock, only 1 left!

0
