716 H (1690211) - AGCO Garden Tractor, 16hp (SN: 4301 - 5997) Dash Group (7016) Parts Diagram

Garden Tractor, 16hp (SN: 4301 - 5997)

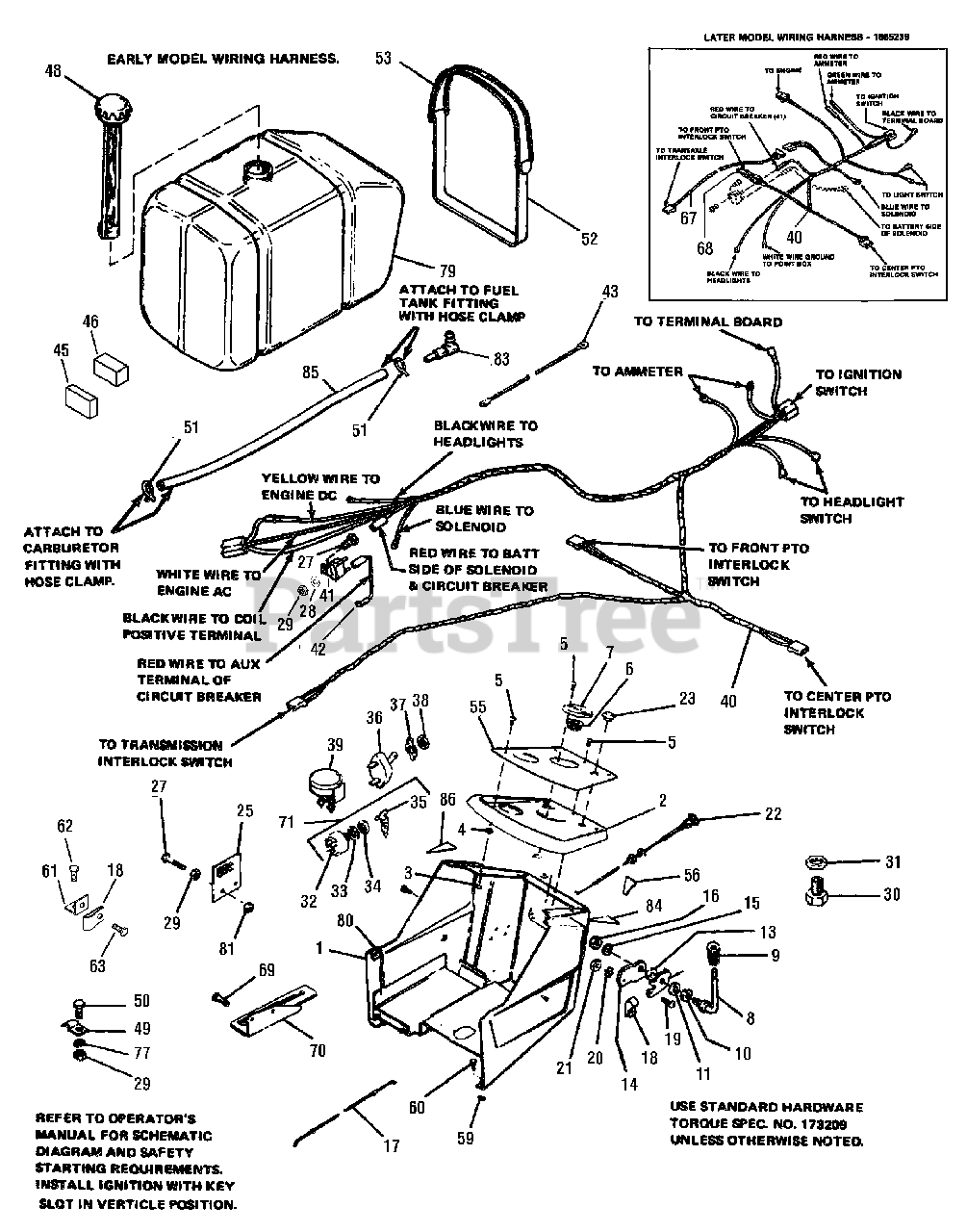

Dash Group (7016) Parts Diagram

  • Title

1

Simplicity 1685408SM

DASH ASSEMBLY

$

$

Not available

2

Simplicity 1651000SM

PANEL, Instrument

$

$

Not available

3

Simplicity 2817867

NUT, Retainer, Tinn.

$

$

Not available

4

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

5

Simplicity 2826025

SCREW, Mach. Rd. Hd., 1/4-20 x 1/2

$

$

Not available

6

Simplicity 2157077SM

BUSHING

$140.99

$

Usually ships in 2-12 days

0

7

Simplicity 2172008SM

PLATE STEERING, Adj.
(Superseded to 2172008ASM)

$38.99

$

Usually ships in 2-12 days

0

8

Simplicity 1686629SM

HANDLE, Clutch Control

$31.99

$

Usually ships in 2-12 days

0

9

Simplicity 2172038SM

KNOB, Tapered
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

10

Simplicity 2101025SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 2156116

WASHER

$

$

Not available

12

Simplicity 2103280SM

STOP, Throttle Kit (inc. ref. 10, 11)

$

$

Not available

13

Simplicity 2159107SM

WASHER

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 2158424

ARM, Throttle

$

$

Not available

15

Simplicity 2830665

LOCKWASHER, Dished Shakeproof, 3/8

$

$

Not available

16

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Simplicity 2171355SM

CONTROL, Throttle

$42.99

$

Usually ships in 2-12 days

0

18

Simplicity 2158475SM

CLIP, Bowden Wire

$5.49

$

In Stock, only 4 left!

0

19

Simplicity 2830531

SCREW, Rd. Hd., No. 10-32 x 1/2

$

$

Not available

20

Simplicity 2822711

LOCKWASHER, External, No. 10

$

$

Not available

21

Simplicity 2817415

NUT, Mach. Hex, No. 10-32

$

$

Not available

22

Simplicity 1650997SM

CONTROL, Choke

$103.99

$

Usually ships in 2-12 days

0

23

Simplicity 2177447

PLUG, Button

$

$

Not available

25

Simplicity 1665230SM

BOARD, Terminal

$

$

Not available

27

Simplicity 2821959

CAPSCREW. Hex Hd, 1/4-20 x 5/8

$

$

Not available

29

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 2177522SM

SWITCH-INTERLOCK Ball Check .656 Lg Thread

$49.99

$

In Stock, Qty 9

0

31

Simplicity 2831648

SCREW, Special

$

$

Not available

32

Simplicity 2178280SM

SWITCH, Ignition
(Superseded to 421064MA)

$32.99

$

In Stock, Qty 9

0

33

Simplicity 2818906

LOCKWASHER, Internal, 5/8

$

$

Not available

34

Simplicity 2122234SM

NUT, Hex Special
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

35

Simplicity 1717163SM

KEY & RING ASSEMBLY

$8.99

$

In Stock, Qty 20+

0

36

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

37

PLATE

$

$

Not available

38

NUT

$

$

Not available

39

Simplicity 1603189SM

AMMETER

$

$

Not available

40

Simplicity 1663253

HARNESS ASSEMBLY (1690342 Only)

$

$

Not available

8

Simplicity 1663253

HARNESS ASSEMBLY (1690427 Only)

$

$

Not available

8

Simplicity 1665239

HARNESS ASSEMBLY (1690427 Only)

$

$

Not available

8

Simplicity 1663253

HARNESS ASSEMBLY (1690429 Only)

$

$

Not available

8

Simplicity 1665239

HARNESS ASSEMBLY (1690429 Only)

$

$

Not available

41

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

42

Simplicity 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

43

Simplicity 2177522SM

SWITCH, Interlock

$49.99

$

In Stock, Qty 9

0

44

Simplicity 1930647

NUT, Pal
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1650360SM

QUADRANT
(Superseded to 1650360ASM)

$30.99

$

Usually ships in 2-12 days

0

46

Simplicity 2173335

PAD, Fuel Tank

$

$

Not available

47

Simplicity 1664460SM

FITTING, Gas Tank

$9.99

$

In Stock, Qty 20+

0

48

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

49

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

50

Simplicity 1687041SM

TANK ASSY, Fuel, Inc. Ref No's. 47, 49, 51, & 54

$190.99

$

Usually ships in 2-12 days

0

51

Simplicity 2154372

CLAMP, Hose

$

$

Not available

52

Simplicity 2171330SM

STRAP, Tank

$43.99

$

Usually ships in 2-12 days

0

53

Simplicity 2172744SM

STRAP, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

54

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

55

Simplicity 1651101

DECAL, Instrument Panel

$

$

Not available

56

Simplicity 1657090

DECAL, Ignition

$

$

Not available

57

Simplicity 1664244

DECAL, Throttle Control

$

$

Not available

58

Simplicity 1664240

DECAL, Hydrostatic Control

$

$

Not available

59

Simplicity 9287-03

NUT, Speed, Tinn.

$

$

Not available

60

Simplicity 2830561

SCREW, Hex Hd. Thd. Forming, No. 14 x 3/4

$

$

Not available

61

Simplicity 1656453

BRACKET, Cable

$

$

Not available

63

Simplicity 1930647

NUT-HEX Lock Pal .562-18
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

64

Simplicity 2178280SM

SWITCH, Key Assy.
(Superseded to 421064MA)

$32.99

$

In Stock, Qty 9

0

65

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

66

Simplicity 2832771

CLIP, Cable

$

$

Not available

67

Simplicity 1665236

WIRE ASSY. (Used only with Wiring Harness No. 1665239)

$

$

Not available

68

Simplicity 174702

WIRE ASSY. (Used only w/Wiring Harness No. 1665231)

$

$

Not available

80

Simplicity 2830222

CLIP, Wire

$

$

Not available

30

Simplicity 2823341SM

SCREW, Hex Cap, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

27

Simplicity 2823358

NUT, Lock. Hex, 1/4-20

$

$

Not available

28

Simplicity 921880

LOCKWASHER, Shakerproof, 1/4

$

$

Not available
