716 H (1690211) - AGCO Garden Tractor, 16hp (SN: 1001 - 2200) Electrical Group Parts Diagram

Garden Tractor, 16hp (SN: 1001 - 2200)

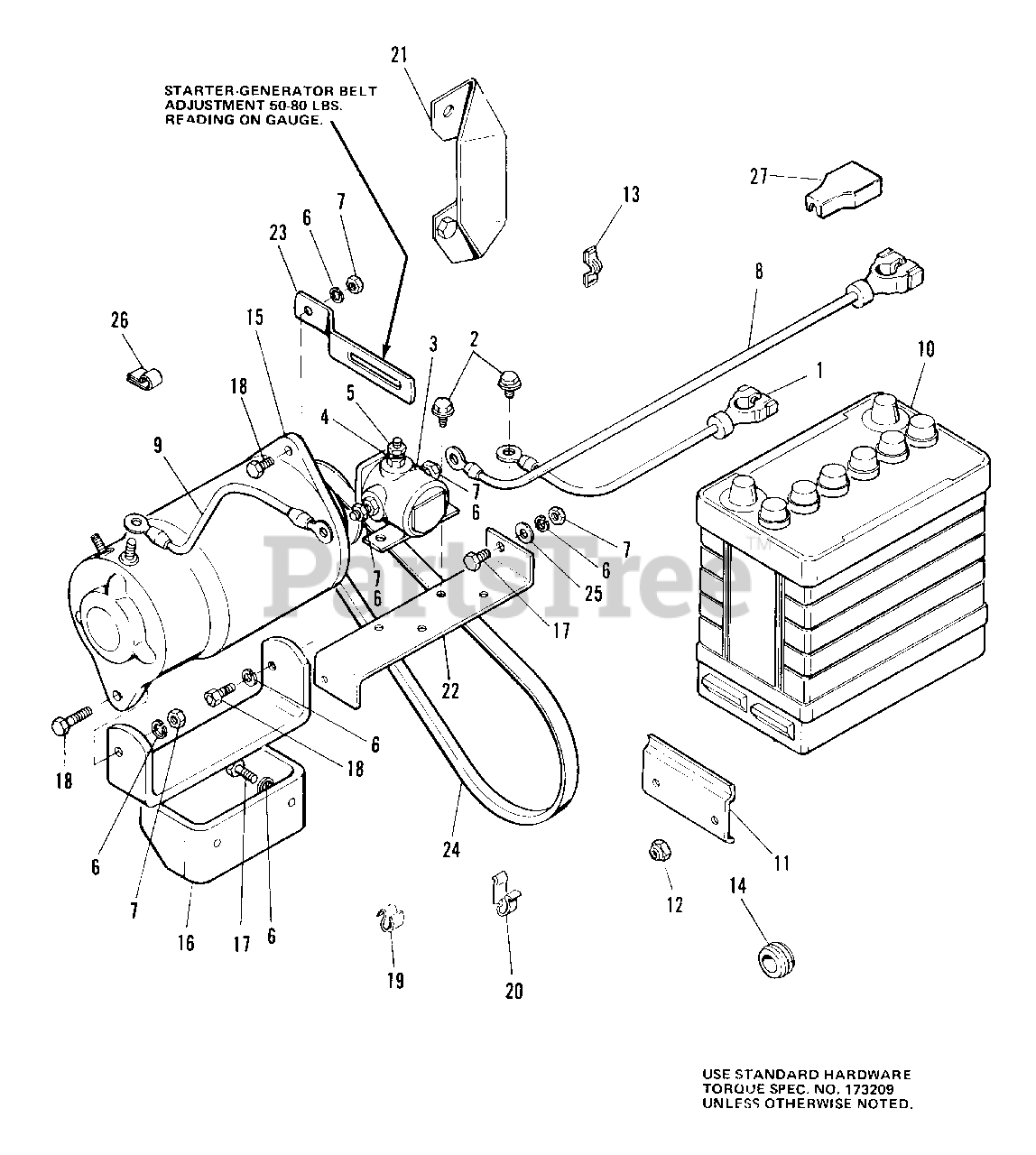

Electrical Group Parts Diagram

  • Title

1

Simplicity 2171811SM

CABLE, Battery to Ground

$

$

Not available

2

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

3

Simplicity 2122216SM

SOLENOID

$

$

Not available

4

Simplicity 2822711

LOCKWASHER, No. 10

$

$

Not available

5

Simplicity 2817415

NUT, Hex, No. 10-32

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1603197SM

CABLE, Battery to Solenoid

$24.99

$

Usually ships in 2-12 days

0

9

Simplicity 2122213

CABLE, Solenoid to Start

$

$

Not available

10

Simplicity 1685058SM

BATTERY

$

$

Not available

11

Simplicity 2171225SM

CLAMP

$10.99

$

In Stock, only 1 left!

0

12

Simplicity 2824433

NUT, Elastic, 5/16-18

$

$

Not available

13

Simplicity 176912

CLIP, Wire

$

$

Not available

14

Simplicity 2172175

GROMMET

$

$

Not available

15

Simplicity 122236

MOTOR, Generator

$

$

Not available

16

Simplicity 2157654SM

SUPPORT ASSEMBLY

$

$

Not available

17

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

18

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

19

Simplicity 2172434SM

CLIP, Tinnerman

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 2172436SM

CLIP, Tinnerman

$4.49

$

In Stock, only 3 left!

0

21

Simplicity 1655907

PULLEY GUARD ASSEMBLY

$

$

Not available

22

Simplicity 1656452

BRACKET

$

$

Not available

23

Simplicity 2157102SM

ARM, Adjusting

$

$

Not available

24

Simplicity 2157524SM

V-BELT, 39.12"

$26.99

$

In Stock, only 1 left!

0

25

Simplicity 2817642

WASHER, 5/16

$

$

Not available

26

Simplicity 2106786

CLIP, Cable

$

$

Not available

27

Simplicity 1713534SM

PROTECTOR, Terminal

$5.99

$

Usually ships in 2-12 days

0
