716 H (1690014) - AGCO Garden Tractor, 16hp 7016H TRANSMISSION Parts Diagram

Garden Tractor, 16hp

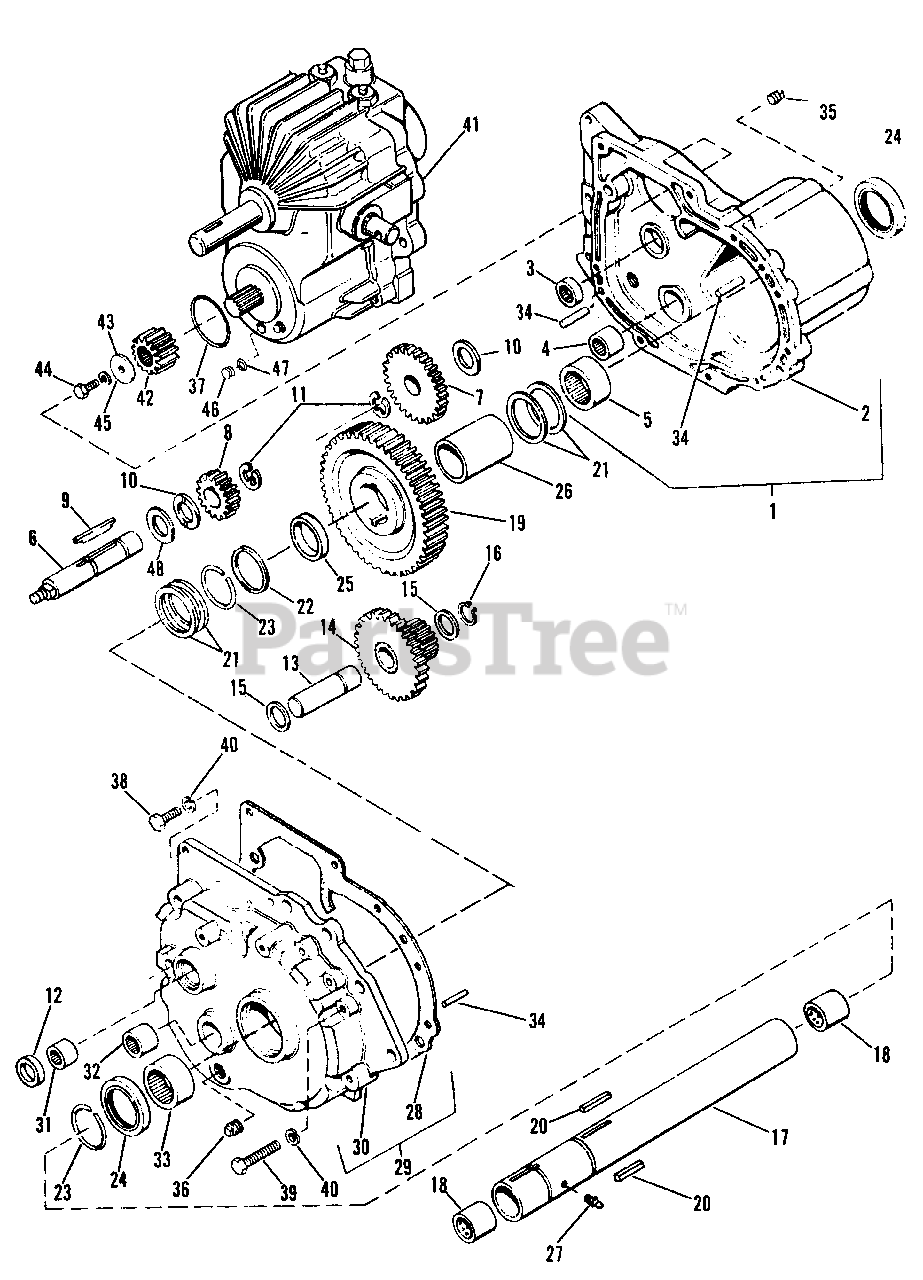

7016H TRANSMISSION Parts Diagram

  • Title

1

Simplicity 1650429SM

GEAR CASE, Complete (Includes 2-5)

$518.99

$

Usually ships in 2-12 days

0

2

Simplicity 1650429SM

GEAR CASE

$518.99

$

Usually ships in 2-12 days

0

3

Simplicity 2154271SM

BEARING, Needle

$

$

Not available

4

Simplicity 2166018SM

BEARING, Needle

$32.99

$

Usually ships in 2-12 days

0

5

Simplicity 2157519SM

BEARING, Needle

$

$

Not available

6

Simplicity 1650775SM

SHAFT, Brake

$51.99

$

Usually ships in 2-12 days

0

7

Simplicity 2166004SM

GEAR, 1st, Interm.

$87.99

$

Usually ships in 2-12 days

0

8

Simplicity 2176243SM

PINION, 1st, Interm.

$59.99

$

Usually ships in 2-12 days

0

9

Simplicity 2166014SM

KEY

$

$

Not available

10

Simplicity 2166013

WASHER

$

$

Not available

11

Simplicity 2176980SM

RETAINING, Ring

$2.99

$

In Stock, only 2 left!

0

12

Simplicity 2166021SM

SEAL, Oil

$

$

Not available

13

Simplicity 2166012SM

SHAFT, Interm.

$23.99

$

Usually ships in 2-12 days

0

14

Simplicity 2176236SM

PINION & SHAFT ASSEMBLY

$216.99

$

Usually ships in 2-12 days

0

15

Simplicity 2166016

WASHER

$

$

Not available

16

Simplicity 2166017SM

RING, Retaining

$1.99

$

Usually ships in 2-12 days

0

17

Simplicity 2166066

AXLE TUBE ASSEMBLY
(Superseded to 1670864SM)

$524.99

$

Usually ships in 2-12 days

0

18

Simplicity 2164224

BUSHING

$

$

Not available

19

Simplicity 2166006

GEAR, Drive

$

$

Not available

20

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 1 left!

0

21

Simplicity 2154097SM

WASHER

$

$

Not available

22

Simplicity 2166167

WASHER

$

$

Not available

23

Simplicity 2154268SM

RING, Snap

$7.49

$

In Stock, only 3 left!

0

24

Simplicity 2154269SM

SEAL

$

$

Not available

25

Simplicity 2166040SM

SPACER, R.H. Axle

$11.99

$

Usually ships in 2-12 days

0

26

Simplicity 2166041SM

SPACER, L.H. Axle

$31.99

$

Usually ships in 2-12 days

0

27

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 2166043SM

GASKET, Gear Case

$16.99

$

In Stock, Qty 7

0

29

Simplicity 1650427SM

COVER, Gear Case Complete (Includes 30-34)

$328.99

$

Usually ships in 2-12 days

0

30

Simplicity 1650427SM

COVER, Gear Case

$328.99

$

Usually ships in 2-12 days

0

31

Simplicity 2166019SM

BEARING, Needle

$26.99

$

Usually ships in 2-12 days

0

32

Simplicity 2166018SM

BEARING, Needle

$32.99

$

Usually ships in 2-12 days

0

33

Simplicity 2157519SM

BEARING, Needle

$

$

Not available

34

Simplicity 2818113

PIN, Roll

$

$

Not available

35

Simplicity 2801652SM

PLUG, Pipe

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 2801653

PLUG, Pipe

$

$

Not available

37

Simplicity 1651703SM

"O" RING

$5.49

$

In Stock, Qty 11

0

38

Simplicity 2816431

CAPSCREW, Hex, 5/16"-18 x 1" lg.

$

$

Not available

39

Simplicity 2819354

CAPSCREW, Hex, 5/16"-18 x 2" lg.

$

$

Not available

40

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 1650301

HYDROSTATIC PUMP & MOTOR UNIT

$

$

Not available

42

Simplicity 2166003SM

PINION, Motor Shaft

$106.99

$

Usually ships in 2-12 days

0

43

Simplicity 2123144

WASHER

$

$

Not available

44

Simplicity 2821515

CAPSCREW, Hex, 5/16"-18 x 3/4" lg.

$

$

Not available

45

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

46

Simplicity 1651705

PLUG.

$

$

Not available

47

Simplicity 1651704

"O" RING

$

$

Not available

48

Simplicity 1651078ASM

WASHER

$49.99

$

Usually ships in 2-12 days

0
