716 H (1690014) - AGCO Garden Tractor, 16hp 7016H BEVEL GEAR HOUSING Parts Diagram

Garden Tractor, 16hp

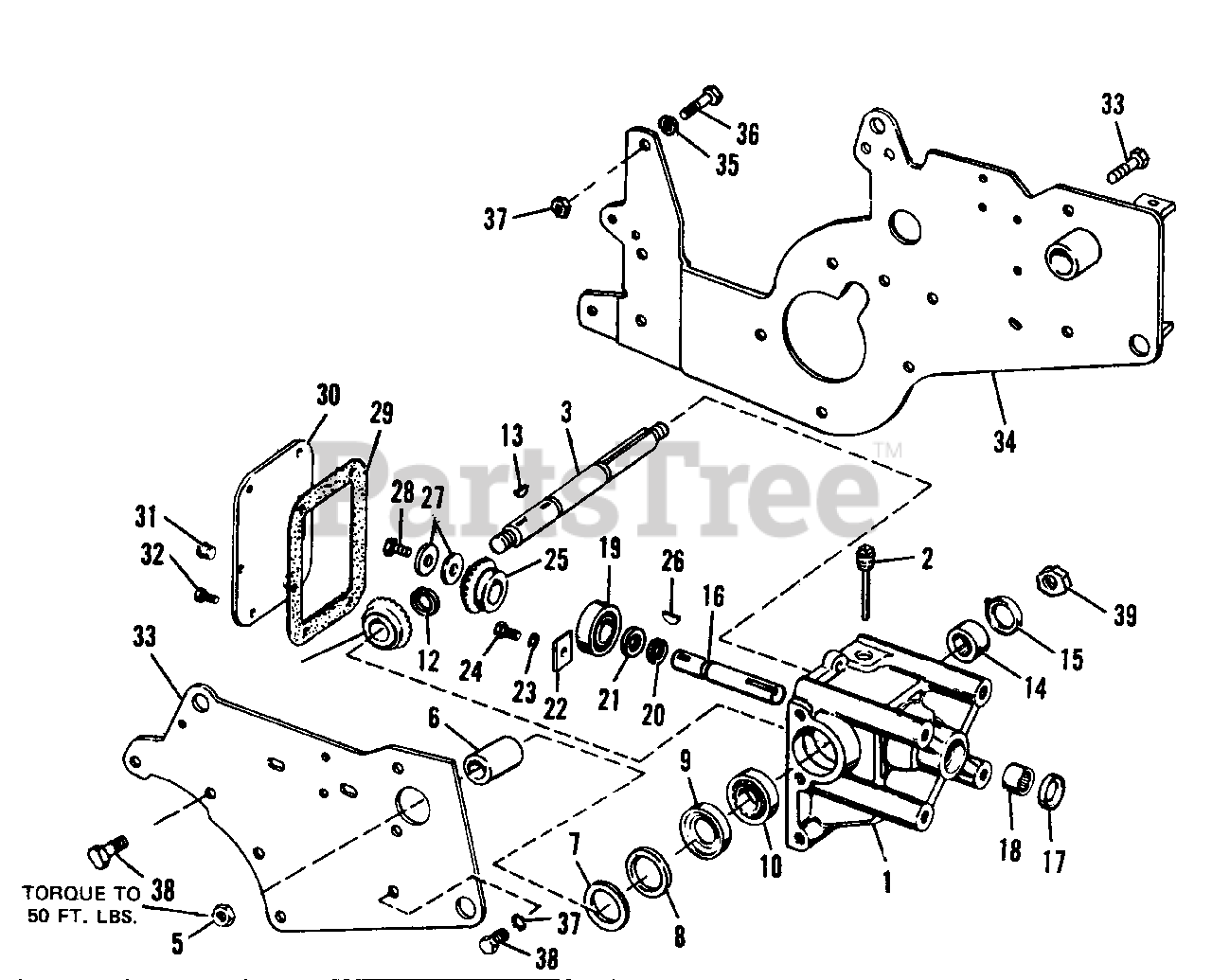

7016H BEVEL GEAR HOUSING Parts Diagram

  • Title

1

Simplicity 1656877SM

BEVEL GEAR, Housing

$359.99

$

In Stock, only 1 left!

0

2

Simplicity 2178105SM

PLUG ASSEMBLY, Filler

$32.99

$

Usually ships in 2-12 days

0

3

Simplicity 2173966

SHAFT, Driven

$

$

Not available

4

Simplicity 2154071

WASHER

$

$

Not available

5

Simplicity 2822133

NUT, Hex, Jam, 3/4"-16

$

$

Not available

6

Simplicity 2171792SM

SPACER, Pulley

$37.99

$

Usually ships in 2-12 days

0

7

Simplicity 2171790SM

SHIM (As Required)

$16.99

$

In Stock, only 4 left!

0

8

Simplicity 2171791SM

SHIM

$19.99

$

In Stock, only 1 left!

0

9

Simplicity 1685088SM

SEAL, Oil

$34.99

$

In Stock, only 2 left!

0

10

Simplicity 2172256SM

BEARING, Ball

$68.99

$

In Stock, only 4 left!

0

11

Simplicity 2171796SM

GEAR, Bevel, Driven

$262.99

$

Usually ships in 2-12 days

0

12

Simplicity 2172206SM

RETAINING, Ring

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2154279SM

BEARING, Needle

$35.99

$

Usually ships in 2-12 days

0

15

Simplicity 2118117SM

SEAL, Oil

$13.99

$

In Stock, Qty 20+

0

16

Simplicity 2172750SM

SHAFT, Driver

$

$

Not available

17

Simplicity 2118117SM

SEAL, Oil

$13.99

$

In Stock, Qty 20+

0

18

Simplicity 2154279SM

BEARING, Needle

$35.99

$

Usually ships in 2-12 days

0

19

Simplicity 2172256SM

BEARING, Ball

$68.99

$

In Stock, only 4 left!

0

20

Simplicity 2172206SM

RETAINING, Ring

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 2172753SM

WASHER

$10.99

$

Usually ships in 2-12 days

0

22

Simplicity 2154040SM

PLATE, Bearing, Clamp

$29.99

$

In Stock, only 1 left!

0

23

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 2819318

CAPSCREW, Hex, 5/16"-18 x 5/8" lg.

$

$

Not available

25

Simplicity 2172752SM

GEAR, Bevel, Driver

$271.99

$

In Stock, only 2 left!

0

26

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 2177649SM

WASHER

$9.49

$

In Stock, Qty 5

0

28

Simplicity 2154281

CAPSCREW, Hex, 5/16"-18 x 3/4" lg.

$

$

Not available

29

Simplicity 2154282SM

GASKET

$11.99

$

In Stock, only 1 left!

0

30

Simplicity 2178104

COVER

$

$

Not available

31

Simplicity 2801652SM

PLUG, Pipe

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 2830526

CAPSCREW, Hex, 1/4"-20 x 5/8" lg.

$

$

Not available

33

Simplicity 1650414SM

PLATE, Side, R.H.

$64.99

$

Usually ships in 2-12 days

0

34

Simplicity 178597

PLATE ASSEMBLY, Side, L.H.

$

$

Not available

35

Simplicity 2818199

LOCKWASHER, 7/16"

$

$

Not available

36

Simplicity 2820676SM

CAPSCREW, Hex, 7/16"-14 x 1" lg.

$4.49

$

In Stock, Qty 6

0

37

Simplicity 2818213

NUT, Hex, Full, 7/16"-14

$

$

Not available

38

Simplicity 2820677

CAPSCREW, Hex, 7/16"-14 x 1-1/4" lg.

$

$

Not available

39

Simplicity 930872

NUT, Jam, Lock

$

$

Not available
