715107 (71510700) - Gravely Mulch Kit for 40" Zoom (SN: 000101 & Above) 40" Baffles Parts Diagram

Mulch Kit for 40" Zoom

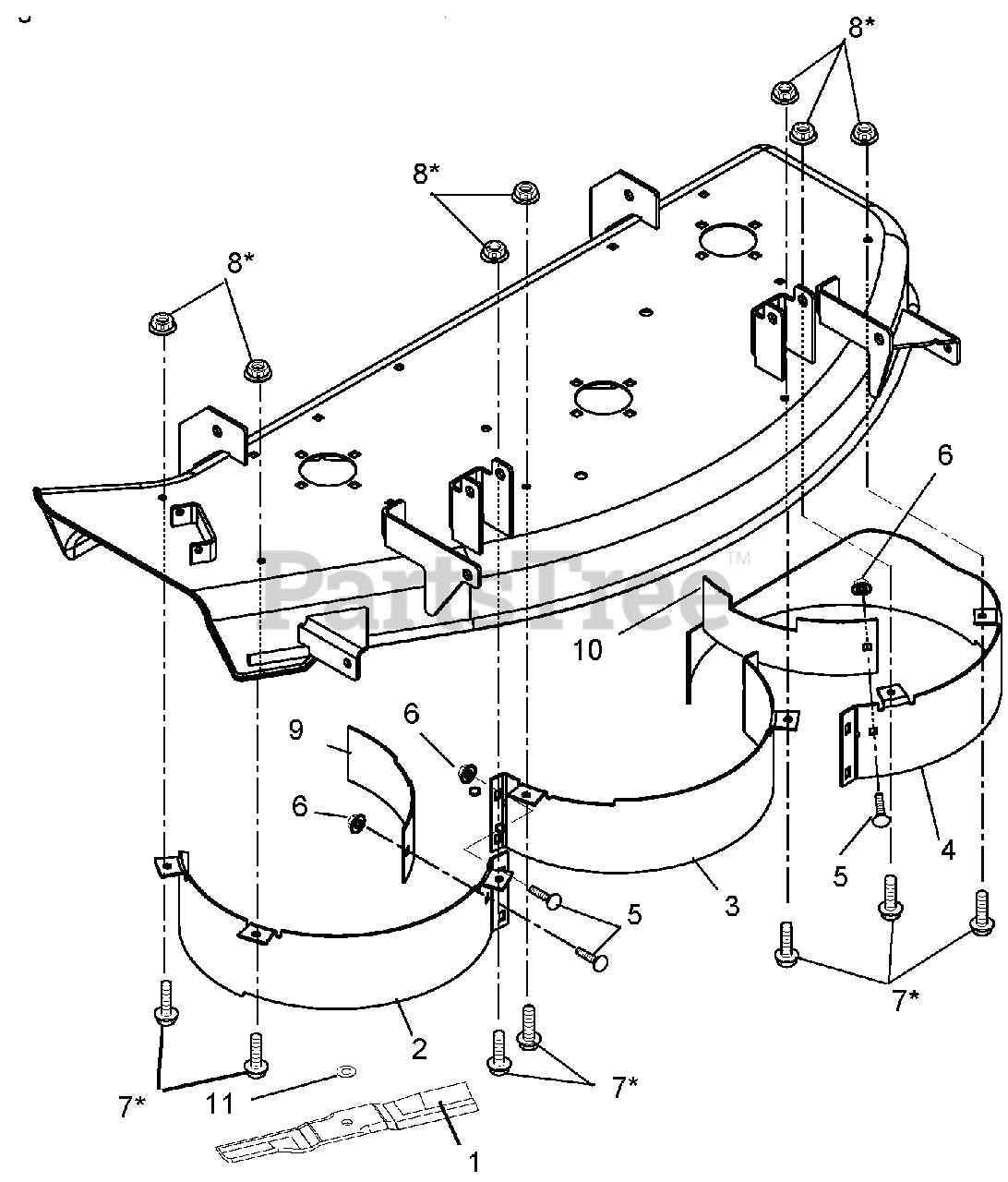

40" Baffles Parts Diagram

  • Title
1

Gravely 00272800

BLADE, MULCH 13.88

$26.99

$

In Stock, Qty 20+

0

2

Gravely 01288351

MULCH BAFFLE, 40" ZOOM RIGHT

$

$

Not available

3

Gravely 01288151

MULCH BAFFLE, 40" ZOOM CENTER

$

$

Not available

4

Gravely 01288251

MULCH BAFFLE, 40" ZOOM LEFT

$

$

Not available

5

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 01288451

BAFFLE, 40" ZOOM CHAMBER SEPAR

$

$

Not available

10

Gravely 01288651

SEPARATOR, 40" CHAMBER

$

$

Not available

11

Gravely 06442900

@WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0
