715044 - Gravely RER, ZT Sport Hood Kit Engine Hood Kit Parts Diagram

RER, ZT Sport Hood Kit

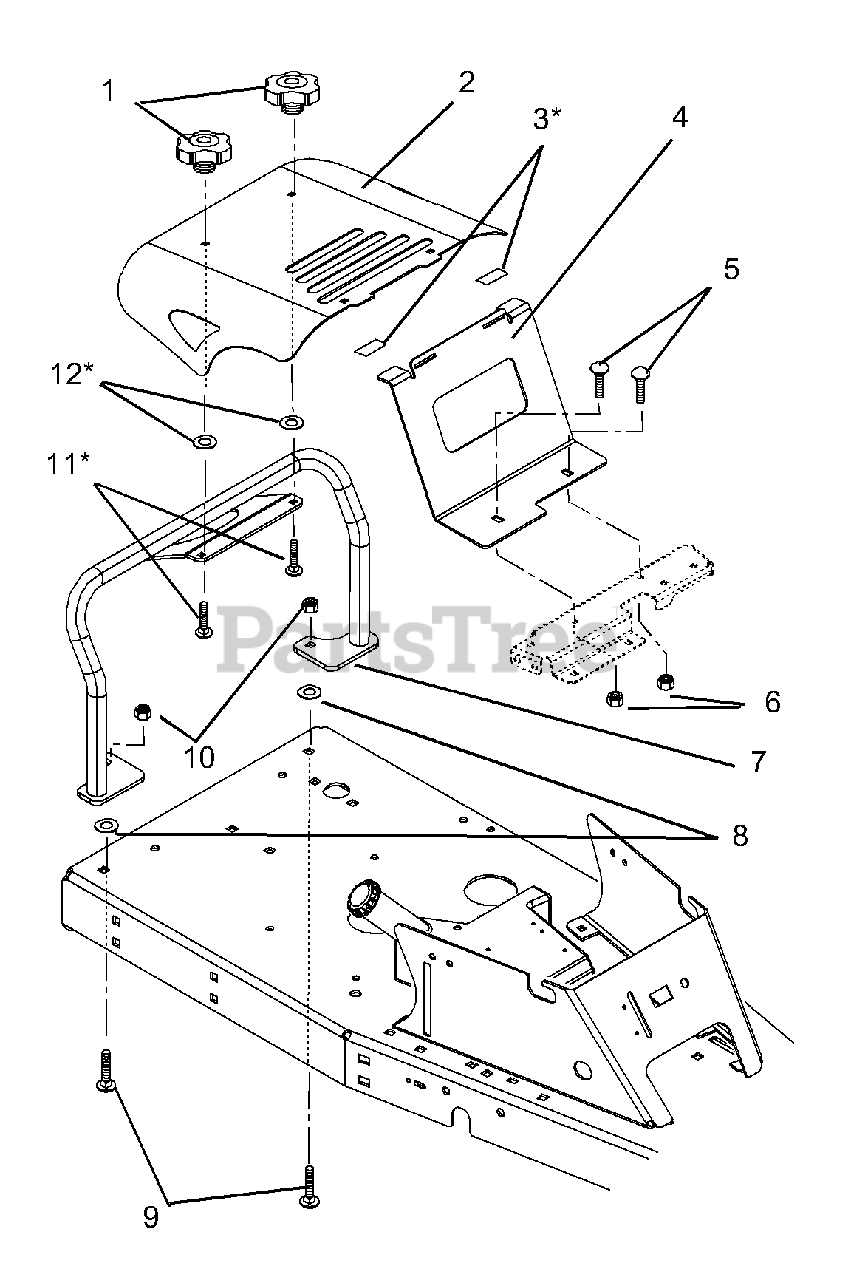

Engine Hood Kit Parts Diagram

  • Title

1

Gravely 07534800

Clamping Knob

$3.49

$

In Stock, Qty 20+

0

2

Gravely 02771459

Engine Hood
(Superseded to 71504300)

Note: Kit number 71504300.

$

$

Not available

2

Gravely 02771453

Engine Hood

Note: Kit number 71504400.

$

$

Not available

3

Gravely 00928300

Foam Tape

Note: Items come pre-assembled.

$

$

Not available

4

Gravely 02771551

Hood Support Bracket

$

$

Not available

5

Gravely 06226700

5/16" x 3/4" Round Head Square Neck Bolt
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06545400

5/16" Flange Nylon Locknut
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 02771651

Weldment Tube

$

$

Not available

8

Gravely 00548400

3/8" Push Nut

$1.49

$

In Stock, only 2 left!

0

9

Gravely 06212000

3/8" x 1" Round Head Square Neck Bolt
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545500

3/8" Flange Nylon Locknut
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06221800

5/16" x 1" Round Head Short Square Neck Bolt
(Superseded to 06200237)

Note: Items come pre-assembled.

$2.49

$

In Stock, only 3 left!

0

12

Gravely 06514900

5/16" Push Nut

Note: Items come pre-assembled.

$0.99

$

In Stock, Qty 20+

0

Gravely 71504300

Engine Hood Kit

$

$

Not available

Gravely 71504400

Engine Hood Kit

$

$

Not available
