715041 - Gravely Light Kit ZT Series Zoom Light Kit Parts Diagram

Light Kit ZT Series

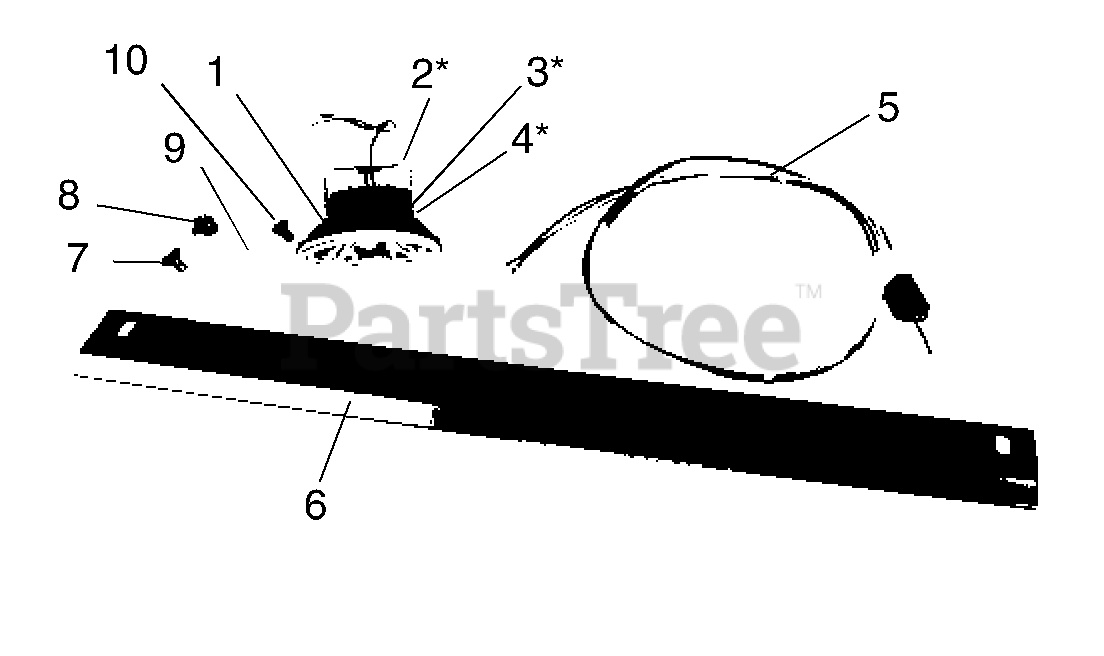

Zoom Light Kit Parts Diagram

  • Title
1

Gravely 71504100

Kit - Zoom LITE

$

$

Not available

2

Gravely 01603100

Light Bracket Weldment

Note: Assembled to item 1.

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 06311200

4 mm x 1 mm Regular Cone Lock Washer

Note: Assembled to item 1.

$

$

Not available

4

Gravely 05980400

4 mm x .07 mm x 8 mm Socket Head Cap Screw

Note: Assembled to item 1.

$1.99

$

In Stock, only 2 left!

0

5

Gravely 01587900

Light Harness

$

$

Not available

6

Gravely 01589951

Harness Bracket

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 06226700

5/16"-18 x 3/4" Round Head Square Neck Bolt
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06544400

5/16"-18 Black Zinc Top Locking Flange Nut
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06308600

5/16" x 5/64" Lock Washer
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07008100

5/16"-18 x 1/2" Grade 5 Button Head Cap Screw

$

$

Not available
