71504 - Toro 48" GrandStand Stand-On Mower (SN: 410000000 - 412799999) Carbon Canister Assembly Parts Diagram

48" GrandStand Stand-On Mower

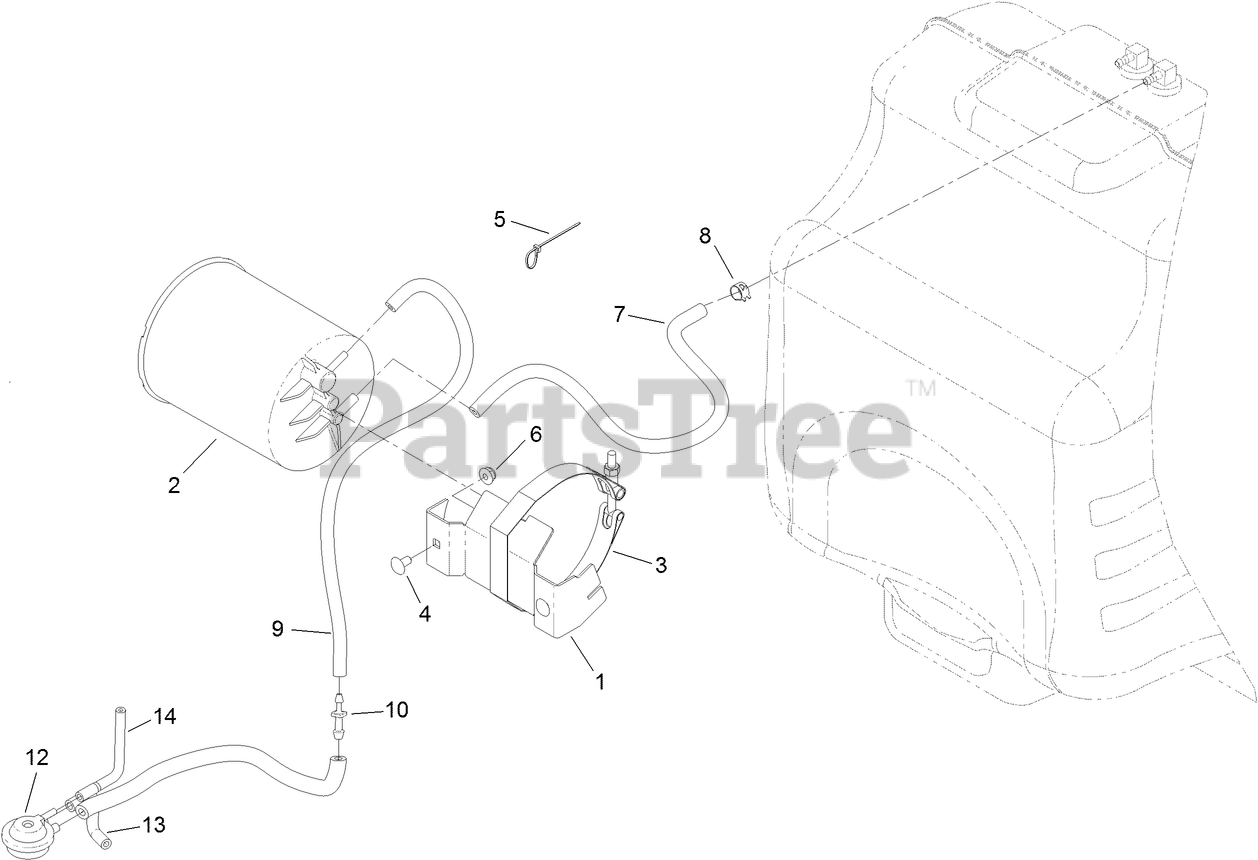

Carbon Canister Assembly Parts Diagram

  • Title

1

Toro 126-2582

BRACKET-CANISTER

$

$

Currently unavailable

2

Toro 116-1442

CANISTER-CARBON, 1200CC

$160.99

$

Usually ships in 3-6 days

0

3

Toro 116-2228

CLAMP, T-BOLT

$46.99

$

Usually ships in 3-6 days

0

4

Toro 116-5611

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

5

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 110-8751

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

8

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Toro 116-4801

HOSE-EMISSIONS

$8.49

$

Usually ships in 3-6 days

0

10

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0

12

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

13

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

14

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0
